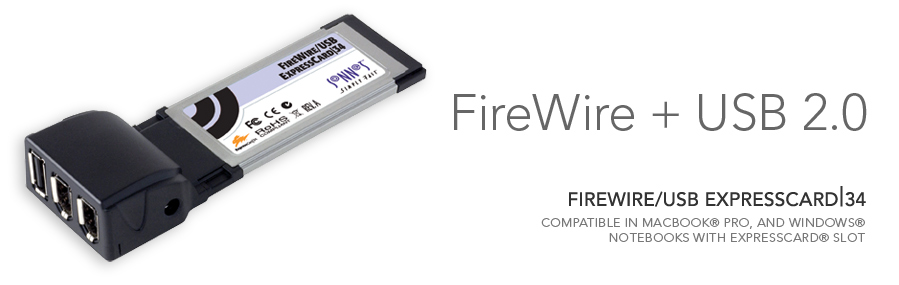

4-Port USB 2.0 ExpressCard/34 Computer Card

More Ports for Peripherals

Peripherals Connected to FireWire/USB ExpressCard/34 Today’s notebook computers are small and powerful, but when it comes to connecting accessories, they’re limited. They have at least one or two USB ports, and some have a FireWire® port, but most don’t have enough places to plug in all your peripherals. Everybody’s got gadgets with USB or FireWire connectors—iPod® mobile digital devices, DV camcorders, digital cameras, external drives, printers, keyboards, mice, scanners, to name a few—wouldn’t it be nice to plug in more than one at a time? Pop Sonnet’s FireWire/USB ExpressCard/34 into your computer’s ExpressCard slot to instantly add the USB 2.0 and FireWire 400 ports you need!

Sonnet's FireWire/USB ExpressCard/34 features one USB 2.0 and two FireWire 400 ports, each port offering full-bandwidth data throughput, so there is no performance penalty when you add ports as you add devices. This card works in ExpressCard/34 and ExpressCard/54 slots, and features hot-pluggable and hot-swappable device connection with automatic device configuration.

Add 1 USB and 2 FireWire Ports Instantly!

1 USB and 2 FireWire Ports

Sonnet's FireWire/USB ExpressCard/34 easily adds one USB and two FireWire 400 portsto your Mac or PC. Simply plug the card into your notebook's ExpressCard slot and instantly get access to more ports!

Key Features

Simple way to add more full-bandwidth USB 2.0 and FireWire 400 ports to any compatible computer

Plug and play—no drivers to install

Supports simultaneous low-, full-, and hi-speed device connections. Maximizes performance for each port

Provides fast interface to download videos from your digital camcorder, transfers files to external drives, and more

Supports hot-swappable device connection. Plug in and disconnect peripherals without shutting off your computer

Compatible with Sonnet's Echo ExpressCard/34 Thunderbolt Adapter

Thunderbolt Compatible with Echo ExpressCard/34 A

Power your Fusion F2, or FireWire bus-powered drives connected to both ports of your Sonnet FireWire 800 Pro ExpressCard/34 or FireWire/USB ExpressCard/34 adapters with Sonnet's World Travel Power Adapter.

Part No.
FWUSB2-E34	Discontinued
Hardware
Warranty	1-year
Form Factor	ExpressCard/34 computer card
RoHS Compliant	Yes
Bus Interface	ExpressCard/34
Number of Ports	FireWire 400: 2 external, USB 2.0: 1 external
RoHS Compliant	Yes
Packaging Contents	FireWire/USB ExpressCard/34 Computer Card Documentation
FireWire Support
Standard	IEEE 1394A compliant
Cables Supported	6-pin male FireWire 400 cables
Peripherals Supported	Supports all industry standard FireWire 400 peripherals
Data Transfer Rates	400/200/100 MBits/s
Number of Devices Supported	Up to 63 (data only)
Hot Plug	Supports hot-pluggable and hot swappable device connection
Target Disk Mode	Not supported
Chipset	TI
USB Support
Standard	USB Specification v. 1.0/1.1/2.0 compatible. Complies with OHCI (Open Host Controller Interface) and EHCI (Enhanced Host Controller Interface)
Cables Supported	USB 2.0 with Standard-A male connector
Peripherals Supported	Supports all industry standard USB 2.0/1.1 peripherals
Data Transfer Rates	480/12 Mbits/s
Number of Devices Supported	Up to 127
Hot Plug	Supports hot-pluggable and hot swappable device connection
Specifications subject to change without notice.

Mac Compatibility

MacBook® Pro (with an ExpressCard slot)

OS X® 10.5.8+

macOS Sierra compatible

Technical Notes

PC notebook (with an ExpressCard slot)

Windows® 10, 8, 7, Vista®, XP SP2

USB 2.0 Logo ExpressCard/34 Logo

Product	Part No.	Description

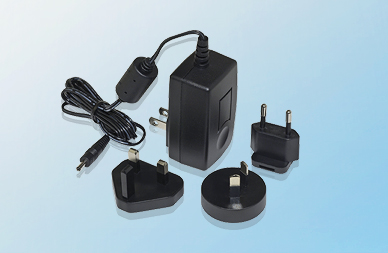

World Travel Power Adapter	PWR-UAC-12V	World Travel Power Adapter (12V, 1.25A) for select compatible Sonnet products
ExpressCard/34 to 54 Stabilizer	E34-E54-BK	Brace for stabilizing an ExpressCard/34 adapter card in an ExpressCard/54 slot
