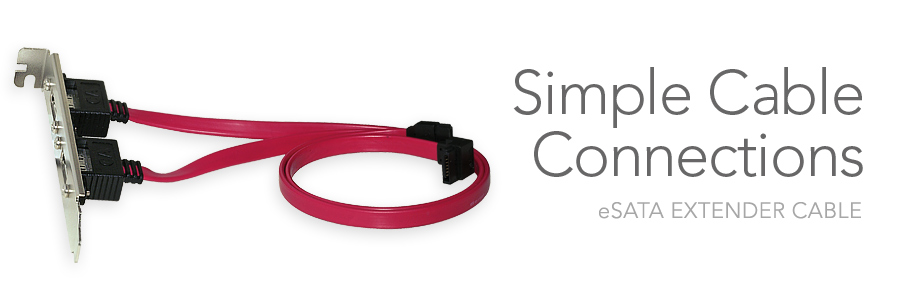

eSATA Extender Cable- Simple Cable Connections
Buy from Sonnet Buy from Distributor/Reseller
Products & Solutions
Key Benefits

Adds two eSATA ports to your Mac Pro or PC with motherboard SATA

Enables you to connect up to two external hard drives using the eSATA interface for faster performance than FireWire or USB 2.0

Connects to your computer’s logic board; does not impact its PCI Express bus configuration or performance

Compatibility

Mac Pro (2006)

Mac Pro (Early 2008)

PC with motherboard SATA

Technical Specifications

Part No.

Package Contents

15" SATA data cables with two eSATA connectors and two SATA connectors, illustrated installation instructions

Warranty

1-year limited warranty

Specifications subject to change without notice.



Mac OS LogoFor Windows LogoFor RoHS

Exploit the Potential!
When it comes to supporting additional storage capacity, Mac Pro computers(1) have hidden potential—it's behind the fan assembly. Two extra SATA connectors sit on the logic board, just out of view and ready for you to connect more drives. Unfortunately, there’s no easy way to install additional drives inside the Mac Pro—fortunately, that doesn’t matter. Many PCs also have unused motherboard SATA connectors. Sonnet’s eSATA Extender Cable enables you to connect two external hard drives to the unused SATA ports on your computer’s logic board and take full advantage of its built-in storage capabilities.

Sonnet’s eSATA Extender Cable simply plugs into the your computer's spare SATA connectors and extends them to the back, where you can easily connect up to two external hard drives(2). Because you’ll be connecting the drives via eSATA, you’ll experience the best performance possible, with data transfers up to twice as fast as FireWire®! Since the eSATA Extender Cable is not a host adapter card, it’s a great solution for power users needing all their computer's PCI Express bus bandwidth for other interface cards. Operation is plug-and-play, and detailed installation instructions are included for original Mac Pro computers as well as the latest (early 2008) models.

Technical Notes:
(1) Not compatible in Mac Pro (Early 2009).

(2) Mac Pro and Windows motherboard SATA neither supports drive enclosures with port multipliers, nor the capability to hot-swap drives.

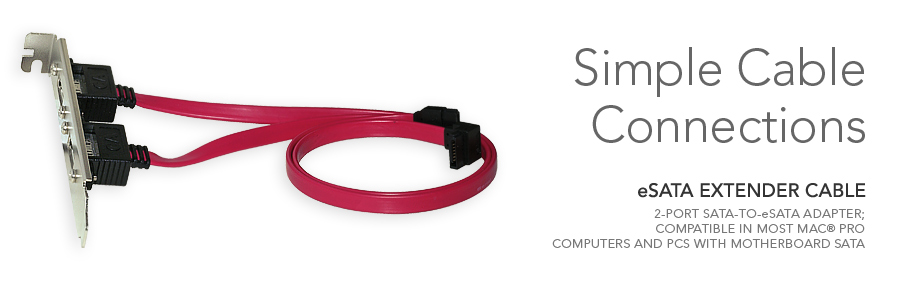

2-Port SATA-toESATA Adapter; Compatible in Mac Pro Computers and PCs with Motherboard SATA

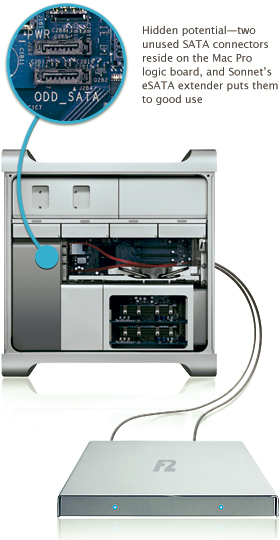

eSATA Extender Cable installed in Mac Pro with F2.
Sonnet’s eSATA Extender Cable supports up to two external drives, and works great with Sonnet’s Fusion™ F2 portable 2-drive RAID SATA storage system with eSATA interface
