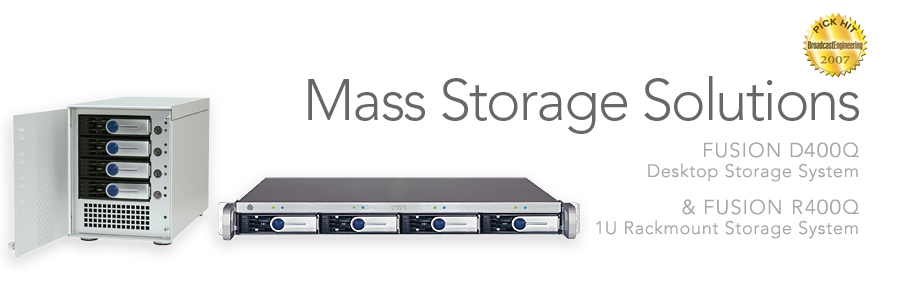

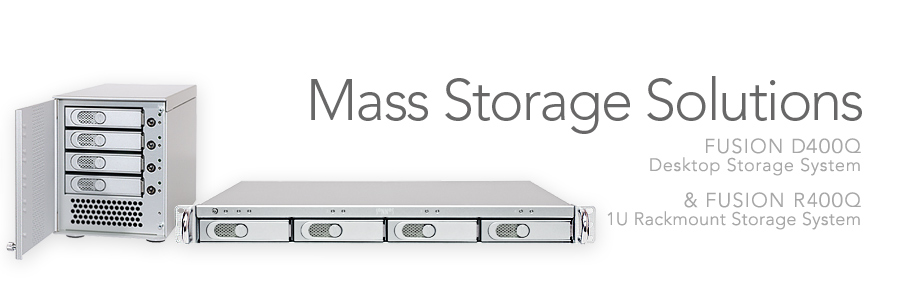

Multiple Drives, No Compromise

Digital content creation and editing requires more speed and space than standard desktop drives are capable—why limit yourself to a single drive? Sonnet’s award-winning Fusion™ D400Q desktop and R400Q rackmount storage systems (except 0TB models) provide up to 8TB(1) of storage in four swappable drive modules, and four ways to connect them to your computer. They offer speed, versatility, and reliability—they’re great solutions for anyone looking for an affordable storage system that will fit into a variety of workflows.

One Cable, All the Data

Fusion D400Q and R400Q enclosures employ a high performance SATA II port multiplier to manage the enclosed drives—just a single locking data cable connects the enclosure to a SATA host controller card. This efficient interface simplifies setup and cuts cable clutter without compromising performance. No SATA? No problem—connected via a single FireWire® 800, FireWire 400, or USB cable, all four drives can be accessed at the full speed of the respective interface. There is no need to reformat drives when changing from one interface to another, regardless the configuration.

Maximum Performance,
Maximum Convenience
Connected to a Sonnet Tempo™ SATA E4P PCIe or X4P PCI-X host controller installed in a Mac® or Windows® computer, a Fusion D400Q or R400Q system’s drives can be accessed through its port multiplier(2) at maximum speed, whether configured as a RAID 0, 1, 10, or JBOD set. With its drives configured as a RAID 0 striped set, a single Fusion D400Q or R400Q system achieves data throughput of 220MB/sec, fast enough to support multiple streams of DV, HDV, DVCPRO, ProRes 422, or a single stream of uncompressed 10-bit NTSC video. Do you want even more performance? Up to four Fusion D400Q or R400Q systems can be ganged on a single Tempo SATA E4P or X4P controller for enhanced data throughput and double, triple, or even quadruple the available streams (as well as increasing the number of supported video formats).

Driving Force

Fusion storage systems (except 0TB models) employ Enterprise/RAID Edition hard drives or select, Sonnet certified desktop drives(3) that have been selected for their superior performance, error handling, and reliability characteristics, especially when used in RAID groups. These drives are subjected to hours of additional, stringent testing to check for soft errors, vibration, and other reliability predictors. Just the sturdiest drives pass these tests and are prepared with special RAID-optimized firmware to become the building blocks of a super-reliable Fusion storage system.

Versatile Performance

These systems are ideal for use in mixed environments—various operating systems, editing applications and output demands requiring the flexibility and interoperability that Fusion D400Q and R400Q storage systems provide. Fusion storage systems support Mac OS® X, Windows Vista, Windows XP, and Linux. They are compatible with capture cards from AJA, Blackmagic Design, Matrox, and Bluefish444, and work with all mainstream video editing applications including Apple® Final Cut Pro®, and Adobe® Premiere® Pro CS4.

Desktop or Rackmount

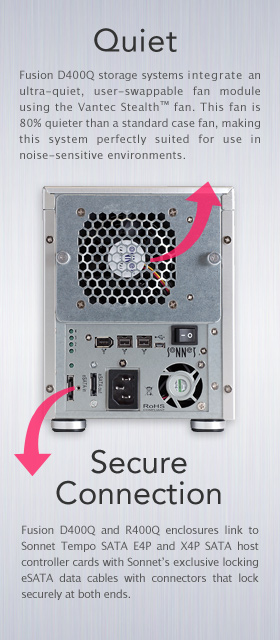

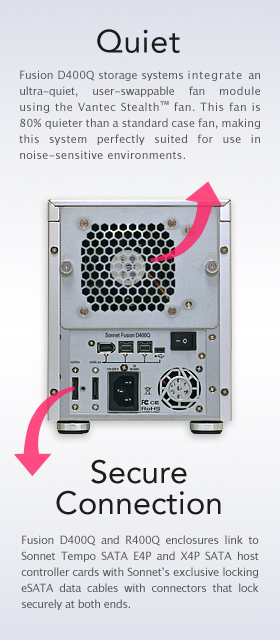

To keep things cool, the Fusion D400Q uses a swappable fan module. The fan is 80% quieter than a standard case fan, making this system perfectly suited for use in noise-sensitive environments. The 1U rackmount Fusion R400Q system enclosure, at just 1.75" tall, is simple to deploy in most server racks. Both systems feature drive presence and drive activity LED indicators on their front panels, so drive status can be determined at a glance.

Expandability to Start

Looking for a desktop or rackmount 4-drive, removable storage system to expand with your needs? Fusion D400Q-0TB and R400Q-0TB storage systems offer the same great features as Sonnet’s other D400Q and R400Q models, but without the hard drives(3). Of course performance, capacity, and RAID reliability are dependent on drive choice.

4-Drive SATA Storage System with Quad Interface

Reviews & Case Studies


Server Room

Fusion R400Q storage systems are easy to configure, and are well suited for use in managing daily backups

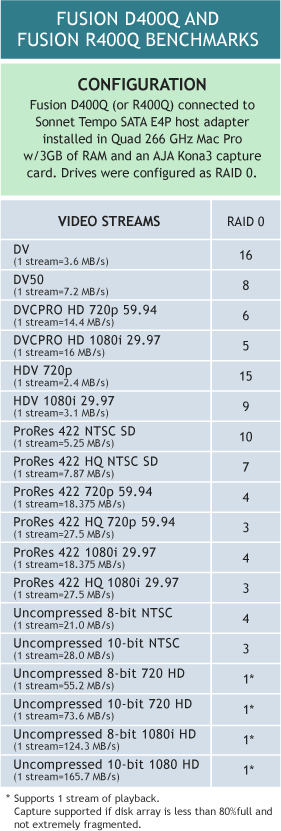

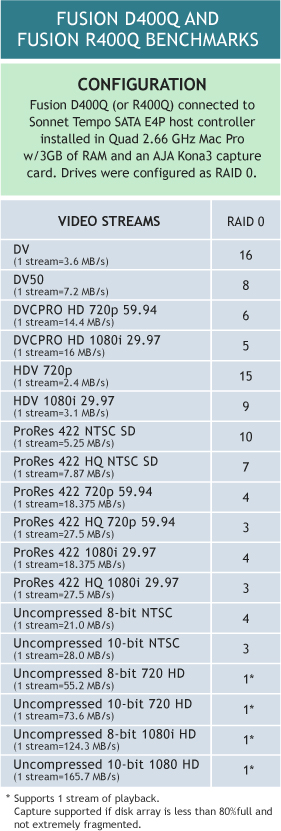

Fusion D400Q and R400Q Benchmarks


Quiet Fans. Secure Connection.
Technical Notes:
(1) Although most hard drive manufacturers define 1 gigabyte as 1,000,000,000 byte, the computer operating systems usually calculate a gigabyte by dividing the bytes (whether it is disk capacity, file size, or system RAM) by 1,073,741,824 (). This distinction may be a cause of confusion, as a hard disk with a manufacturer rating of 500GB may have its capacity reported by the operating system as 454.7GB.

(2) When connected to a computer via its eSATA interface, Fusion D400Q and R400Q storage systems require a SATA host controller that supports port multipliers, such as Sonnet's Tempo SATA E4P for computers with PCI Express slots, Tempo SATA X4P for computers with PCI-X slots, or Tempo SATA Pro ExpressCard/34 or Tempo SATA ExpressCard/34 for portable computers with an ExpressCard slot.

(3) Sonnet Technologies has qualified and specifies the hard drives listed here for use in Fusion D400Q and R400Q storage systems. These drives were chosen for their superior performance, error handling, and reliability characteristics, especially when used in RAID groups. Sonnet recommends the use of these Enterprise/RAID edition hard drives and select, Sonnet certified desktop hard drives in your Fusion storage system to ensure system reliability and performance. STANDARD DRIVES MAY NOT BE SUPPORTED AND MAY DEGRADE SYSTEM RELIABILITY AND PERFORMANCE.

500GB Models
• Hitachi Deskstar E7K500, # HDS725050KLA360
• Hitachi Ultrastar A7K1000, # HUA721050KLA330
• Maxtor MaXLine Pro 500, # 7H500F0
• Samsung Spinpoint F RAID, # HE502IJ
• Seagate Barracuda ES, # ST3500630NS
• Seagate Barracuda ES.2, # ST3500320NS(5)
• Western Digital RE3 Enterprise, # WD5002ABYS

750GB Models
• Hitachi Ultrastar A7K1000, # HUA721075KLA330
• Samsung Spinpoint F RAID, # HE753LJ
• Seagate Barracuda ES, # ST3750640NS
• Seagate Barracuda ES.2, # ST3750330NS(5)
• Western Digital, RE3 Enterprise, # WD7502ABYS

1TB Models
• Hitachi Ultrastar A7K1000, # HUA721010KLA330
• Samsung Spinpoint F RAID, # HE103UJ
• Seagate Barracuda ES.2, # ST31000340NS(5)
• Western Digital, RE3 Enterprise, # WD1002FBYS

1.5TB Models
• Seagate Barracuda 7200.11, # ST31500341AS(6)
(4)Creating RAID volumes under Windows requires dynamic disk storage, a formatting option available with Windows Server 2003 SP1, Windows XP Professional (32- and 64-bit versions), or Windows Vista Enterprise or Ultimate (32- and 64-bit versions). In order to create RAID volumes larger than 2TB, you must do one of the following: Concatenate (link together in a virtual chain) the volumes, and then format them as NTFS. -OR- Use GPT formatting. Note that drives and volumes with GPT formatting are not visible to any version of Windows XP Professional, nor to the 32-bit version of Windows Server 2003 SP1.

(5) Barracuda ES.2 drives may be used with revision J (April 9, 2008) and later versions of Fusion D400Q and all versions of Fusion R400Q, but only Seagate ES.2 drives with firmware versions SN06 and newer compatible. Seagate ES.2 drives with firmware versions SN03, SN04, or SN05 are NOT compatible. Click here to view location of firmware number on hard drive.

(6) Only Seagate Barracuda 7200.11 1.5TB drives with firmware versions SD1B and CC1H are compatible.


About stream count testing:
We've conducted in-depth, real-world testing to provide you with realistic results. Testing was conducted after weeks of use, during which time projects were captured, parts deleted, more parts captured, rendered, and so on, leaving the drives 85% full and fragmented. The stream counts we present here reflect the reduced performance that results from day-in, day-out use. Many storage systems work well the day you get them, but the true test is whether one will continue to serve you when you push the envelope. Fusion storage systems won't let you down.

Key Features

eSATA, FireWire 800, FireWire 400, and USB 2.0 interfaces

Single cable to host connectivity through an integrated port multiplier for all interfaces

0TB, 2TB, 4TB, 6TB, or 8TB configurations(1)

Up to 220 MB/sec transfer rate through eSATA interface (configured as RAID 0)

Drive Activity, Drive Presence, and Power LED indicators

Quiet fans

eSATA, FireWire 800, FireWire 400 and USB cables included

Compatible with Sonnet Tempo™ SATA II PCI-X, PCIe, and ExpressCard/34 host controllers

RoHS compliant


Fusion Enclosure Back Panel
Quad Interface

OS Compatibility

Platform independent—Mac, Windows(4), and Linux

Capture Card Compatibility

AJA, Blackmagic Design, Matrox, and Bluefish444

Video Editing Application Compatibility

Apple Final Cut Pro, Adobe Premiere Pro

Technical Specifications

Part No.
FUS-D4Q-0TB
(Fusion D400Q-0TB, Sold Out)
FUS-D4Q-2TB
(Fusion D400Q-2TB, Sold Out)
FUS-D4Q-4TB
(Fusion D400Q-4TB, Sold Out)
FUS-D4Q-6TB
(Fusion D400Q-6TB, Sold Out)
FUS-D4Q-8TB
(Fusion D400Q-8TB, Sold Out)
FUS-R4Q-0TB
(Fusion R400Q-0TB, Sold Out)
FUS-R4Q-2TB
(Fusion R400Q-2TB, Sold Out)
FUS-R4Q-4TB
(Fusion R400Q-4TB, Sold Out)
FUS-R4Q-6TB
(Fusion R400Q-6TB, Sold Out)
FUS-R4Q-8TB
(Fusion R400Q-8TB, Sold Out)

Refurbished units with
new drives at 25% discount

Part No.
FUS-D4Q-0TB-RF (Fusion D400Q-0TB)
FUS-D4Q-2TB-RF (Fusion D400Q-2TB)
FUS-D4Q-4TB-RF (Fusion D400Q-4TB)
FUS-D4Q-6TB-RF (Fusion D400Q-6TB)
FUS-D4Q-8TB-RF (Fusion D400Q-8TB)

Hardware

Warranty

2-year

HDD Warranty

Additional 1-year or 3-year, administered by drive manufacturer

External Connectors

eSATA, 2 x FireWire 800, FireWire 400, Mini-USB

Drives Supported

1.5 & 3 Gb per second Serial ATA; up to 7,200 RPM

Data Transfer Speed

Up to 220 MB/s, depending on interface used and configuration

Supported Video Formats

Uncompressed 10-bit NTSC HD, DV, HDV, DVCPRO, and uncompressed SD

Power Supply

Universal 180W, 100–240V AC, 50–60Hz

Operating Temperature
(D400Q)

+32º F to +95º F (0º C to +35º C)

Operating Temperature
(R400Q)

+32º F to +95º F (0º C to +35º C)

Dimensions (D400Q)

5.9 x 11.2 x 7.5 in (14.9 x 28.5 x 19.0 cm)

Dimensions (R400Q)

17.0 x 16.5 x 1.75 in (43.8 x 41.9 x 4.4 cm)

Weight (D400Q)

17 lbs (7.7 kg) with drives, 10.8 lbs (4.9 kg) without

Weight (R400Q)

21.2 lbs (9.6 kg) with drives, 15 lbs (6.8 kg) without

Package Contents
(D400Q)

Desktop disk enclosure, four 3.5" drive modules or drive trays, two eSATA cables, one FireWire 800 cable, one FireWire 400 cable, one USB cable, power cord, drive module keys, User’s Guide

Package Contents
(R400Q)

Rackmount disk enclosure, four 3.5" drive modules or drive trays, two eSATA cables, one FireWire 800 cable, one FireWire 400 cable, one USB cable, power cord, User’s Guide

Accessories

Fusion 500GB RAID Drive Module - Spare drive module for Fusion D400Q/R400Q

Part No.

FUS-RM-0500GB

Fusion 750GB RAID Drive Module - Spare drive module for Fusion D400Q/R400Q

Part No.

FUS-RM-0750GB

Fusion 1TB RAID Drive Module - Spare drive module for Fusion D400Q/R400Q

Part No.

FUS-RM-1000GB

Fusion 1.5TB RAID Drive Module - Spare drive module for Fusion D400Q/R400Q

Part No.

FUS-RM-1500GB

Fusion 2TB RAID Drive Module - Spare drive module for Fusion D400Q/R400Q

Part No.

FUS-RM-2000GB

Fusion Quiet Fan Module - Spare fan module for Fusion D400Q

Part No.

FUS-XFAN

Rack Mount Sliding Rail Kit for Fusion R400Q (17.5-21" rack)

Part No.

FUS-RSS-P

Rack Mount Sliding Rail Kit for Fusion R400Q (23-26.5" rack)

Part No.

FUS-RSS-S

Rack Mount Sliding Rail Kit for Fusion R400Q (27-30.5" rack)

Part No.

FUS-RSS

Rack Mount Sliding Rail Kit for Fusion R400Q (29-32.5" rack)

Part No.

FUS-RSS-L

Specifications subject to change without notice.
