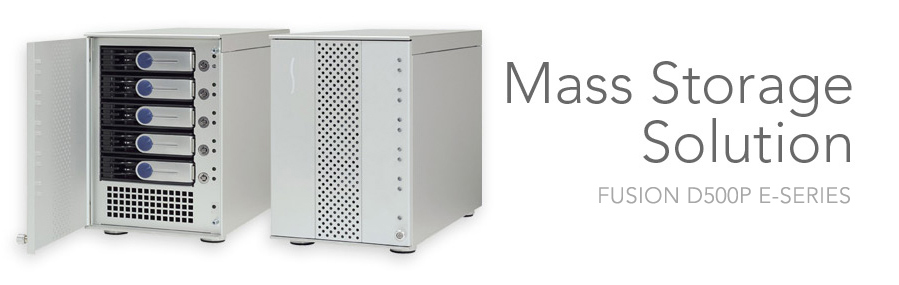

E-series for Expandability
Looking for desktop, 5-drive, removable storage system to expand with your needs? Sonnet's Fusion D500P E-series offers the same great features as the Fusion D500P but without the hard drives for customer configuration⁽¹⁾. Performance, capacity, and RAID reliability is dependent on drive choice.

HD SATAsfaction!
Today’s digital content creation and editing require more speed and space than anybody would have imagined just a few, short years ago—now, storage needs are spoken of in terabytes instead of gigabytes. FireWire drives used to be the storage solution of choice for users on a limited budget, but they don’t offer enough performance for all but the most basic needs, and high-end SCSI storage systems are out of reach for most people. You probably need something in between—Sonnet’s Fusion D500P SATA storage systems offer speed, versatility, and reliability in a compact package—they are a great solution for anyone looking for an affordable storage system that will fit into a variety of workflows.

Maximum Performance
Connected to a Sonnet Tempo SATA E4P PCIe or X4P PCI-X adapter installed in a Mac or Windows computer, a Fusion D500P system’s drives can be accessed through its port multiplier⁽²⁾ at full speed, whether configured as RAID 0, 1, 10, or JBOD. A single Fusion D500P configured as a RAID 0 striped set can achieve 240MB/sec, fast enough to support multiple streams of DV, HDV, DVCPRO, or uncompressed 8-bit 1080 HD video. Up to four Fusion D500Ps can be ganged on a single Tempo SATA E4P or X4P adapter for double, triple, or even quadruple the available streams. (as well as increasing the number of supported video formats).

One Cable, Five Drives
The Fusion D500P enclosure employs a high performance SATA II port multiplier to manage the enclosed drives—just a single cable connects the enclosure to a SATA host controller card. This efficient interface simplifies setup and cuts cable clutter without compromising performance.

Form Meets Function
Fusion D500P systems can be used for simple backup needs. With appropriate hard drives, they are well-suited for use in editing suites such as Apple Final Cut Pro® and Adobe® Premiere® Pro CS3 video editing software, and video capture cards from AJA, Blackmagic Design, Matrox and Bluefish444. With an attractive and user friendly design, Fusion D500P's handsome door hides the drive modules, yet status indicator LEDs for each drive shine through. The drive modules have built-in locking levers that double as handles to make swapping easy. Or if you choose, you can secure each module in place with the built-in locks (great for added security). The Fusion D500P E-series integrates a swappable quiet fan module.
