10x the Performance of Gigabit EthernetUltra-Fast 10 Gb/s Network Connection

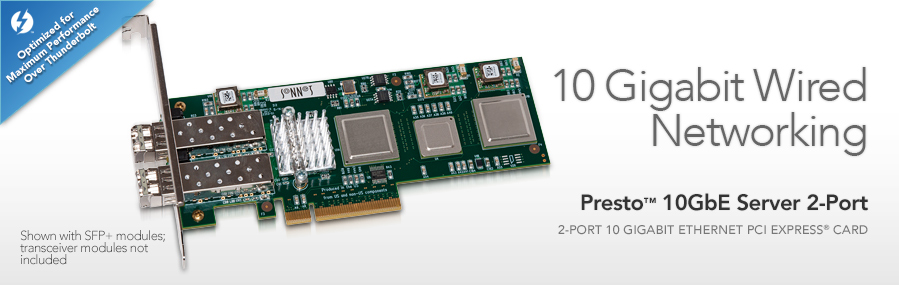

With increasing demands for greater data transfer speeds and more bandwidth over shared networks, and with specialized applications such as HD video editing using high-performance shared storage systems, 10 Gigabit Ethernet (10GbE) use has skyrocketed. This high-speed wired networking standard offers ten times the performance of Gigabit Ethernet, the common wired network connection included with most computers today. Sonnet offers a powerfully simple way to add dual-port 10GbE connectivity to your Mac Pro® or Windows® PC—the Presto 10GbE 2-Port.(1)

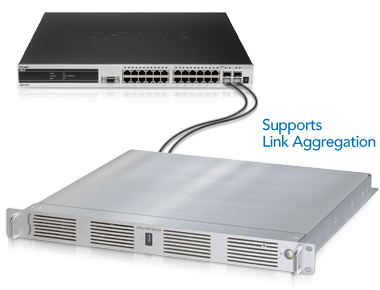

Bandwidth & CPU UsageThe Presto 10GbE 2-Port 10 Gigabit Ethernet PCI Express 2.0 adapter card enables you to connect your computer to high-speed infrastructure and storage without stepping down in speed. Setup is simple—install the low-profile card into an available x8 or x16 PCIe slot in your computer, install a driver, connect to the switch or 10GbE port via LC fiber optic or copper cable (sold separately), and then configure the card through the OS X® Network control panel or Windows® Device Manager. This Sonnet solution is perfect for high-performance computing where low latency, high bandwidth, and low CPU overhead are required. xMac mini Server Connected to Network SwitchIts increased throughput performance and low host-CPU utilization are achievedwith stateless offloads, allowing your computer to perform better while large files transfers or high I/O operations take place.With its dual ports, this Sonnet adapter supports transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails. When used with a Mac computer, it even supports link aggregation!

Key Features

Provides 10GbE Connectivity to Mac Pro and Windows PCs—Powerfully simple way to add high-performance 10GbE connectivity to your computer with PCIe slots

Connection Flexibility—Choose either a short-range or a long-range SFP+ transceiver (sold separately), or a SFP+ terminated "Direct Attach" twinax copper cable (sold separately) to connect the Presto card to your network or storage

Simple Setup—Low-profile x8 PCI Express card installs into an available slot, provides a simple driver installation, and configures through OS X Network control panel or Windows Device Manager

Supports Transparent Failover—Keeps your computer connected in case a single cable is disconnected or one of the ports fails

Supports Link Aggregation with Mac Computers—Increases throughput beyond what a single connection can sustain

Optimized for Thunderbolt—Ideal for use in Sonnet's Echo™ Express chassis and xMac™ Mac mini Server Thunderbolt expansion products

Shadow

Flexibility of Short-Range or Long-Range SFP+ Transceivers

Sonnet offers two SFP+ transceiver options (sold separately), a short-range module (up to 300 meters, part number G10E-SFP-SR), and a long-range module (up to 10 kilometers, part number G10E-SFP-LR) that connect the Presto card via LC fibre optical cable (sold separately) to a network switch or storage. Also, there is the ability to use cost-effective direct-attached copper (up to 7 meters).

Sonnet SFP+ Transceivers

Thunderbolt ConnectionsOptimized for Thunderbolt™

Got a Thunderbolt connection, but no PCIe slot? Presto 10GbE 1-Port is ideal for use in one of Sonnet's Echo Express Thunderbolt expansion chassis or the xMac mini Server—the combo enables you to add an ultra-fast 10GbE network connection to iMac®, Mac® mini, MacBook Air®, and MacBook Pro® computers.






See Technical Specifications Tab for footnotes
Part No.
G10E-SFP-2X-E2 Discontinued
Hardware
Warranty 1-year
Form Factor PCIe computer card
Transceiver Interface Type SFP+
Bus Interface PCI Express v2.0, x8
Network 10 Gigabit Ethernet
Packets Maximum packet size: 9000 bytes (jumbo packets)
Throughput ~9.9 Gb/s with 9KB MTU, ~ 9.5 Gb/s with 1500B MTU
Stateless Offloads
  • IP and TCP checksum offload, send and receive
  • TSO (TCP Segmentation Offload, AKA Large Send Offload)
  • LRO (Large Receive Offload)
  • RSS (Receive-Side Scaling)
  • Interrupt Coalescing
  • Multicast filtering
RoHS Compliant Yes
Package Contents
  • Presto 10GbE 1-Port 10 Gigabit Ethernet PCI Express Card
  • Low profile PCI bracket
  • Documentaiton



Specifications subject to change without notice.










Mac Compatibility

Mac Pro® (with card slots)

OS X® 10.6.8+

OS X Server 10.6.8+

OS X El Capitan compatible

Windows Compatibility

PC desktop (with PCIe slots)

Windows® 8, 7, Vista®

Windows Server 2008 R2, Server 2008

Thunderbolt Compatibility

Mac or PC with a Thunderbolt or Thunderbolt 2 port via a Thunderbolt to PCIe card expansion system


Technical Notes

  1. Connection requires SFP+ terminiated "Direct Attach" twinax copper cable (sold separately) or SFP+ transceiver modules (with a LC fibre optical cable; sold separately)



Mac LogoroHS LogoWindows Logo

Presto 10GbE Server 2-Port Accessories Part No. Description
Short Range SFP+ Transceiver Short-Range SFP+ G10E-SFP-SR Short-range SFP+ transceiver for Presto 10GbE cards
Long Range SFP+ Transceiver Long-Range SFP+ G10E-SFP-LR Long-range SFP+ transceiver for Presto 10GbE cards
