You'll Feel SATAsfied Inside!

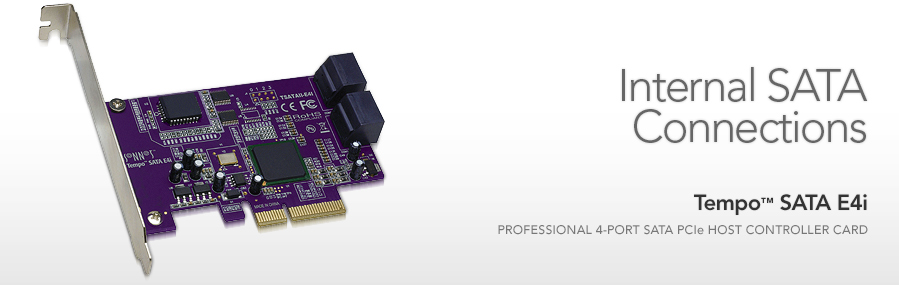

Do your storage capacity needs outweigh what your computer can support on its own? Stuff it—with Serial ATA drives, that is! Sonnet's high-performance Tempo™ SATA E4i 4-port Serial ATA host controller for PCI Express slots enables you to connect up to 4 additional internal SATA hard drives(1) for the perfect balance of easy expandability and superior performance. If you own a Power Mac G5, this card is an ideal companion to Sonnet’s G5 Jive™ internal drive mounting hardware for Power Mac G5 computers—along with your SATA drives, this combination is the most cost effective way for adding up to 12 Terabytes of high-performance storage capacity to your G5.

Tempo SATA E4i and G5 Jive Installed a Power Mac G5

Tempo SATA E4i PCI Express card is an ideal companion to Sonnet G5 Jive internal drive mount system for Power Mac G5 computers.

Key Features

High-performance interface for connecting four internal SATA drives inside a Power Mac® G5 or Windows® PC desktop computer

Supports OS X® 10.4+ and Microsoft Windows

3 Gb/s per port SATA II controller

Native PCI Express (PCIe) x4 host bus interface for high-performance applications

Spread Spectrum Clocking (SSC) support for compatibility with all SATA drives

Supports hard drive hot-swapping(3)

Shadow

Do you need more speed? Tempo SATA E4i offers 3Gb/s per port data transfer support and gives you performance to burn. You'll get great performance from individual drives, but grouping up to four Serial ATA hard drives in a RAID 0 (striped) set(2) will provide astonishing sustained read/write performance numbers, enough to capture and process multiple streams of HD video. Need more data security? Set up your drives in a RAID 1 (mirrored) or RAID 10 (striped/mirrored) set for up to 6 Terabytes of data redundancy. When you need more flexibility and performance than offered by standard solutions, get a Tempo SATA E4i—it'll give you room to grow and blazing performance for the most demanding applications.
See Tech Specs Tab for footnotes
Part No.
TSATAII-E4i Discontinued
Hardware
Warranty 1-year
RoHS Compliant Yes
Bus Interface PCI Express x4
Connectors Four SATA
Data Transfer Rate Up to 255MB per second per port
ATAPI Support No
Drive Types Supported Serial ATA I & II; Ultra DMA 133/100/66/33 (parallel)(4)
Firmware Flash-ROM upgradeable to latest firmware version
Bootability Not Supported
Package Contents
  • Tempo SATA E4i host controller card
  • One serial ATA data cable
  • Documentation & Software CD
Advanced Features
  • Supports hard drive S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) data reporting
  • Spread Spectrum Clocking for compatibility with all SATA drivers and lower EMI emissions
  • Bus Mastering frees CPU from data I/O handling



Specifications subject to change without notice.









Mac Compatibility

Power Mac® G5 (with PCIe slots) and Sonnet G5 Jive

OS X® 10.3+

OS X Server 10.3+

macOS High Sierra compatible

PC Compatibility

PC (with PCIe x4 slots)

Windows 10, 8, 7, Vista®, XP (SP2), and Windows Server: 2016, 2012, 2008 R2, 2008, 2003


Technical Notes

  1. Western Digital manufactures Desktop edition (WD Caviar, Caviar SE, Caviar SE16, and Raptor X) hard drives and Enterprise (RAID) Edition (WD RE, RE2, and Raptor) hard drives. Each type of hard drive is designed to work specifically in either a desktop computer environment, or connected to a RAID controller (hardware or software-based). If you intend to configure Western Digital drives in a RAID set, Sonnet and WD recommend using only their Enterprise edition hard drives. For more information, see this Western Digital FAQ.
  2. Creating RAID volumes under Windows requires dynamic disk storage, a formatting option available with Windows 7 Professional, Enterprise, or Ultimate (32- and 64-bit versions), Windows Vista Enterprise or Ultimate (32- and 64-bit versions), or Windows XP Professional (32- and 64-bit versions). In order to create RAID volumes larger than 2TB, you must do one of the following: Span (link together in a virtual chain) the volumes, and then format them as NTFS. OR Use GPT formatting. Note that drives and volumes with GPT formatting are not visible to any version of Windows XP Professional, nor to the 32-bit version of Windows Server 2003 SP1.
  3. SATA drive hot-swapping is not natively supported in a desktop PC or server running Windows. SATA drives connected to Tempo SATA E4i appear to the system as a non-removable hard drive and there is no mechanism in Windows to prepare them for removal.
  4. Parallel ATA disk drives are supported when using Sonnet's Tempo Bridge or similar Serial ATA-to-Parallel ATA adapter.



Mac Logo Windows Logo SATA Logo roHS Logo





Tempo SATA E4i Performance
  Read Write
One Drive Performance 255 MB/s 215 MB/s
Two Drive RAID 0 Performance 520 MB/s 400 MB/s
Four Drive RAID 0 Performance 730 MB/s 630 MB/s
Shadow



Product Part No. Description
Locking eSATA cable Tempo Serial ATA Cable Kit TCB-SATA Internal SATA drive data and power cables
