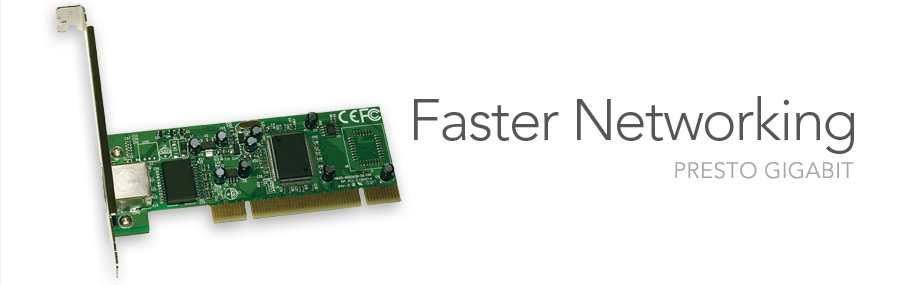

Sonnet - Presto Gigabit: 10/100/1000 Gigabit Ethernet PCI Card

Key Benefits

Simple way to add Gigabit Ethernet to any compatible computer

Easy installation

Full/half duplex

Dramatically increase file transfer times; enjoy data transfers of up to 1000 Mbps

Mac Compatibility

Power Macintosh⁽¹⁾, Power Mac® G3 Blue & White, G4, G5 (with PCI slots)⁽²⁾

Mac OS X® Version 10.5.x or 10.4

Windows Compatibility

PC (wiith PCI slot)

Windows XP SP2

Technical Specifications

Part No.	GE1000
Hardware
Warranty	1-year limited warranty
Bus Interface	PCI
Network Connectors	One RJ-45 connector supports 1000Mbps, 100Mbps, 10Mbps network speed and Auto-MDI/MDI-X
Bus Interface	PCI V2.2/2.1, 32-bit, 66/33 MHz
Standard	IEEE 802.3 10BaseT; IEEE 802.3u 100BaseT; IEEE 802.3ab 1000BaseT
Network	Gigabit Ethernet (10BaseT, 100BaseTX, 1000BaseT)
Network Power	UTP x 1 (Auto-MDI/MDI-X)
IRQ Line	Assigned by system
I/O Address	Assigned by system
Transmission Rates	10Mbps/20Mbps; 100Mbps/200Mbps; 1000Mbps/2000Mbps
Link	Supports Link Aggregation with two Presto Gigabit Ethernet cards⁽²⁾
Packets	Maximum packet size: 1500 bytes
LEDs	10Mbps Link/Activity; 100Mbps Link/Activity; 1000Mbps Link/Activity

Specifications subject to change without notice.

10/100/1000 Gigabit Ethernet PCI Card for Mac and Windows

Set a New LAN Speed Record
Network congestion can slow you down. Speed things up with Sonnet's Presto™ Gigabit Ethernet PCI card. Just install this Ethernet card into a PCI slot of just about any Power Macintosh®⁽¹⁾ or Windows desktop, connect to a fast network, and watch your file transfer times improve dramatically.

Simple Installation
Sonnet's Simply Fast design philosophy makes this installation a breeze; you'll complete the process in a few simple steps. Even older models can take advantage of these speed enhancements. You'll be impressed by data transfers of up to 1000 Mbps— migrating your computer to Gigabit Ethernet has never been so easy.

With increased networking speeds you'll be able to enjoy faster network connections. Enjoy the benefits of high-speed 1000 Mbps transfer rates—the ideal solution for high-bandwidth audio, video, and storage requirements.

Technical Notes:
⁽¹⁾Mac OS X supported on Power Mac G3 computers when used with appropriate third-party software. Please refer to software developer's website for complete compatibility and specification details. Sonnet does not endorse nor offer support for third-party software. For support issues, please refer software developer's support site.

⁽²⁾Link aggregation not supported combining Presto Gigabit Ethernet card and motherboard Ethernet.
