Advanced Network Connection

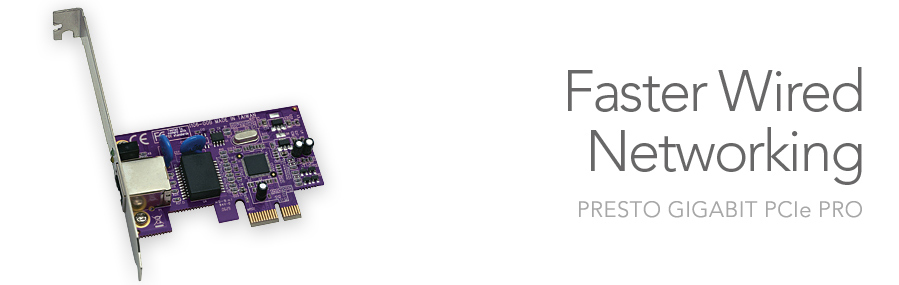

Whether you need to add a third Gigabit Ethernet port to your older Mac Pro for improved performance, or step up to Gigabit Ethernet connectivity for your PC, get a Sonnet Presto Gigabit Pro PCIe Gigabit Ethernet adapter card for PCI Express for an advanced networking solution. This Sonnet card supports link aggregation(1) with your Mac's onboard Gigabit Ethernet ports and full duplex communication to achieve 2000 Mbps transfer rates—the ideal solution for high-bandwidth data transfer requirements. Presto Gigabit Ethernet Pro PCIe also supports 9000 byte jumbo packet transfers (compared to 1500 byte standard packets) to support higher performance and reduced overhead when transferring large files.

Presto Gigabit Pro PCIe is compatible in Mac Pro (early 2008-2012) and PCs with a PCIe slots. This card is also compatible with any Mac with a Thunderbolt port when installed is a Sonnet Echo Express Thunderbolt-to-PCIe card expansion chassis or other qualified Thunderbolt expansion system. Offering simple configuration, thisSonnet card is easy to use, and its support for 1000/100/10BaseT Usage vignette for Presto Gigabit Pro PCIeauto-negotiation and full/half duplex communication enable it to be used in most networks.



Key Features

Provides Gigabit Ethernet Connectivity to Mac Pro and Windows PCs—Simple way to add or expand Gigabit Ethernet connectivity to any compatible computer

Simple Connection—Supports gigabit speeds on common CAT-5 cabling (no need for costly cable replacement)

Jumbo Packets Support—Supports jumbo packets (Mac and Windows)

Link Aggregation Support—Supports link aggregation with onboard Gigabit Ethernet ports (Mac only)

Full/half duplex

1000/100/10BaseT auto negotiation

Plug-and-Play Installation—Easy setup with Mac computers

Thunderbolt-compatible—Compatible with Sonnet's Echo Express line of Thunderbolt expansion chassis

Shadow

Presto Gigabit Pro PCIe supports gigabit speeds over common CAT-5 cabling, so costly cable replacement is unnecessary. If your computer already has onboard Gigabit Ethernet, you can add a Presto Gigabit Pro PCIe and use it for dedicated connection to a printer,AirPort® Extreme base station, DSL or cable modem, or a video server,while leaving your onboard Gigabit Ethernet port(s) available for other connections.
Part No.
GE1000LAB-E
Presto Gigabit Pro PCIe (Revison B model)
Hardware
Warranty 1-year
RoHS Compliant Yes
Network Connectors One RJ-45 connector supports 1000Mbps, 100Mbps, 10Mbps network speed and Auto-MDI/MDI-X
Bus Interface PCI Express 2.0 x1
Standard Compliant with 10/100/1000 IEEE 802.3 specification
Network Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)
Network Power UTP x 1 (Auto-MDI/MDI-X)
IRQ Line Assigned by system
I/O Address Assigned by system
Transmission Rates 10 Mbps/20 Mbps;
100 Mbps/200 Mbps;
1000 Mbps/2000 Mbps
Link Supports Link Aggregation(1)
Packets Maximum packet size:
9000 bytes (Jumbo packets)
Package Contents PCIe Ethernet network adapter card











Mac Compatibility

Mac Pro with PCIe slots (early 2008-2012)

OS X 10.7.5+

OS X Mavericks compatible

Windows Compatibility

PC (with PCI Express slots)

Windows® 8

Windows 7

Windows Vista®

Windows Server 2012, 2008

Thunderbolt Compatibility

Any Mac with a Thunderbolt port via Sonnet's Echo Express Thunderbolt-to-PCIe card expansion chassis or other qualified Thunderbolt expansion chassis

Technical Notes

  1. Link aggregation not under Windows.

Specifications subject to change without notice.
