Multiple Slots, Quick Input and Output

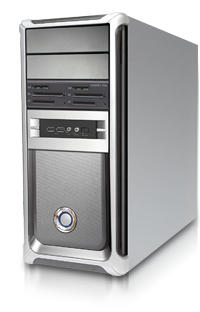

Qio MR Installed Inside PC Mobile Rack BaySonnet’s Qio MR is a multi-tasking marvel; this is the industry’s first device which supports all major HD video memory card formats in one compact, mobile rack-mounted unit. Qio MR reads from and writes to just about any memory card—P2, SxS, CompactFlash®, SDHC™ and SDXC™, all at high speed. Replacing multiple standalone card readers, Qio MR’s dual P2, SxS, and CF slots enable you to ingest files more efficiently, and the included SD card adapter handles SDHC and SDXC media. Qio MR reads files from any combination of cards with aggregate bandwidth up to 200 MB/sec., much faster than FireWire® or USB 2.0 adapters are capable.

Made for PCMade for Windows PCs

For PC users, Qio MR provides all the capabilities and advantages of the original Qio users have come to appreciate in an easy to install, Windows-compatible package. The Qio MR chassis slides easily into an empty 5.25" mobile rack (drive) bay, while the included Internal PCI Express Bus Extender PCIe interface card installs into any half- or full-height PCIe slot.

Key Features

Replaces Multiple Card Readers—Comprehensive memory card compatibility with support for Sony® SxS; Panasonic® P2; CompactFlash; SDHC and SDXC cards (with included adapter)

Fast—Uses PCI Express® bus interface to deliver superior performance; aggregate bandwidth of 200MB/sec.

Qio MR with Media Card

Qio MR provides quick ingest of all major HD video memory card formats in one compact, mobile rack-mounted unit.

Media Cards

Qio MR supports a full range of media cards such as (from left to right) Sony SxS, Panasonic P2, CompactFlash, and SDHC cards.

Part No.
QIO-MR Qio MR with Sonnet Internal Bus Extender PCIe adapter for Windows desktop computers
Hardware
Warranty 2-year
External Connectors
(Qio MR Chassis)
  • Two CompactFlash (CF)
  • Two CardBus (P2)
  • Two ExpressCard/34 (SxS)
Internal Connectors
(Qio MR Enclosure)
  • Four eSATA (to connect hard drives)
  • PCIe x1 - 18 pin
  • Power
Internal Connectors
(PCIe Adapter Card)
  • PCIe x1 - 18 pin
Data Transfer Speed Up to 200 MB/s aggregate
Bus Interface PCI Express x1
Supported Media, CompactFlash Slots Type I CompactFlash
Supported Media, CardBus Slots P2, P2 E-series
Supported Media, ExpressCard/34 Slots SxS; SxS Pro; SDXC using included adapter
Drives Type Supported Serial ATA
Firmware Flash-ROM upgradeable to latest firmware version
Dimensions WxDxH: 5.75 x 6 x 1.6 in. (14.5 x 15.2 x 4 cm)
RoHS Compliant Yes
Power 12V@1.5A input
Absolute Maximum Input Voltage 20V
Package Contents
  • Qio MR universal professional media reader/writer
  • Sonnet Internal Bus Extender PCIe adapter with full- and half-height PCIe brackets
  • SD card adapter
  • Power cable
  • 1-meter PCIe interface cable
  • Mounting screws
  • User's guide


Mac Logo Windows Logo eSATA Logo ExpressCard Logo roHS Logo



white space









Windows Compatibility

Windows 7

Windows Vista®

Windows Server 2008 R2

Windows Server 2008

PC Compatibility
Known Compatible Computers

Dell T5500(1)

Dell Dimension 9100

HP Z400(2)

HP Z600(2)

HP Z800(2)

HP WJ992ET

HP XW4200

HP XW8400(3)

HP XW8600

Known Compatible Motherboards

Asus P6T7, Sabertooth X58

Gigabyte GA-P55-UD3L

Super Micro X8DTH-6F, X8ST3-F, X8STE

Known Incompatible Computers & Motherboards

Dell XPS400


Technical Notes

  1. Use slot 2.
  2. Use slot 3.
  3. Error message may appear on restarts, but does not affect operation.



Qio Read Performance

P2 Card

50 MB/sec

CF Card

85 MB/sec

2X CF Card

170 MB/sec

SxS Card

90 MB/sec

2X SxS Card

180 MB/sec



Qio Accessories Part No. Description
Sonnet SDXC UHS-I Pro Reader/Writer ExpressCard/34 Sonnet SDXC UHS-I Pro Reader/Writer ExpressCard/34 SDXC-UHSI-E34 Pro SDXC/SDHC card reader for ExpressCard slot, Qio, and Qio MR

Reviews
XDCAM-USER.COM Review

Sonnet Qio Review. Very, Very, Fast Offloads.
"I had heard about the QIO some time ago, so I approached Sonnet to see if I could borrow a unit to review. I was given the loan of a Sonnet QIO at NAB. I have been playing with it since then and you know what, it’s a great device. So what exactly is it? Well it is an extension box that allows you to connect a range of peripherals and flash memory cards to your computer via the PCI bus. The reason I wanted to borrow one was because the QIO is one of the few devices (the only device?) that allows you to connect SxS, Compact Flash and P2 cards to a computer using the high speed PCI bus with hot-swappable functionality…

This is one fast device. If you have lots of media to off-load and backup it’s going to save you a lot of time. If you are a production company that works with large volumes of solid state media it will pay for itself very quickly in saved man-hours. If your working in the field with a MacBook Pro the ability to connect both the media and eSATA devices at the same time makes the QIO a very interesting proposition. It is well constructed, simple to install and use, what more could you ask for."

DV Award

In Review: Sonnet Technologies Qio
"The Sonnet Technologies Qio answers one of the most significant questions posed by editors dealing with solid-state media: how do I copy the contents of the cards to my computer? And the Qio answers the question without any uncertainty…

Who needs the Qio? Any editor who deals with a variety of solid-state media. Nothing is worse than having a client drop off a P2 card and you have no way to read it. “Er, can I plug your camera into my computer so I can copy the contents of the card?” Or, “I know I have that little USB CF card reader somewhere around here…” And it’s not just for editors needing multiple formats. A solid piece of equipment to me is far preferable to an inexpensive card reader which might be slow and much more subject to failure when you need it most. The Qio is most useful to anyone who needs to extend the bus capability of their computer to additional storage and other compatible card-based devices.

The Qio represents the only product of its kind on the market and I am pleased to recommend it with great enthusiasm."

Creative Cow Rating

Fast Enough? Data-Driven Broadcast Infrastructure
"…The single most impressive ingest product that I saw was the Sonnet Technologies Qio, pronounced Cue-Eye-Oh. Using a single PCIe slot, it gives you two P2 readers, two Sony SxS readers, and two CF Card readers.

My first reaction was, "It takes up another card slot?!? What if you need a slot for a SATA card?" The Sonnet Qio also incorporates the well known E4P eSATA card - built right into the Qio! So in addition to everything else, you get four eSATA ports, all of which support port multiplication for your eSATA drives. Amazing!"

Studio Daily Rating

Review: Sonnet Qio
"As a solid-state card reader, the Qio accepts every kind of card your cameraman may hand you: P2 cards from Panasonic cameras, CompactFlash cards from digital SLRs or Red cameras, SxS cards from Sony, JVC cameras or Arri cameras, and SDHC cards (via an adapter) from everything else. This versatility is a big deal. As many folks move from tape to solid-state, they can buy one convenient reader that handles it all.

Not only does the Qio work with all of these card formats, but it accepts two of each card at a time — two P2 cards, two SxS cards, and so on. It’s like the Noah’s Arc of card readers, and that’s helpful if you’re shooting a lot of cards during the day, and want to copy two at a time. With two cards mounted, you don’t have to hover around your computer as it copies, waiting to slip in the next card. It’s a nice convenience, and no other card reader gives you dual-slotted options for so many media formats.

…[its] a great option for production houses, editors and DITs who have to make their way in this world of endless media formats."
