You'll Feel SATAsfied Inside!

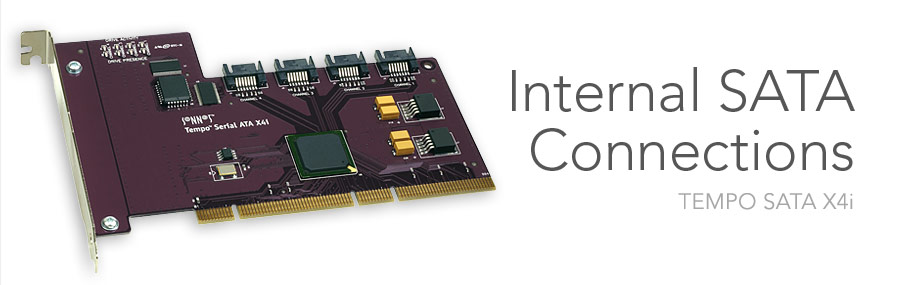

Do your storage capacity needs outweigh what your computer can support on its own? Stuff it—with Serial ATA drives, that is! Sonnet's high-performance Tempo™ SATA X4i 4-port Serial ATA host controller for PCI-X or PCI slots enables you to connect up to 4 additional internal SATA hard drives(1) for the perfect balance of easy expandability and superior performance. If you own a Power Mac G5, this card is an ideal companion to Sonnet’s G5 Jive™ internal drive mounting hardware for Power Mac G5 computers—along with your SATA drives, this combination is the most cost effective way for adding up to 12 Terabytes of high-performance storage capacity to your G5.

Do you need more speed? Tempo SATA X4i offers 3Gb/s per port data transfer support and gives you performance to burn! You'll get great performance from individual drives, but grouping up to four Serial ATA hard drives in a RAID 0 (striped) set(2) will provide astonishing sustained read/write performance numbers, enough to capture and process multiple streams of HD video! Need more data security? Set up your drives in a RAID 1 (mirrored) or RAID 10 (striped/mirrored) set for up to 6 Terabytes of data redundancy. When you need more flexibility and performance than offered by standard solutions, get a Tempo SATA X4i—it'll give you room to grow and blazing performance for the most demanding applications.





Key Features

High-performance interface for connecting four internal SATA drives inside your computer

Supports Mac OS® X, Windows 7 (Professional or Ultimate), Windows Vista (Enterprise or Ultimate), Windows XP Pro, Windows Server 2008 R2, Windows Server 2008, and Windows Server 2003 RAID features

3 Gb/s per port SATA II controller

PCI-X host bus interface for high-performance applications

Spread Spectrum Clocking (SSC) support for compatibility with all SATA drives

Shadow



Tempo SATA X4i PCI-X card is an ideal companion to Sonnet G5 Jive internal drive mount system for Power Mac G5 computers.



Part No.
TSATAII-X4i Tempo SATA X4i
Hardware
Warranty 1-year
RoHS Compliant Yes
Bus Interface PCI-X, 64-bit 133MHz; 32-bit PCI bus 2.2 Compliant, works in any PCI or PCI-X slot
Connectors Four SATA
Drives Supported Up to 4
Data Transfer Rate Up to 266 MB per second per port
ATAPI Support No
Drives Type Supported Serial ATA I & II; Ultra DMA 133/100/66/33 (parallel)(4)
Firmware Flash-ROM upgradeable to latest firmware version
Bootability Not Supported
Package Contents
  • Tempo SATA X4i host controller card
  • One serial ATA data cable
  • Quick start guide
  • Software CD
Advanced Features
  • Supports hard drive S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) data reporting
  • Spread Spectrum Clocking for compatibility with all SATA drivers and lower EMI emissions
  • Bus Mastering frees CPU from data I/O handling



Specifications subject to change without notice.









Mac Compatibility

Power Mac G4

Power Mac G5 (with PCI-X or PCI(3) slots)

OS X 10.3, 10.4.11, and 10.5

PC Compatibility

PC desktop (with PCI(3) or PCI-X slots)

Windows® 7, Vista®, XP

Windows Server 2008 R2, 2008, 2003


Technical Notes

  1. Western Digital manufactures Desktop edition (WD Caviar, Caviar SE, Caviar SE16, and Raptor X) hard drives and Enterprise (RAID) Edition (WD RE, RE2, and Raptor) hard drives. Each type of hard drive is designed to work specifically in either a desktop computer environment, or connected to a RAID controller (hardware or software-based). If you intend to configure Western Digital drives in a RAID set, Sonnet and WD recommend using only their Enterprise edition hard drives. For more information, see this Western Digital FAQ.
  2. Creating RAID volumes under Windows requires dynamic disk storage, a formatting option available with Windows 7 Professional, Enterprise, or Ultimate (32- and 64-bit versions), Windows Vista Enterprise or Ultimate (32- and 64-bit versions), or Windows XP Professional (32- and 64-bit versions). In order to create RAID volumes larger than 2TB, you must do one of the following: Span (link together in a virtual chain) the volumes, and then format them as NTFS. OR Use GPT formatting. Note that drives and volumes with GPT formatting are not visible to any version of Windows XP Professional, nor to the 32-bit version of Windows Server 2003 SP1.
  3. Performance will be lower in PCI-only machines.
  4. Parallel ATA disk drives are supported when using Sonnet's Tempo Bridge or similar Serial ATA-to-Parallel ATA adapter.



Mac Logo Windows LogoSATA LogoPCI-X Logo roHS Logo





Product image Product Name Part No. Description
G5 Jive G5 Jive ENC-G5-3HD Internal drive mounting system for all Power Mac G5 computers
Locking eSATA cable Tempo Serial ATA Cable Kit TCB-SATA Internal SATA drive data and power cables
