Mobile Rack Device Mounting Kits

Using a Mobile Rack Device Mounting Kit, you can install devices such as SSD drive enclosures, an LTO tape drive, a card reader or optical drive inside your xMac Pro Server, connecting the devices via Thunderbolt or an installed PCIe card. The mounting bracket secures the devices while the included 100W power supply inside powers them, and the attached internal fan keeps things cool.

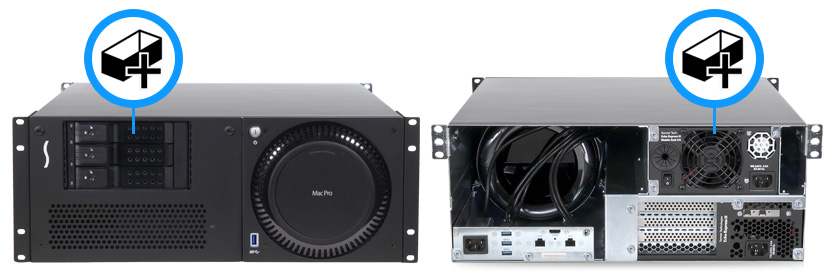

xMac Pro Server Front & Back Views


Basic Edition

Add your own devices, cables, and PCIe card. The mounting kit includes the screws necessary to secure the devices, and eight power connectors from which to choose to connect them.

Pre-Configured Kits

Pre-configured kits come from Sonnet configured with the necessary drive cages, cables, and PCIe cards. You simply add your own SSDs or hard drives to complete the package.



• Basic Edition
Includes the necessary mounting hardware to install one or two devices; you provide the mobile rack devices, cables, and PCIe cards.
More Info…Arrow

• Storage Expansion x8 Edition
Includes two 4x2.5" 6Gb/s SATA hot-swap drive cages, an external 8-port 6Gb/s SAS/SATA PCIe 2.0 card, and cables; just add your own drives.
More Info…Arrow

• Blu-ray Mastering Edition
Includes a Blu-ray burner, two 2.5" 6Gb/s SATA hot-swap drive cages, one 3.5" 6Gb/s SATA trayless hot-swap drive cage, an external 4-port 6Gb/s eSATA PCIe 2.0 card, and cables; just add your own drives.
More Info…Arrow

• Mac Pro Migration Edition
Includes three 3.5" 6Gb/s SATA trayless hot-swap drive cages, an external 4-port 6Gb/s eSATA PCIe 2.0 card, and cables; just add your own drives.
More Info…Arrow

Shadow




 Mac Pro, PCIe cards, and cables shown in photos that are not included with xMac Pro servers are shown for illustration purposes; items sold separately.
See Tech Specs Tab for footnotes

Front and Back View of a Mobile Rack Device Mounting Kit Installed Inside the xMac Pro Server
