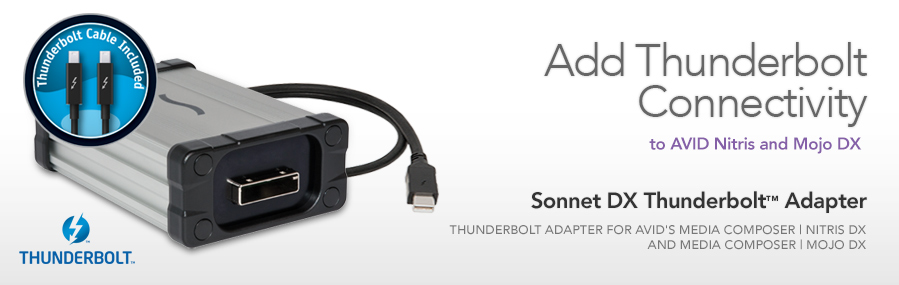

Thunderbolt Connection for Mojo DX

With the DX Thunderbolt Adapter, you can capture, edit, monitor, and output video using Mojo DX, your Avid editing software, and any Avid-qualified Thunderbolt-equipped computer. That means you can upgrade to a more modern computer equipped with Thunderbolt and get even better performance from your Mojo DX investment!

Thunderbolt Connection for Nitris DX

In October 2014, Avid announced support of Media
Composer | Nitris DX connected via Thunderbolt 2 to the Apple® Mac Pro® (Ivy Bridge). Please refer to this Avid Knowledge Base update regarding Thunderbolt compatibility for Nitris DX.

Key Features

Add Thunderbolt Connectivity for Avid Mojo and Nitris DX—Connect to any Avid-qualified, Thunderbolt-equipped computer

Easier Editing—With ultra-low latency and high sync accuracy

Performance—Experience smooth, highly-responsive video performance

Rugged—Lightweight yet rugged aluminum enclosure travels well

Shadow
Avid Qualified Logo

Part No.
DX-TB Discontinued
Hardware
Warranty 2-year
Form Factor Thunerbolt adapter
External Connector
  • Thunderbolt
  • PCI Express x4 (SFF-8088)
Bus Interface PCI Express 2.0 x4d
Data Transfer Rate Up to 5.0 Gb/s
Dimensions (WxDxH) 2.7" x 4.0" x 1.3" (6.7 x 10.0 x 3.4 cm)
Weight .4 lbs (0.18 kg)
RoHS Compliant Yes
Package Contents
  • Sonnet DX Thunderbolt Adapter
  • Thunderbolt cable



Specifications subject to change without notice.
white space









Compatibility(1)

See Qualified macOS Systems for Media Composer

Windows requires Windows 10 (64-bit Edition)(2)

Technical Notes

  1. Thunderbolt 3 computers require a Thunderbolt 3 to Thunderbolt 2 Adapter
  2. Windows system require current BIOS, drivers, and OS. Windows systems may also require that the Avid Nitris DX is plugged in before booting.
