 Thunderbolt Certified for Mac® and Windows®
The Echo 11 Thunderbolt 3 Dock works with Mac and Windows(4) computers with Thunderbolt 3 ports. |
Key Features Connects Your Peripherals with One Cable—Plug in peripherals to the dock with their cables, connect the dock to your computer with the included Thunderbolt 3 cable Eleven Interfaces—Five USB 3.0, two Thunderbolt 3, Gigabit Ethernet, audio, and HDMI 2.0 ports; SD card slot macOS and Windows Compatible—Works with any Thunderbolt 3 Mac or Windows(4) computer Computer Charging Port—Main Thunderbolt 3 port provides power to computers that accept charging over Thunderbolt 3, supporting them at the maximum power they will accept; leave your computer’s power adapter packed away! USB Charging Port—Front panel USB port can charge an iOS device, or other device that charges via USB, even while the computer is off or disconnected
|
40Gbps Thunderbolt 3 Interface—Fastest interface available, supports daisy chain connection of additional devices Supports One 5K or Two 4K Displays(6)—Connect one 4K 60Hz display to the HDMI 2.0 port, another to the second Thunderbolt 3 port or at the end of the Thunderbolt 3 device chain; or connect one 5K 60Hz Thunderbolt display Wide Range of Second Display SD Card Slot—Reads SD, SDHC, and SDXC memory cards Backward Compatible with Thunderbolt 2 and Thunderbolt Macs—When used with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter  |

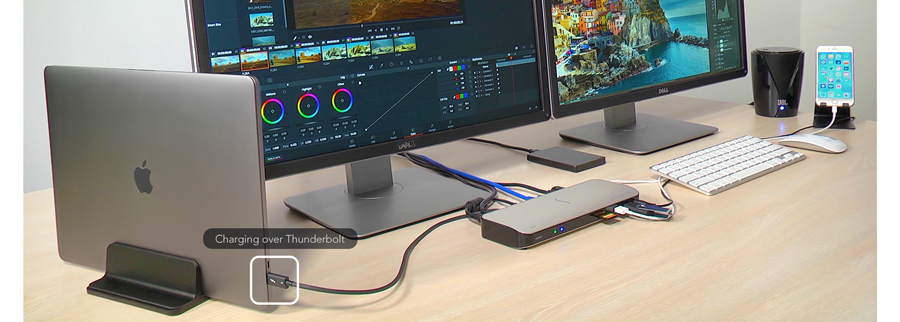

Leave Your Charger In the Backpack For users whose notebooks and laptops accept charging over Thunderbolt(5), the Echo 11 dock also provides up to 87W of Power Delivery through the included Thunderbolt 3 cable(3) used to connect the dock to the computer. These computers fall into four power requirement categories: 30W (example: Dell XPS 12), 45W (example: Dell XPS 13), 60W (example: MacBook Pro® 13-inch), and 87W (example: MacBook Pro 15-inch)—the Echo 11 charges them at the maximum power they will accept so you can leave your computer’s power adapter packed away!
40Gbps Thunderbolt 3—The USB-C That Does It All The Echo 11 Dock includes two Thunderbolt 3 ports; one for connection to your computer, the other to daisy chain up five additional Thunderbolt peripheral devices(1) to your computer! The Echo 11 includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect another USB device to the second Thunderbolt port using the proper cable or adapter. The Dock’s Thunderbolt 3 peripheral port can also provide up to 15 watts of bus power to devices requiring extra power for even the most demanding bus-powered USB 3.1 or Thunderbolt devices.
Connect a 4K Display or Two The Echo 11 dock features an HDMI 2.0 port that supports a 4K @ 60Hz (or lower resolution) monitor. To connect an additional display(6), you can plug in a Thunderbolt 3 monitor to the dock’s second Thunderbolt 3 port or at the end of a Thunderbolt 3 device daisy chain. Or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt 3 or USB-C video adapter (sold separately). Connect one HDMI display to the Echo 11 dock’s HDMI port, and another(6) display to its second Thunderbolt 3 port. Display interface types that can be connected to the dock via the second Thunderbolt 3 port include:

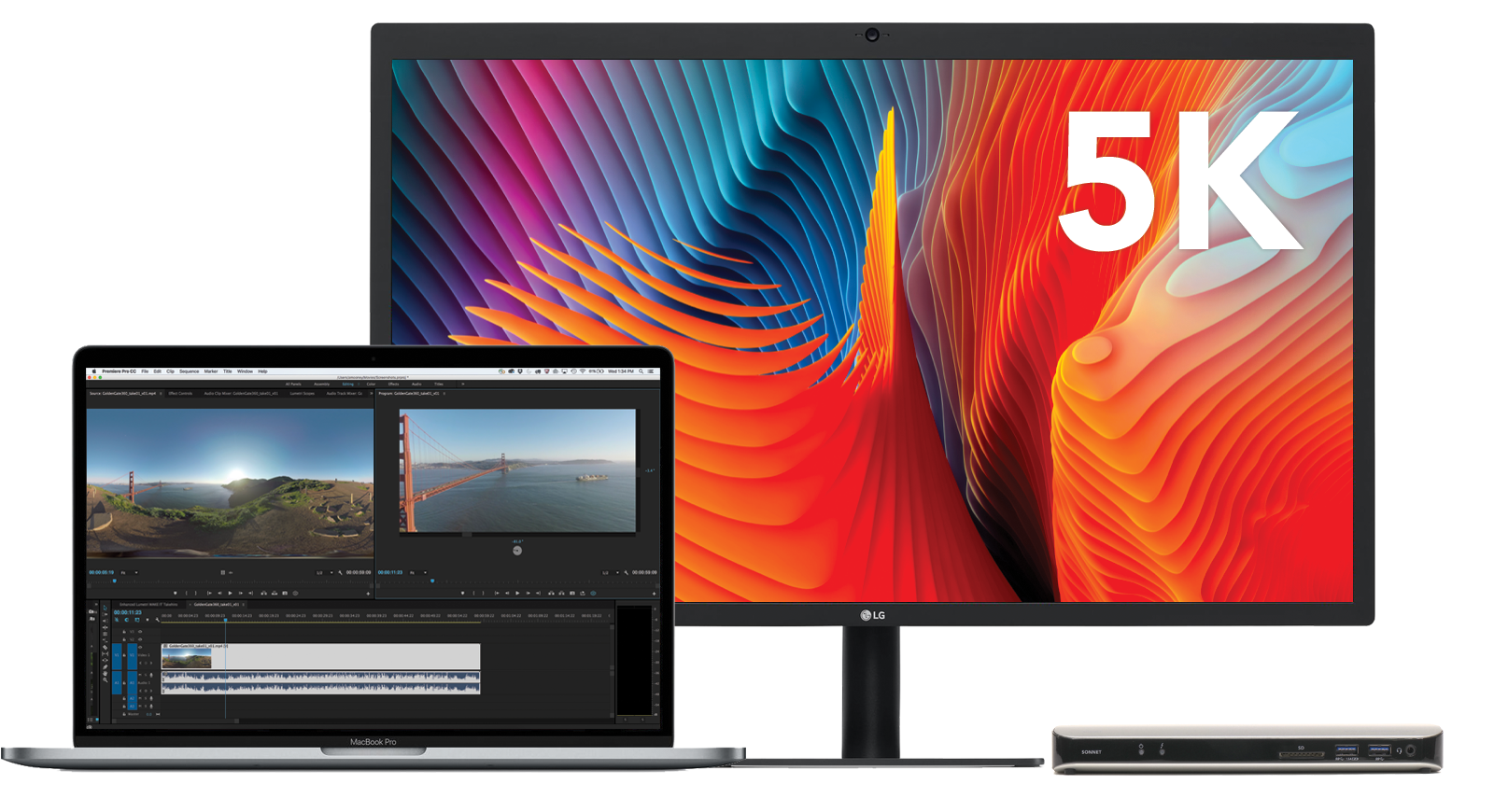

As an alternative to connecting one or two 4K @ 60Hz displays, the Echo 11 dock also supports the connection of a 5K @ 60Hz Thunderbolt 3 display. Simply plug in a Thunderbolt 3 (40Gbps) cable between the dock’s second Thunderbolt 3 port and the display, no adapters necessary.
|

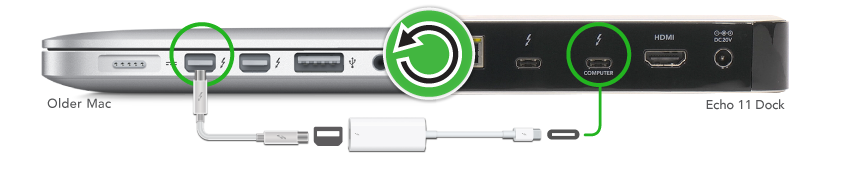

Backward-Compatible with Older The Echo 11 Thunderbolt 3 Dock is also compatible with Macs with Thunderbolt 2 or Thunderbolt ports(7) when used with the bi-directional Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter and a Thunderbolt cable (both sold separately).
Connection Condenser With its eleven ports, the Echo 11 Thunderbolt 3 Dock is a handy hub to plug in your peripherals and connect them all to your computer through a single Thunderbolt 3 cable. Through that same cable, the Dock provides enough power (87W) to charge any compatible computer at maximum power. You can even connect two 4K @ 60Hz displays to expand your view and productivity!  |
Technical Notes
|
Mac Compatibility Mac (M1) [supports only one monitor] Mac (Intel®) with Thunderbolt 3 ports Mac with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt cable(1) macOS® 10.12.6+ macOS Big Sur compatible iPad Compatibility iPad Pro with Thunderbolt port (supports only one mirrored monitor) Windows Compatibility PC with Thunderbolt 4 or Thunderbolt 3 ports Windows 11, 10
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||
|
|
|
|
|
