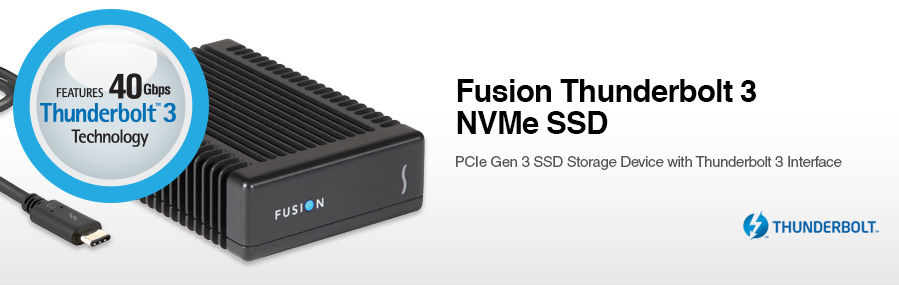

World's Fastest Bus-Powered Portable Storage Device

Incorporating the latest PCIe Gen 3 SSD and
Thunderbolt Technologies

Do your portable storage requirements include maximum performance, pocket-sized mobility, bus-powered operation, and rugged reliability? The Sonnet Fusion™ Thunderbolt™ 3 NVMe SSD delivers it all:

Check MarkStunning Performance Over Thunderbolt 3 From a Single Memory Module—No RAID 0 of multiple drives needed for maximum performance

Check MarkBus-powered for Complete Portability—No power
adapter needed

Check MarkSmall and Rugged—Fits easily in your pocket, solid
aluminum case

Intel Thunderbolt Button

More Than 2100 MB/s BugKey Features

Ultra Performance
Data transfer rates up to 2600 MB/s(1) to support 4K workflows

No Slowdowns—Custom milled case ensures SSD never throttles performance over time due to excessive heat generated during large file transfers

Bus-Powered—Achieve total mobility without the need for a power adapter

Pocketable—Fits in the palm of your hand

40Gbps Thunderbolt 3 Interface—Connects to any Thunderbolt 3 computer port, or at the end of a Thunderbolt 3 device daisy chain

Rugged Construction—Aluminum enclosure withstands heavy use

Thunderbolt Certified for Mac® & Windows®

Shadow

Fusion Thunderbolt 3 PCIe Flash Drive In Palm of Hand Icon4K Video Workflow Support—
In the Palm of Your Hand4K Display

Sonnet’s Fusion Thunderbolt 3 NVMe SSD leverages the latest advancements in solid state storage and Thunderbolt 3 technology to create a device that delivers performance unimaginable a short time ago, yet fits neatly in the palm of your hand. It is especially well suited to serve as an ultra-fast portable scratch drive for editing raw 4K video at higher frame rates, or even performing IT duties like installing applications and operating systems. You can even employ the Fusion flash drive for instant-access media storage or as a high-performance shuttle drive.

Feature Icons

Divider

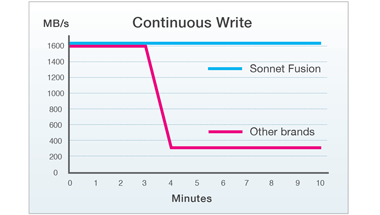

Write performance graph

Consistent Performance
Because the Fusion Thunderbolt 3 NVMe SSD's enclosure is milled with extremely tight tolerances, it maximizes heat transfer from the specific M.2 SSD installed inside. This allows a fanless design, but, more importantly, enables the drive to operate for sustained periods, most importantly during large file transfers, without thermal-throttling of the SSD’s performance, a problem encountered by competing products.



Speed Dial Icon


Amazing Transfer Speeds & Performance
The Fusion Thunderbolt 3 NVMe SSD incorporates a PCIe Gen 3 flash controller that enables the device to outperform USB 3.0 flash drives by more than 500%, and is capable of transferring files at rates up to 2600 MB/s.(1)

Fusion Thunderbolt 3 PCIe Flash Drive In Palm of Hand IconDesigned with Latest SSD Technology

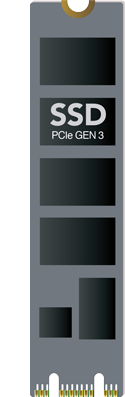

Sonnet designed the Fusion Thunderbolt 3 NVMe SSD around a Gen 3 M.2 PCIe SSD module, the fastest standard SSD type now available. It connects directly to any computer with a Thunderbolt 3 port, or at the end of a Thunderbolt 3 device daisy chain, via a captive 0.5-meter Thunderbolt 3 (40Gbps) cable.

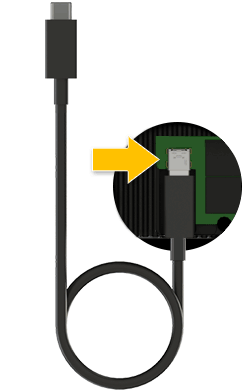

Captive Thunderbolt 3 CableReplaceable Captive Cable
Through the use of a captive cable, the Fusion Thunderbolt 3 NVMe SSD's Thunderbolt cable remains firmly connected to it at all times. Should the cable ever break, it can easily be replaced with an approved replacement cable available from Sonnet or a Sonnet-authorized reseller.

Divider

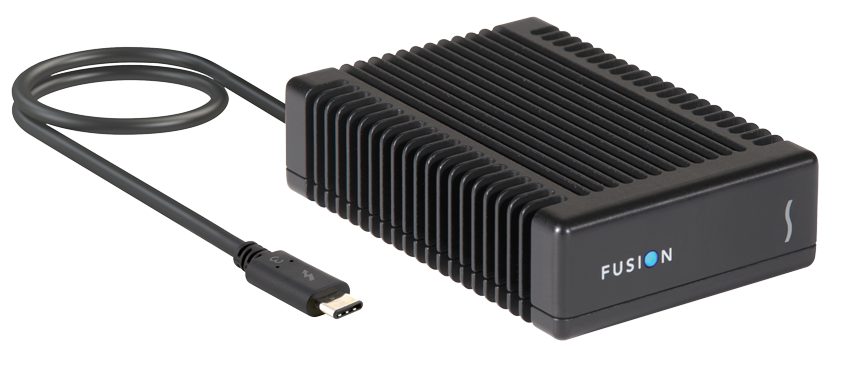

Fusion Thunderbolt 3 PCIe Flash Drive

Pro Thunderbolt Storage Icon Pro Thunderbolt Storage
Connects one high-performance PCIe Gen 3 SSD to any computer with a Thunderbolt 3 port
Superior Performance Icon Superior Performance
Transfers data at up to
2600 MB/s(1)
Pocketable Icon Pocketable
Fits in the palm of your hand – only 2.8 x 4.1 x 1.25 inches (WxDxH)
Thunderbolt 3 Interface Icon Thunderbolt 3 Interface
Connects to any Thunderbolt 3 computer port, or at the end of a Thunderbolt 3 device daisy chain
Rugged Construction Icon Rugged Construction
Aluminum enclosure withstands heavy use
Bus-Powered Icon Bus-Powered
Powered through Thunderbolt
connection; no power adapter
required
Shadow
See Tech Specs Tab for footnotes
Part No.
FUS-TB3-1TB Discontinued
Hardware
Warranty 2-year
Form Factor Portable storage enclosure
Bus Interface 40Gbps Thunderbolt 3
Power Bus-powered via Thunderbolt connection
Operating Temperature 0˚ C to 35˚C (32˚ F to 95˚F)
Data Transfer Speed Up to 2600 MB/s, depending on computer(1)
Dimensions (WxDxH) 2.8 x 4.1 x 1.25 in (70 x 103.2 x 31.5 mm)
Weight 12.25 oz. (347.28 gm.)
RoHS Compliant Yes
Package Contents
  • Fusion Thunderbolt 3 NVMe SSD with captive 0.5-meter Thunderbolt 3 (40Gbps) cable
  • Documentation



Specifications subject to change without notice.









Mac Compatibility

Mac with a Thunderbolt 3 port

macOS 10.12.6+, bootable

macOS Catalina compatible

Supports APFS

Windows Compatibility

PC with a Thunderbolt 3 port

Windows 10, bootable


Technical Notes

  1. Most computers equipped with Thunderbolt 3 connect four PCIe lanes (x4 PCIe Gen 3) to Thunderbolt 3. Some computers connect only two PCIe lanes (x2 PCIe Gen 3) to some or all ports, which will result in performance of the Fusion Thunderbolt 3 NVMe SSD being reduced to about 1400 MB/s when connected to those ports. To check your computer, click here.

Windows logoPCI Express LogoRoHS Compliant logo





Fusion Thunderbolt 3 NVMe SSD Performance

Fusion Thunderbolt 3 PCIe SSD Flash Drive Speed Chart





Accessories Part No. Description

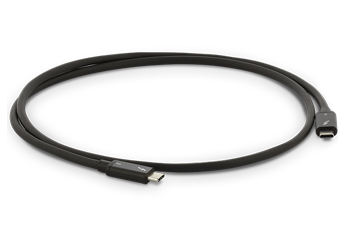

Thunderbolt 3 Cable (0.7-meter) Thunderbolt 3 Cable (0.7-meter) TCB-TB3-07M 0.7-meter Thunderbolt 3 (40Gbps) cable. Delivers full 40Gb/s bandwidth and supports 100W of Power Delivery (PD). Compatible with Sonnet ThunderLok 3.

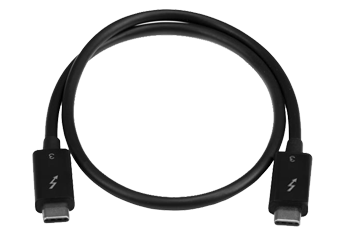

Thunderbolt 3 Cable (0.5-meter) Thunderbolt 3 Cable (0.5-meter) TCB-TB3-05M 0.5-meter Thunderbolt 3 (40Gbps) cable. Delivers full 40Gb/s bandwidth and supports 100W of Power Delivery (PD). Compatible with Sonnet ThunderLok 3.
