Elegant Mounting Solutions

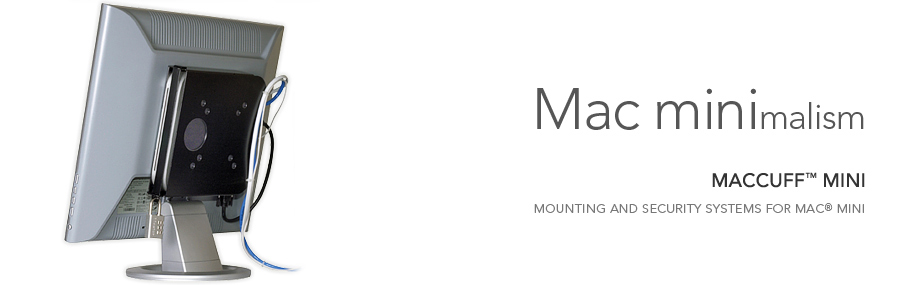

MacCuff miniMove your Mac mini off the desktop! Sonnet's MacCuff™ mini mounting and security systems free up desk space by securing your computer to the back of an LCD display (or mounting it under or on a desk or shelf) while allowing full access to its ports, slots, and power switch. How do you mount a computer to the back of a monitor? VESA mounting holes on the back of many LCD displays provide an ideal spot to attach MacCuff mini. Attached securely on the back of a display, your Mac mini disappears, leaving only cables to hide. To simplify that task, Sonnet supplies a special 35 cm-short monitor cable, and MacCuff mini also provides simple cable management to help cut the clutter.

MacCuff miniConstructed of rugged steel, MacCuff mini delivers a light touch—its refined double powder-coated finish won't scuff or scratch your Mac mini. The included locking bar provides theft deterrence when used properly. MacCuff mini's design leaves WiFi and Bluetooth antennas uncovered to ensure normal operations, so you don't need to worry about your computer's wireless performance. What about installation? Talk about simple— Sonnet provides the necessary hardware, and easy to follow instructions in case you actually need them. For back-of-monitor mounting, just use the four supplied machine screws to secure MacCuff mini. For under-desk mounting, simply tape the included drill hole guide to the surface, drill pilot holes, and then secure MacCuff mini using the four supplied wood screws. For tabletop mounting, flip MacCuff and Mac mini upside down (Mac mini forced-air cooling and hard drive will function in any orientation).

Key Features

Mounts your Mac mini to the back of a monitor, under or on a desk or table (screws included)

Rugged steel design with a refined finish that prevents scratches

Steel locking bar provides added security (lock not included)

Mounts to either VESA 75 or VESA 100 hole pattern

Provides simple cable management to secure power cord and other cables; prevents accidental unplugging

Eliminates monitor cable clutter with included 35cm monitor cable

Allows normal WiFi and Bluetooth operation with open-frame design

Simple installation with concise documentation

Shadow

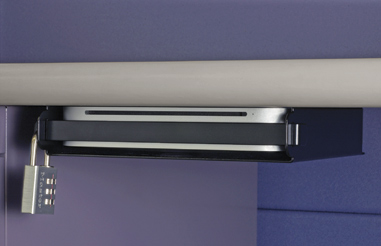

Your Mac mini slides in easily, but is held in place securely. Whether it's secured on the back of your display, or tucked away under your desk or mounted on a table, MacCuff mini brings elegant mounting minimalism to your Mac mini.

MacCuff mini

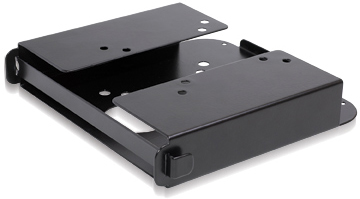

MacCuff minis feature a rugged steel frame with a refined, durable finish to prevent scratching, and provides a perfect space to place your Mac mini. With VESA mounting screw locations, you can easily install MacCuff mini to VESA-compatible LCD displays to create a sleek and minimal workspace. Or to help eliminate desktop cable clutter, attach MacCuff mini under or on a desk or shelf using the provided drill template and screws.





Part No.
CUFF-MIN-LH Discontinued
Hardware
Warranty 2-year
Form Factor Computer bracket
Dimensions (WxDxH) 7.9 x 8.3 x 1.6 in. (20.1 x 21 x 3.9 cm)
VESA Mount 75 mm or 100 mm hole pattern(2)
Lock Shackle
Maximum Diameter
9/32" (7 mm)
RoHS Compliant Yes
Package Contents
  • MacCuff mini Bracket
  • Locking bar(1)
  • 35 cm (14") HDMI cable
  • 4 wood screws
  • 4 machine screws
  • 2 cable ties
  • Documentation with drill template



Specifications subject to change without notice.









Compatibility

Mac mini [mid 2010 (4,1) through late 2018 (current)]

Apple® Airport Time Capsule®
(first-fourth generation; early 2008-mid 2011 square, low-profile models)


Technical Notes

  1. The locking bar included is intended for use as a theft deterrent and will provide added security ONLY when used with a lock.
  2. Not compatible with monitors that attach the monitor stand to the monitor using the VESA holes.
