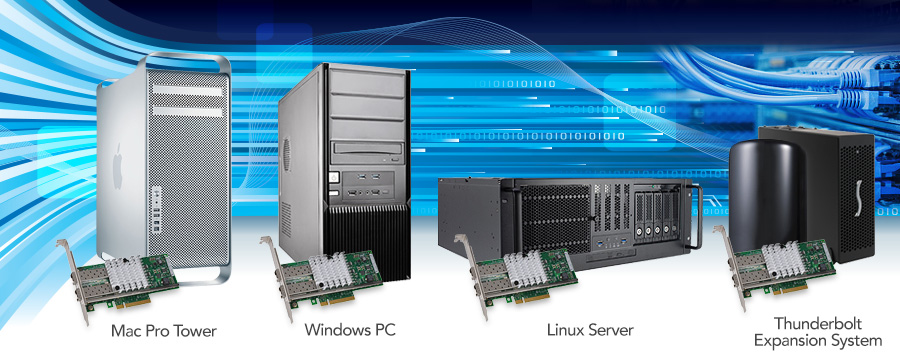

Computers with Presto 10GbE SFP+ PCIe Cards

10 Gigabit Cabled Networking

Ultra-Fast 10 Gb/s Network Connection

With increasing demands for greater data transfer speeds and more bandwidth over shared networks, and with specialized applications such as HD video editing using high-performance shared storage systems, it’s no wonder that 10 Gigabit Ethernet (10GbE) use has skyrocketed—this high-speed cabled networking standard offers ten times the performance of Gigabit Ethernet, the common wired network connection included with most computers today. Sonnet offers a powerfully simple way to add dual-port 10GbE connectivity to your Mac Pro® tower, Windows® PC, or Linux® server—the Presto™ 10GbE SFP+.(1)

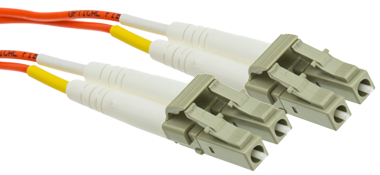

LC Optical Cables

Connect your computer to the switch or device’s 10GbE ports via LC optical cables



Key Features

Adds 10GbE Connectivity to Mac Pro Towers, Windows PCs, or Linux® Servers—Powerfully simple way to add high-performance 10GbE connectivity to your computer with PCIe slots

Optimized for Thunderbolt™—Ideal for use in Sonnet’s Echo™ Express and xMac™ Thunderbolt-to-PCIe card expansion systems

Connection Flexibility—Choose between two short-range or two long-range SFP+ optical transceivers (sold separately), two RJ45 SFP+ copper transceivers(1) (sold separately), or two SFP+-terminated “Direct Attach” twinax copper cables (sold separately) to connect the Presto card to your network or storage

Simple Setup—Low-profile x8 PCI Express® 2.0 card installs into an available slot, and after a simple driver installation, configures through OS X Network control panel or Windows Device Manager

Supports Transparent Failover—Keeps your computer connected in case a single cable is disconnected or one of the ports fails

Supports Link Aggregation (Teaming)—Increases throughput beyond what a single connection can sustain(2)

Shadow
10x the Performance of Gigabit Ethernet
Install. Connect. Configure. Speed! Icons

Simple Set-Up. High-Performance Computing.

The Presto 10GbE SFP+ dual-port 10 Gigabit Ethernet PCI Express 2.0 adapter card enables you to connect your computer to high-speed infrastructure and storage without stepping down in speed. Setup is simple—after installing the low-profile card into an available x8 or x16 PCIe slot in your computer, just download and install a driver, connect to the switch or device’s 10GbE port via LC optical cables (SFP+ optical transceivers and optical cables sold separately), CAT-6 or CAT-6A copper cables (RJ45 SFP+ copper transceivers and cables sold separately), or direct attach Twinax copper cables (sold separately), and then configure the card through macOS® Network control panel or Windows Device Manager. This Sonnet solution is perfect for high-performance computing where low latency, high bandwidth, and low CPU overhead are required.

Dual Ports IconIts increased throughput performance and low host-CPU utilization are achieved through functions such as support for flow control, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum off2loading, enabling your computer to perform better while large files transfers or high I/O operations take place. With its dual ports, this Sonnet adapter supports transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails, and it also supports link aggregation (teaming)(2) for increased throughput!

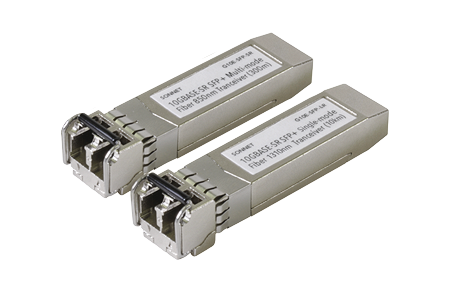

Sonnet SFP+ Transceivers



Flexibility of SFP+ Transceiver Choices

Sonnet offers three SFP+ transceiver options (sold separately)—a
short-range multi-mode fiber module (up to 300 meters), part number G10E-SFP-SR; a long-range single-mode fiber module (up to 10 kilometers), part number G10E-SFP-LR; and a 10GBASE-T copper module, part number G10E-SFP-T (Cat 6A cable up to 100 meters). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 10 meters long (sold separately).

Thunderbolt ConnectionsOptimized for Thunderbolt

Got a Thunderbolt connection, but no PCIe slot? Presto 10GbE SFP+ is ideal for use in one of Sonnet’s Echo Express or xMac Thunderbolt-to-PCIe card expansion systems—the combo enables you to add ultra-fast 10GbE network connections to any Mac® or Windows PC with a Thunderbolt 2 port.





10GbE Ethernet Networking Products Comparison Chart
Thunderbolt Adapters and PCIe Cards


Product
Interface(s)
10G Support
5G/2.5G Support
Controller
macOS
Windows
Linux, VMware
Solo10G
For computers with Thunderbolt 4 or Thunderbolt 3 ports
RJ45 Port CAT 6A (100m)
CAT 6 (55m)
CAT 5e (100m) Marvell AQC107S macOS 10.13.6+ Windows 11, 10 Linux Kernel 5.0+, ESXi 7
Solo10G SFP+
For computers with Thunderbolt 4 or Thunderbolt 3 ports
SFP+ Socket SFP+ SR Module Included   Marvell AQC100S macOS 10.13.6+ Windows 11, 10 Linux Kernel 5.0+, ESXi 7
Twin10G
For computers with Thunderbolt 4 or Thunderbolt 3 ports
2 x RJ45 Ports CAT 6A (100m)
CAT 6 (55m)
  Intel X540T2 macOS 10.12.6+ Windows 11, 10 Linux Kernel 5.0+, ESXi 7

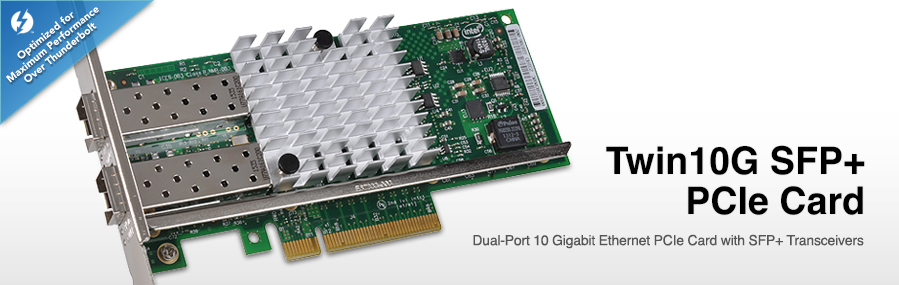

Twin10G SFP+
For computers with Thunderbolt 4 or Thunderbolt 3 ports
2 x SFP+ Sockets SFP+ Module*   Intel 82599 macOS 10.12.6+ Windows 11, 10 Linux Kernel 5.0+, ESXi 7
Presto 10GbE 10GBASE-T PCIe Card
For computers or Thunderbolt expansion systems with PCIe slots
2 x RJ45 Ports CAT 6A (100m)
CAT 6 (55m)
  Intel X540T2 macOS 10.8.5+ Windows 11, 10; Server 2022, 2019, 2016 Linux Kernel 5.0+, ESXi 7
Presto 10GbE SFP+ PCIe Card
For computers or Thunderbolt expansion systems with PCIe slots
2 x SFP+ Sockets SFP+ Module*   Intel 82599 macOS 10.8.5+ Windows 11, 10; Server 2022, 2019, 2016 Linux Kernel 5.0+, ESXi 7
Solo10G PCIe Card
For computers or Thunderbolt expansion systems with PCIe slots
RJ45 Port CAT 6A (100m)
CAT 6 (55m)
CAT 5e (100m) Marvell AQC107S macOS 10.13.6+ Windows 11, 10; Server 2022, 2019, 2016 Linux Kernel 5.0+, ESXi 7
Solo10G SFP+ PCIe Card
For computers or Thunderbolt expansion systems with PCIe slots
SFP+ Sockets SFP+ SR Module Included   Marvell AQC100S macOS 10.13.6+ Windows 11, 10; Server 2022, 2019, 2016 Linux Kernel 5.0+,VMWare 7
McFiver PCIe Card
For computers or Thunderbolt expansion systems with PCIe slots
RJ45 Port CAT 6A (100m)
CAT 6 (55m)
CAT 5e (100m) Marvell AQC113S macOS 12+ Windows 11, 10; Server 2022, 2019 Linux Kernel 5.4+

* 10GBASE-SR, 10GBASE-LR or 10GBASE-T SFP+ transceiver(s), or SFP+ cable(s) required, sold separately.

 Computer hardware shown in photos for illustration purposes; items sold separately. See package contents for items included with PCIe card.
See Tech Specs Tab for footnotes
Part No.
G10E-SFP-2XA-E2 Presto 10GbE SFP+ Dual-Port 10 Gigabit Ethernet PCI Express 2.0 Card

G10E-SFP-SR

SFP+ Transceiver (Short-Range)

G10E-SFP-LR

SFP+ Transceiver (Long-Range)

G10E-SFP-T

SFP+ Transceiver (10GBASE-T)

Hardware
Warranty 2-year
Form Factor Low-profile PCIe computer card
Transceiver Interface Type SFP+
Bus Interface PCI Express v2.0, x8
Controller Intel 82599
Network 10 Gigabit Ethernet
Link Aggregation
(Teaming)
Supported(2)
Packets Maximum packet size: 15872 bytes (jumbo frames)
Data Rate Supported Per Port 10 Gb/s
Advanced Features
  • Flow control support
  • Message Signaled Interrupts (MSI)
  • RSS (Receive-Side Scaling)
  • Interrupt coalescing
  • Multicast filtering
  • 64-bit address support for systems using more than 4GB of physical memory
  • Wake-on-LAN not supported
Stateless Offloads
  • TCP, UDP and IPv4 checksum offloading
  • TSO (TCP Segmentation Offload, AKA Large Send Offload)
  • LRO (Large Receive Offload)
RoHS Compliant Yes
Package Contents
  • Presto 10GbE Server 2-Port 10 Gigabit Ethernet PCI Express Card
  • Two mounting brackets(3)
  • Documentation



Specifications subject to change without notice.

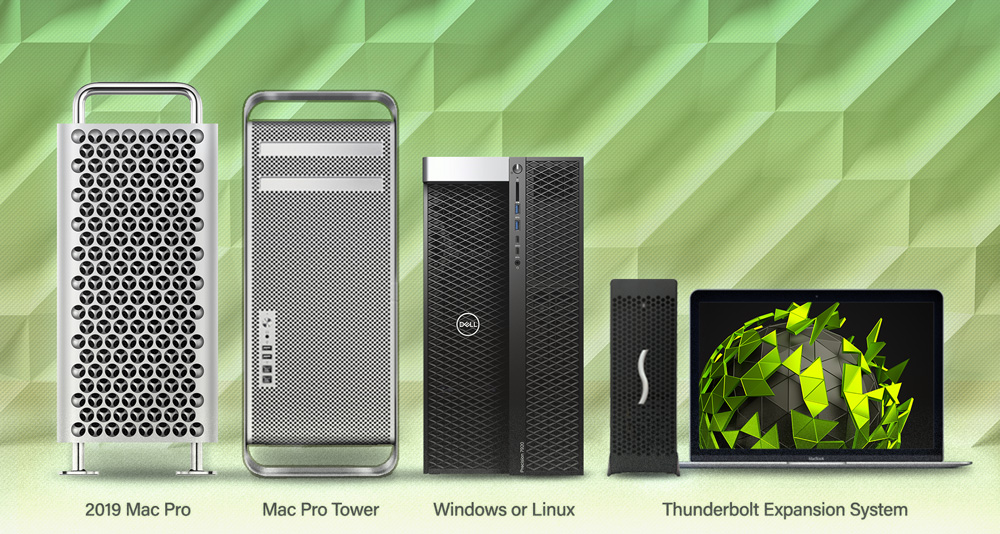

Computer Compatibility

Mac Pro® 3,1, 4,1, 5,1 or 7,1 (2019)

PC desktop or server

Thunderbolt expansion system

OS Compatibility

OS X 10.8.5+

macOS Ventura compatible

64-bit editions of Windows 11, 10; Server 2022, 2019, 2016

Linux
- RHEL 8.5/8.4
- SLES 15 SP3, 12 SP5
- Ubuntu 20.04 LTS, 18.04 LTS

FreeBSD 13.0/12.3

Thunderbolt Compatibility

Mac (Intel®) or PC via a Thunderbolt to PCIe Card Expansion System

Mac (M1) not currently compatible. See Big Sur Compatibility for status.


Technical Notes

  1. Connection requires SFP+ optical transceiver modules (with LC optical cables; sold separately), RJ45 SFP+ copper transceiver modules (with CAT-6 or CAT-6A cables; sold separately), or SFP+-terminated “Direct Attach” twinax copper cable (sold separately).
  2. Switch/router must support link aggregation (teaming) and ports must be configured for link aggregation.
  3. Package includes both low-profile and full-height mounting brackets.



Mac LogoWindows LogoLinux LogoroHS Logo

Accessories Part No. Description
SFP+ Transceiver (Short-Range) SFP+ Transceiver
(Short-Range)
G10E-SFP-SR Short-range multi-mode fiber module (up to 300 meters)
SFP+ Transceiver (Long-Range) SFP+ Transceiver
(Long-Range)
G10E-SFP-LR Long-range single-mode fiber module (up to 10 kilometers)
