xMac Pro Server with Modules


Expand & Secure Your Mac Pro

Building on the concept of our award-winning xMac mini Server for Mac® mini, we designed an expansion system that safely encloses the latest Mac Pro® into a tightly integrated 16" deep rackmount enclosure, incorporates PCIe card expansion with three PCIe 2.0 slots and 20Gbps Thunderbolt™ 2 technology, and provides the capability to add peripherals with optional Mobile Rack Device Mounting Kits.

xMac Pro Server Modules Location Animation

A.Mobile Rack Device Mounting Kit (optional)
B.PCIe Card Expansion Module (included)
C.Computer Mounting Module (included)

Learn More About Each ComponentArrow

The new Mac Pro is an object of desire, but a lustrous finish hides its true beauty within—massive power. If you’re a pro user in the video or audio industries, the Mac Pro offers the power you need, but lacks the built-in expandability you count on. In order to achieve this engineering feat, Apple® designers stripped away components and space to a minimum, taking out PCIe slots and drive bays, and packed the remaining components into a small cylinder. Its compact size makes the new Mac Pro more transportable and rackable, but prevents onboard installation of PCIe expansion cards. In addition, the computer still requires an enclosure to make it road- or rack-ready and provide convenient cable management.

Sonnet’s xMac™ Pro Server PCIe 2.0 expansion system/4U rackmount enclosure addresses these issues and increases a Mac Pro’s potential in a big way. With amazing expansion capabilities, an easy to maintain modular design, and support for a wide range of popular mobile racks, carts and portable rack cases, xMac Pro Server is the perfect solution for expanding the power of your Mac Pro.


RackMac Pro with Two Mac Pros Installed

Rear Panel Mount Cables
Panel-mount cables (HDMI, two Gigabit Ethernet, three USB 3.0, one 3.5 mm audio [out or in], and power) connect the ports on the back of each Mac Pro to ports on the back each Computer Mounting Module for convenient external connection.

RackMac Pro with Two Mac Pros Installed

New Faceplate & Thumbscrew Design
Because of the active electronics contained in each end of a Thunderbolt cable, panel-mount connectors for Thunderbolt cables do not exist; Thunderbolt cables must be connected directly to the computer. Sonnet has updated the xMac Pro Server to make that task, and accessing PCIe cards, easier. Screws on the back of the enclosure have been replaced with captive thumbscrews, and the faceplate has been split in two (with each faceplate remaining attached to its module), enabling you to secure, release, and slide out each module without the need of tools.

xMac Pro Server with Modules
Learn More About xMac Pro Server At WorkArrow


Mac Pro IconDesigned for the Mac Pro

xMac Pro Server houses the computer, a PCIe cards expansion module, and optional mobile rack kit equipment in a modular, rugged 4U steel enclosure.
Learn MoreArrow

Thunderbolt Logo IconFeatures Thunderbolt 2 Technology

20Gbps Thunderbolt 2 Technology and optical or copper Thunderbolt cables ensure maximum performance.
Learn MoreArrow

PCIe Card IconBroad PCIe Card Support

The PCIe Card Expansion Module supports three
high-performance PCIe cards, including AVID® Pro
Tools | HDX.
Learn MoreArrow


Main Key Features

Provides PCIe Card Expansion for Mac Pro—Use high-performance PCIe cards with the latest Mac Pro

Makes Your Mac Pro Road-Ready—4U rackmount enclosure securely holds the computer and PCIe cards in place, adding mobility to your Mac

Three PCIe Slots—Supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card

Thunderbolt 2 Interface—Maximum performance with Mac Pro; backward compatible with devices equipped with 10Gbps Thunderbolt technology

Improved Design—New captive thumbscrews and two faceplates enable easier computer and PCIe card installation, and simpler cable access

Power for High Performance PCIe Cards—Integrated 300W power supply provides plenty of power for any cards you install; 75W auxiliary PCIe power connector enables use of power hungry cards such as the Avid Pro Tools|HDX or the RED ROCKET-X

Provides Space for Additional Devices—Using optional Mobile Rack Device Mounting Kits, you can install HDDs, SSDs, a tape or optical drive, and more inside xMac Pro Server's enclosure

Complete Key Features ListArrow

xMac Pro Server Workstation

Expand Your xMac Pro Server Further with Mobile Rack Device Mounting Kits

Sonnet's Mobile Rack Device Mounting Kits enable you to add more expansion devices to your rack without taking up additional rack space. The Mobile Rack Device Mounting Kit includes an internal 100W power supply inside to power the installed devices, a large internal fan to quietly and efficiently cool the expansion kit, and mounting hardware to secure the devices and the kit itself. Preconfigured kits include the mobile rack peripherals, PCIe card, and necessary cables; you provide drives as necessary.

Learn MoreArrow

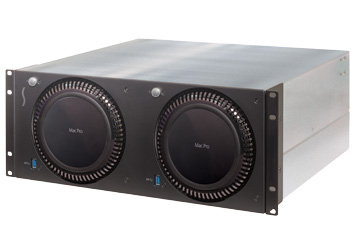

RackMac Pro with Two Mac Pros Installed

Simpler Mac Pro Rackmount Solution

If you like the idea and design of the xMac Pro Server, but don’t need the expansion capabilities it offers for your Mac Pro, consider Sonnet’s RackMac™ Pro rackmount enclosure for one or two Mac Pro computers. This 4U enclosure includes one or two Computer Mounting Modules (the same included with the xMac Pro) to secure the computers, and supports the installation of one Twin 10G Dual-Port 10 Gigabit Ethernet Thunderbolt 2 Adapter per computer. If you change your mind later about Thunderbolt-to-PCIe card expansion, you can add one or two Sonnet Echo Express III-R chassis to your setup.

Learn MoreArrow


Sonnet Thunderbolt Expansion Partners

Sonnet works closely with the following partners to ensure Thunderbolt compatibility for their products. See the PCIe Card Thunderbolt Compatibility Chart for an up-to-date list of products that have passed Thunderbolt compatibility testing with Sonnet products.

AdobeAJAAppleApogeeArecaATTOAudinateAvidBlack Magic DesignBlueFish 444CalDigitDeltacastExaSANFocusriteFusion ioHigh PointLynx Studio TechnologyMatroxMyricomNewer TechOWCREDRMESiennaSmall Tree Softron Media ServicesSolid State LogicStorageDNATandberg DataTolis GroupTools On AirUniversal Audio

 Mac Pro, PCIe cards, Mobile Rack Device Mounting Kits, Twin 10G, and cables shown in photos that are not included with
xMac Pro servers are shown for illustration purposes; items sold separately.
See Tech Specs Tab for footnotes
Mac Pro, PCIe cards, SSDs and mobile rack drives shown for illustration purposes; not included
