Technical Specifications

Mac, Windows, and Linux Logos

Compatibility

Mac Compatibility

  • Mac with Thunderbolt 3 ports
  • Accelerate games and applications run on the internal display (or Thunderbolt Display) by selecting the App, selecting “Get Info”, and checking “Prefer External GPU”(3)
  • Windows 10 support under Parallels Desktop 14 for Mac(4)
  • Attach two eGFX Breakaway Pucks to support up to eight external 4k monitors @60HZ
  • macOS Mojave 10.14.6+
  • macOS Catalina compatible
  • External GPUs not supported on Thunderbolt 2 or Thunderbolt Macs
  • External GPUs not supported on Windows 10 under Boot Camp

Windows Compatibility

  • eGFX-enabled Windows PC with a Thunderbolt 3 port
  • Windows 10 (64-bit Edition Version 1809 or greater)
  • 32-bit Windows and Windows 7 not supported

Linux Compatibility

  • Linux computer with Thunderbolt 3 ports
  • Linux Kernel 5.0+
  • Linux has only partial support at this time (can hot plug only once)

Monitor Compatibility

  • 1080P monitors using DP or HDMI ports
  • 4K monitors using DP or HDMI ports
  • 49” 5120x1440 Dual QHD monitors using a DP port:
  • Dell Ultrasharp 49 Curved Monitor U4919DW
  • LG 49 inch 32:9 UltraWide Dual QHD IPS Curved LED Monitor 49WL95C-W
  • Philips Brilliance 32:9 Superwide Curved LCD Display 499P9H/27
  • Samsung 49” CRG9 Dual QHD Curved QLED Gaming Monitor LC49RG90SSNXZA

Incompatible

  • Thunderbolt 3 only (without DP or HDMI inputs) monitors:

Hardware

Part Number

  • GPU-RX560-TB3-S (US/Canada/Mexico)
  • GPU-RX560-TB3-A (Australia)
  • GPU-RX560-TB3-E (Europe/Asia/Middle East)
  • GPU-RX560-TB3-J (Japan)
  • GPU-RX560-TB3-U (United Kingdom)

Warranty

  • 2-year

Form Factor

  • Portable external GPU system

Video Memory

  • 4GB GDDR5

Connectivity

  • Three DisplayPort 1.4, 4K@60Hz
  • One HDMI 2.0b, 4K@60Hz

External Connectors

  • One Thunderbolt 3
  • One 4-pin power DIN
  • Three DisplayPort
  • One HDMI

Supported Technologies

  • AMD Eyefinity™ Technology
  • AMD FreeSync™ Technology
  • AMD Eyefinity™ Technology
  • HDCP 2.2
  • HDR (High Dynamic Range)
  • DirectX® 12
  • Intelligent Fan Control
  • OpenCL 2.0
  • OpenGL 4.5
  • Metal

Power Delivery

  • Provides laptop charging up to 60W(5)

Power Adapter

  • Universal 180W, 100-240V AC, 50-60 Hz

Operating Temperatures

  • 0˚C to 35˚C (32˚F to 95˚F)

Dimensions (WxDxH)

  • 6 x 5.1 x 2 in. (15.2 x 13 x 5.1 cm)

Weight
(GPU-RX560-TB3-S)

  • Puck and Power Supply: 2.95 lbs (1.34 kg)
  • Complete Package: 4.75 lbs (2.15 kg)

RoHS Compliant

  • Yes

Package Contents

  • eGFX Breakaway Puck Radeon RX 560
  • Power adapter
  • Power cord
  • 0.5-meter Thunderbolt 3 (40Gbps) cable
  • Documentation

Support Links

Support Knowledge Base

Drivers, Documentation, FAQs

macOS eGPU Info

Official Thunderbolt-connected external graphics card support for the eGFX Breakaway Puck Radeon RX 560 is limited to macOS Mojave10.14.6 (and greater) and Thunderbolt 3 equipped Macs. See the PDF for compatibility details.

PDF Icon

Windows eGPU Info

PDF Icon

Product Manual

PDF Icon

Technical Notes

  • Ultrabooks with 45-60W AC power adapters that support Thunderbolt 3 Power Delivery (PD) may be powered and charged by the eGFX Breakaway Puck, even while gaming. Laptops with AC power adapters rated at 85-100W that support Thunderbolt 3 charging will accept 60W power from thePuck, but will slowly discharge. Connecting bus-powered storage to a laptop will draw additional power that may affect the charging (discharging) rate.When sleeping, any connected computer that supports Thunderbolt 3 charging will be charged to 100% by the Puck.
  • While the eGFX Breakaway Puck Radeon RX 560 features a 40Gbps Thunderbolt 3 interface, some computers equipped with Thunderbolt 3 use an x2 PCIe lane implementation of Thunderbolt 3 technology that limits PCIe performance to 20Gbps. Full performance also requires the use of the included Thunderbolt 3 (40Gbps) cable, or other Thunderbolt 3 (40Gbps) cables; look for the Thunderbolt icon AND the number 3 on the connector housings to identify these cables.
  • Ultimate gaming performance is attained by using a display attached to eGPU.
  • Must run Parallels on a display attached to eGPU. See Using eGPU with Parallels Desktop for Mac.
  • Discontinued model with part number GPU-RX560-TB3 provided only 45W of power charging.

Accessories

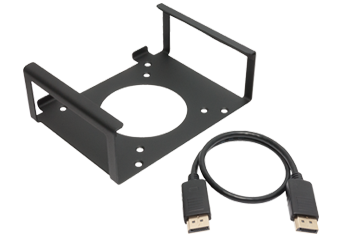

PuckCuff

PuckCuff VESA Mounting Bracket Kit

Part No. CUFF-PUCK

  • VESA mounting kit for eGFX Breakaway Puck
  • Mounts eGFX Breakaway Puck to the back of a compatible VESA monitor or multi-monitor stand
Thunderbolt 3 Cable (2-meter)

Thunderbolt 3 Cable (2-meter)

Part No. TCB-TB3-2M

  • 2-meter Thunderbolt 3 (40Gbps) cable
  • Delivers full 40Gb/s bandwidth
  • Supports 100W of Power Delivery (PD)
  • Compatible with Sonnet ThunderLok 3L
Thunderbolt 3 Cable (0.7-meter)

Thunderbolt 3 Cable (0.7-meter)

Part No. TCB-TB3-07M

  • 0.7-meter Thunderbolt 3 (40Gbps) cable
  • Delivers full 40Gb/s bandwidth
  • Supports 100W of Power Delivery (PD)
  • Compatible with Sonnet ThunderLok 3
Thunderbolt 3 Cable (0.5-meter)

Thunderbolt 3 Cable (0.5-meter)

Part No. TCB-TB3-05M

  • 0.5-meter Thunderbolt 3 (40Gbps) cable
  • Delivers full 40Gb/s bandwidth
  • Supports 100W of Power Delivery (PD)
  • Compatible with Sonnet ThunderLok 3
