Compatibility

Mac Compatibility

• Mac Pro 14,8 (2023)
• Mac Pro 7,1 (2019)
• Mac Pro 5,1
• macOS 10.12+
• macOS Sequoia compatible

Windows Compatibility

• Windows computer with available full-height PCIe slot
• Windows 11 and 10

Linux Compatiblity

• Linux computer with an available full-height PCIe slot
• Linux Kernel 5.4.0+

Hardware

Part Number

• USB3-7PM-E

Warranty

• 2-year

Form Factor

• Full-height PCIe computer card

Bus Interface

• PCI Express 2.1 x1

External Connectors

• Six USB 3.2 Gen 1 Type A ports

Internal Connector

• One USB 3.2 Gen 1 Type A port

Peripherals Supported

• Industry standard USB 3.2 Gen 1&2, 3.1 Gen 1&2, 3.0, 2.0, and 1.1

Bus-powered Peripherals Supported

• HD, SSD, etc.
• 0.5W per port for operation

Cables Supported

• USB 3 with Standard-A male connector
• USB 2.0 with Standard-A male connector

Chipset

• Fresco Logic FL1100EX

USB Standard

• Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards

UASP

• USB attached SCSI protocol supported under macOS, Windows 11 and 10

Hot Plug

• Supports hot-pluggable and hot swappable device connection

Boot Support

• Computers do not support booting from any USB 3 PCIe cards

Operating Temperatures

• 0ºC to 35ºC (32ºF to 95ºF)

Compliance

• RoHS 3 (Directive 2015/863)
• IEC62368-1 and IEC62368-2 Safety

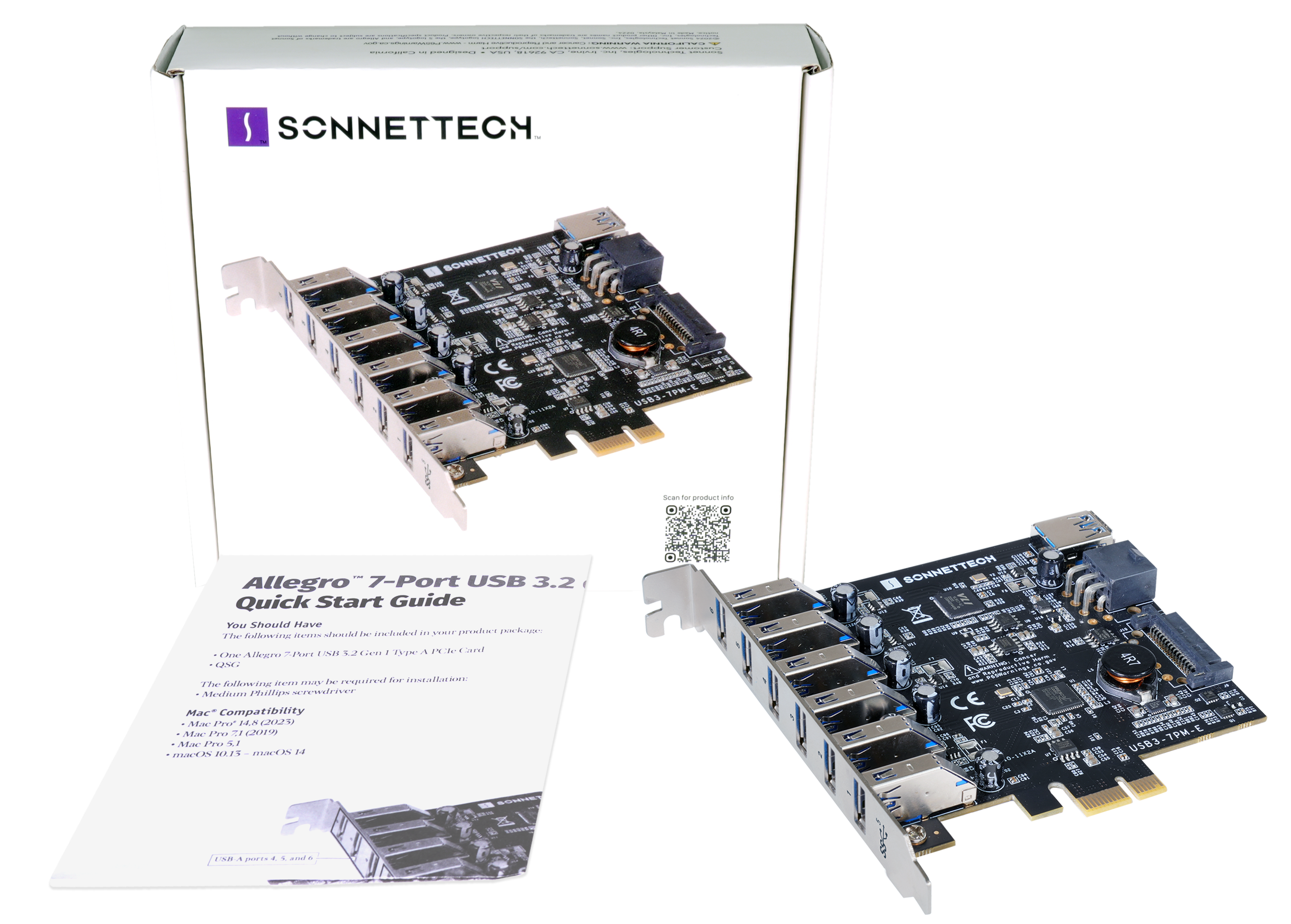

Package Contents

• Allegro 7-Port USB 3.2 Gen 1 Type A PCIe Card
• Documentation
