3-slot Desktop Thunderbolt 3 Expansion System for PCIe Cards, Optimized for Use with Multiple Pro Tools | HDX PCIe Cards

Connect Three Full-length PCIe Cards to Computers with Thunderbolt 3 Ports

For pros working in the creative fields, a computer’s processing power alone is not enough to get the job done. Prime examples are the latest MacBook Pro®, and Mac mini®, which, while offering great performance, lacks the PCIe expansion slots necessary to support specialty cards that connect pro video and audio inputs, transcode data, and connect to high-speed storage and networks. Instead of slots, these computers include high-performance Thunderbolt™ 3 ports to support peripherals. Sonnet’s Echo™ Express III-D (Thunderbolt 3 HDX Edition) is a pro-level, desktop Thunderbolt™ 3 to PCIe card expansion system that enables you to connect your computer to three full-length PCIe cards at the same time.

Sound Mixer
Singer
Sound Mixer
Musicians
Qualified for Pro Tools
No extra parts or configuration necessary – ready right out of the box for up to three Pro Tools | HDX PCIe cards

Optimized to support up to three Pro Tools | HDX PCIe cards, Sonnet's Echo Express III-D (Thunderbolt 3 HDX Edition) is Avid qualified, compatible and ready for use out of the box, no extra parts or special configuration necessary! It has been tested and approved for use with Pro Tools HD 12 software, and is qualified by the Avid Audio group for use with Pro Tools HDX and HD Native systems. See this Sonnet FAQ and the Avid website for ProTools System Requirements and Compatibility.

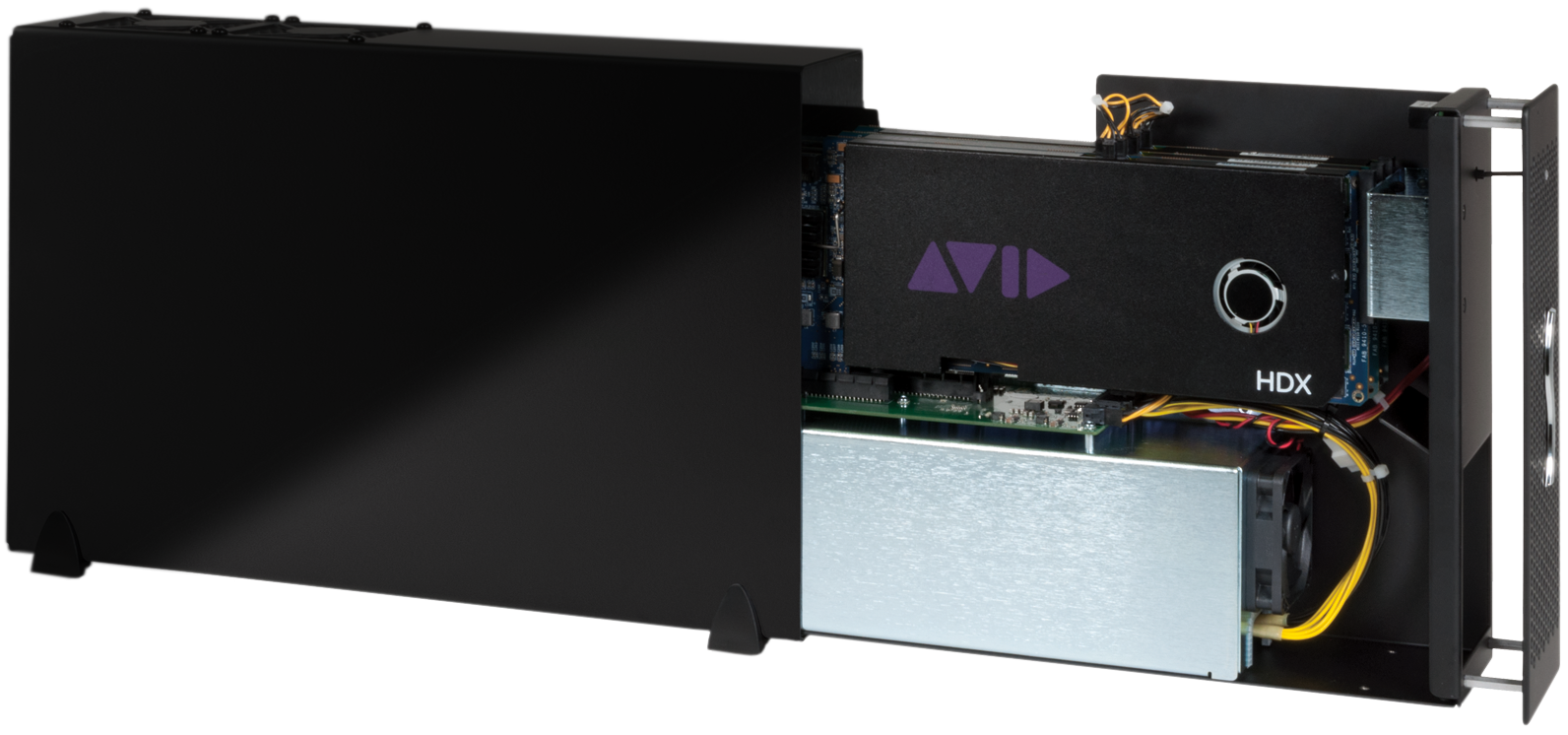

Echo Express III-D (Thunderbolt 3 HDX Edition) with Avid HDX Cards

Avid Pro Tools | HDX cards sold separately

Echo Express III-D (Thunderbolt 3 HDX Edition) with MacBook Pro
Avid HDX PCIe Card Connected to Thunderbolt Computer

The Thunderbolt 3 Connection

Through a simple Thunderbolt 3 connection, add professional PCIe cards (three full-height, single-width cards, or one double-width card plus one single-width card) including audio interface, video capture, storage expansion cards, additional USB 3 interfaces, and 10 Gigabit Ethernet.

Key Features

Avid HDX PCIe Card Icon

Optimized for HDX

Use one, two, or three Pro Tools | HDX PCIe cards with computers with Thunderbolt 3 ports.

Number 3 Icon

Three PCIe 2.0 Slots

Supports three full-height, single-width cards, or one double-width card plus one single-width card.

40Gpbs Icon

Thunderbolt 3 Interface

Offers up to 1750 MB/s of PCIe bandwidth to the installed cards.

Performance Icon

Pro Performance

Every Thunderbolt 3 compatible, non-GPU card supported regardless of length or height.

Thunderbolt 3 Ports Icon

Two Thunderbolt 3 Ports

One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.

Sound Icon

Remarkably Quiet

Temperature-controlled, variable-speed fans automatically and quietly cool the card.

Energy Saver Icon

Energy Saver Mode

Powers on/off automatically with the computer.

Rugged Icon

Rugged Aluminum Housing

Provides robust and secure protection.

Power Icon

Pro Power

Integrated 300W power supply with 75W auxiliary power; Thunderbolt daisy chain port provides up to 15W of power to connected peripherals.

Free Lifetime Tech Support
PCIe Cards

Every Thunderbolt 3 Compatible, Non-GPU Card Supported

Echo Express III-D supports three single-width, full-length PCIe cards, or one double-width, full-length card plus one single-width card, enabling it to support every Thunderbolt 3 compatible, non-GPU PCIe 1.1, PCIe 2.0, and PCIe 3.0 card available. Do you have a card in mind but aren’t sure it’s compatible? We’ve put together a list in our supporting PCIe Card Thunderbolt Compatibility Chart (PDF). There you’ll find cards identified as conforming to Thunderbolt technology requirements, and organized by fit and power compatibility with specific expansion system.

Echo Express III-D (Thunderbolt 3 Edition) Icon

All Around Smart Design

Aluminum Enclosure. Auto Power On/Off.

Echo Express III-D is wrapped in a rugged, yet lightweight aluminum outer shell, resulting in a system light enough to carry without weighing you down, yet sturdy enough to securely protect the installed PCIe cards. Since Echo Express products automatically power on and off with your computer, there is no power switch on the chassis, ensuring you don’t waste energy by forgetting to turn it off.

Three PCIe 2.0 Slots

Sonnet’s Echo Express III-D supports three full-size PCIe cards, up to 12.28 inches (full-length) long. The III-D integrates a universal 300W power supply and includes a 75W PCIe power connector for cards that require supplementary power, such as the Avid Pro Tools|HDX. Even with all that power, the III-D is enviro-friendly; it automatically powers on or off whenever the connected computer powers on (or wakes), or powers off or sleeps, respectively.

Power Icons
Echo Express III-D (Thunderbolt 3 Edition) Interior View
x16 and x18 PCIe Cards Icon

Echo Express III-D features one x16 plus two x8 PCIe slots for versatile card support

1. Three PCIe 3.0 slots
2. 75W auxiliary power connector
3. 300W power supply

Fan Icon

Quiet Operator

Echo Express III-D is designed to be ultra-quiet so that it can be comfortably used in noise-sensitive environments. Its two large, slow-spinning fans, enhanced with computer-modeled airflow management, ensure that even hot-running cards remain reliably cool without the need to install an extra PCIe blower card that would prevent the use of one of the three slots. Because the fans automatically speed up and slow down as needed, you don’t have to guess which speed setting to select, and there’s no need for tools to change settings.
Thunderbolt 3 Cable with ThunderLok 3

Included at No Extra Charge

Thunderbolt 3 Cable. ThunderLok 3.

Sonnet includes a 0.7-meter Thunderbolt 3 (40Gbps) cable that, unlike some other cables, transfers data at Thunderbolt 3’s full 2750 MB/s bandwidth, and supports up to 100W of Power Delivery (PD). Sonnet also provides a ThunderLok 3 Thunderbolt connector retainer clip(1) that prevents accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.

ThunderLok 3 Connection
Thunderbolt Icon

40Gbps Thunderbolt 3 Interface

Echo Express III-D (Thunderbolt 3 HDX Edition) features a Thunderbolt 3 interface and yields up to 1750 MB/s of bandwidth for the installed cards, providing more than enough bandwidth to support three Pro Tools | HDX cards at full performance.

Thunderbolt 3 Port Info Icon

Thunderbolt 3 –
The USB C That Does It All

Echo Express III-D (Thunderbolt 3 HDX Edition) includes two Thunderbolt 3 ports; the first connects it to your computer, while the second supports daisy chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer. The III-D also includes 10Gbps USB 3.2 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter. For connected peripherals requiring extra power, 15 watts is provided to connected bus-powered devices. With the ability to handle multiple demanding, high performance PCIe cards, support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz(2), and support for a vast array of Thunderbolt(3) and USB(4) devices, Thunderbolt 3 is a leap forward in every way.

Thunderbolt 3 Port Info Icon
Thunderbolt 3 Daisy Chain Diagram
Connect computer to one port on the Echo Express III-D (Thunderbolt 3 HDX Edition) and daisy chain up to 5 additional Thunderbolt devices (plus two 4K monitors, one 5K display, or one USB 3.0 device)

Rackmount Version Available

Echo Express III (Thunderbolt 3 HDX Edition) is available in two versions, the III-D (desktop) and III-R (rack mount), to suit your workflow needs. The III-R mounts in a rack space 2U tall, and is only 16 inches deep, making it perfect for use in a wide range of popular mobile racks, carts, and rack cases, and in server rooms as well. The III-R even saves space for other equipment—with an optional Mobile Rack Device Mounting Kit, you can install one or two mobile rack devices in the III-R’s rack enclosure.

Echo Express III-R
See Tech Specs for footnotes.
Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
