Mac Compatibility
- macOS 15+
- macOS Tahoe compatible
- M1, M2, M3(1) base models
- M4, M5 base models
- M1, M2, M3, M4 Pro and Max models
- Intel Macs that support macOS 15+
- M4 Max models
- M5 Pro and Max models
View
Displays Compatibility PDF for details
Windows Compatibility
- Windows 11 (24H2, or newer, with latest update)
- Intel CPU Generation Support(2)
- 11th Gen (Not Compatible)
- 12th Gen (Compatible)
- 13th Gen (Compatible)
- 14th Gen (Compatible)
- Core Ultra 1 (Compatible - see Tech Note 3 regarding SSD speed)
- Core Ultra 2 (Compatible - see Tech Note 3 regarding SSD speed)
- Ryzen 7040/8040 with USB4
- Ryzen AI 300+ laptops with USB4
- Typically supports one display (but may be none or two)
Intel Windows Computer Display Support Through One Thunderbolt Port
- Computer with Thunderbolt 5 port(s) and integrated graphics supports two displays
- Computer withThunderbolt 4 port(s) supports two displays
- Computer with Thunderbolt 5 port and a discrete GPU typically supports three displays (may support only two displays if the computer has a second Thunderbolt port)
View
Displays Compatibility PDF for details
Chromebook Compatibility
- Current ChromeOS
- Chromebook with a Thunderbolt 5 or 4 ports
- Chromebook with USB4 ports
iPad Pro Compatibility
- Current iPadOS
- M series iPad Pro
- Note: M1/M2 iPad Pro supports one mirrored monitor; M4/M5 iPad Pro supports one extended or mirrored display
Displays Compatibility
For computers and displays compatibility information, see the following PDF
HDR Compatibility
Part Number
- ECHO-DK13-0TB5 (without SSD)
- ECHO-DK13-1TB5 (with Kingston 1TB SSD)
- ECHO-DK13-2TB5 (with Kingston 2TB SSD)
- ECHO-DK13-4TB5 (with Kingston 4TB SSD)
Warranty
Form Factor
Internal Connector (without SSD Model)
Internal Built-in SSD Storage (with SSD Models)
- Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD
- Configured with 1TB, 2TB, or 4TB module
NVMe SSD Compatibility
- “A” Serial Number Docks with SSD Included Have Upgrade Compatibility Limited to the Following SSDs
- Kingston NV3 (only SSDs purchased from Sonnet)(4)(5)
- Western Digital/SanDisk SN850X
- SanDisk Optimus GX Pro 850X/WD_BLACK SN850X
- “B” Serial Number Docks
SSDs Tested for Compatibility and Recommended for Maximum Performance (Select SSDs without Heatsink)
- Kingston Fury Renegade
- Kingston Fury Renegade G5
- Samsung 990 Pro
- Samsung 9100 Pro
- SanDisk Optimus GX PRO 850X/WD_BLACK SN850X
- SanDisk Optimus GX PRO 8100/WD_BLACK SN8100
External Connectors
- Four Thunderbolt 5 ports
- Three USB-A charging ports (10 Gbps USB 3.2 Gen 2)
- USB-A port (5 Gbps USB 3.2 Gen 1)
- RJ45 2.5 Gigabit Ethernet port
- 3.5 mm combination audio headphone/microphone jack
- UHS-II SD card slot
- UHS-II microSD card slot
- Power connector
Thunderbolt 5 Computer Port
- Provides 140W laptop charging
- Any Thunderbolt 5 cable (0.8-meter included)
Thunderbolt 5 Peripherals Ports
Note that the downstream ports are not necessarily Thunderbolt 5 ports; they are the same as the host ports (Thunderbolt 5, Thunderbolt 4, or USB4).
- Thunderbolt 5
- Thunderbolt 4
- Thunderbolt 3
- USB4 v2
- USB4
- All USB 3, 2.0 and 1.1 devices
- USB hubs
- Thunderbolt 5, 4, and 3 and USB-C monitors
- DisplayPort and HDMI monitors (adapter required)
- Charging (Front Panel Peripheral Port)
- 60W capacity to fast charge iPad, iPhone, or other device
- USB-C charging
- Supports simultaneous charging and syncing
- Charging (Back Panel Peripheral Ports)
- 15W capacity each to charge iPad, iPhone, or other device
- USB-C charging
- Supports simultaneous charging and syncing
USB-A Ports (Front Panel)
- USB 3, 2.0, and 1.1 devices
- USB hubs
- 7.5W capacity to charge iPad, iPhone, or other device
- USB Battery Charging 1.2–compliant
- Supports simultaneous charging and syncing
USB-A Port (Rear Panel)
- USB 3, 2.0, and 1.1 devices
- USB hubs
RJ45 (Ethernet) Port
- Supports 2.5GBASE-T, 1000BASE-T, and 100BASE-TX network speeds and Auto-MDI/MDI-X
- Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 Specifications
- Maximum packet size: 9000 bytes (Jumbo packets)(6)
SD and microSD Card Slots
- SD, SDHC, SDXC
- microSD, microSDHC, and microSDXC
Power Delivery
- Provides laptop charging up to 140W
Power Adapter
- Universal 180W, 100-240V AC, 50-60 Hz
Operating Temperatures
- 0˚C to 35˚C (32˚F to 95˚F)
Dimensions (WxDxH)
- Dock: 8.7 x 3.8 x 1.3 in. (22.0 x 9.7 x 3.4 cm)
- Power Supply: 3.2 x 6.6 x 1 in. (8.2 x 16.8 x 2.6 cm)
Weight
- Dock and Power Supply: 1.75 lbs (0.8 kg)
- Complete Package: 2.65 lbs (1.2 kg)

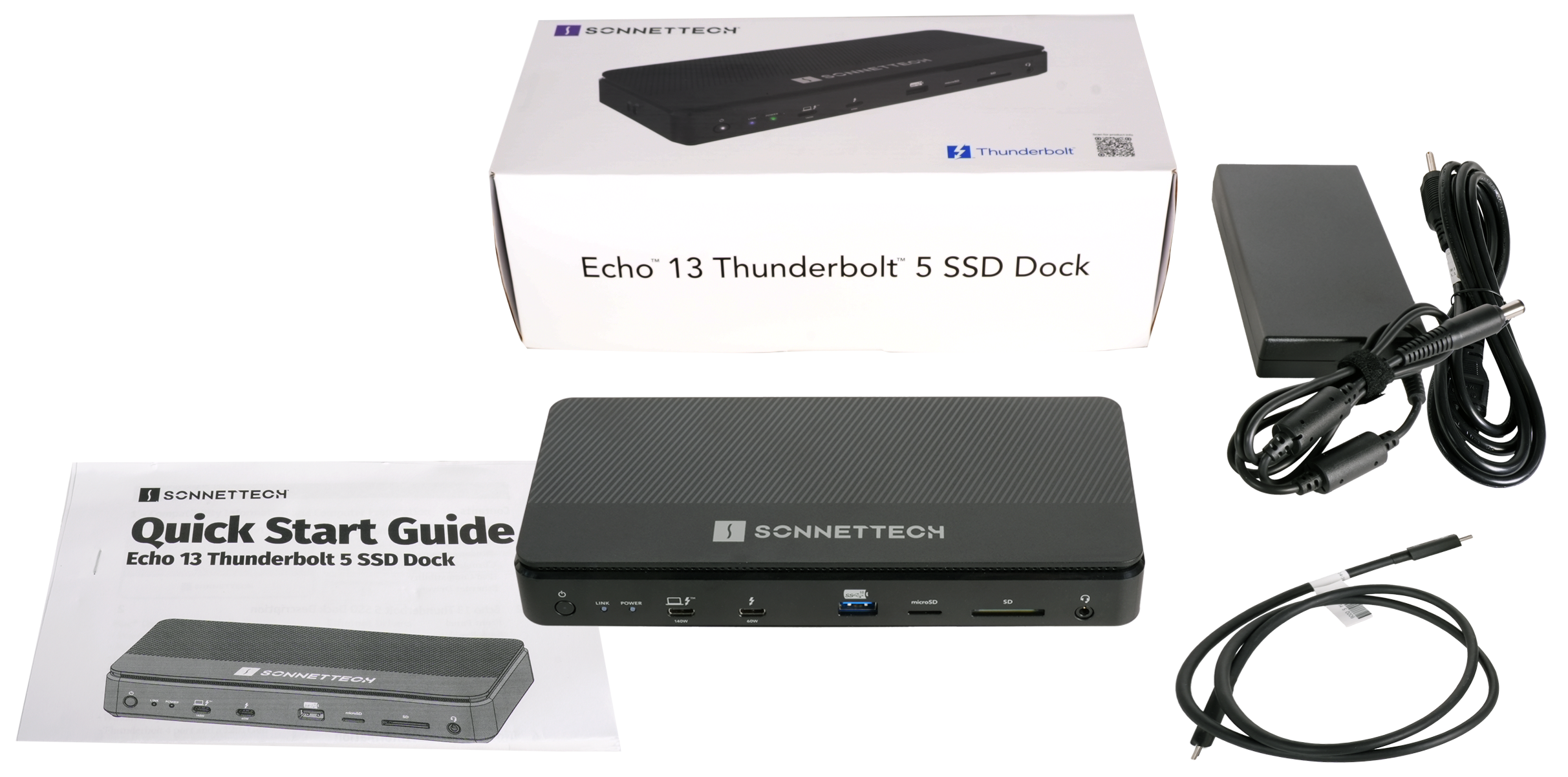

Package Contents
- Echo 13 Thunderbolt 5 SSD Dock (without SSD, or with 1TB, 2TB, or 4TB SSD)
- Power adaper
- Region specific power cable
- 0.8-meter Thunderbolt 5 cable
- Documentation
- Your performance may vary, depending on host connection type (Thunderbolt 5, 4, 3, or USB4), CPU, OS, SSD format, and transfer size.
- To check CPU Generation go to Settings: System: About
Examples to decode generation:
Intel® Core™ 14xxx x.xxGHz -> 14th Gen
Intel® Core™ Ultra x 2xx x.xxGHz -> Core Ultra 2
- Some Core Ultra 1 and 2 computers may limit 4TB SSD speeds to around 800 MB/s. Full performance is expected with 1TB and 2TB models.
- Kingston NV3 2TB and 4TB SSDs support up to 5000 MB/s write; 1TB up to 4000 MB/s write.
- Kingston NV3 SSDs have several versions. Sonnet has locked on a revision compatible with all versions of the Echo 13 Thunderbolt 5 SSD Dock. Not all Kingston NV3 SSDs are compatible.
- macOS maximum packet size 1500 bytes.
