Echo 13 Triple 4K Display Dock

USB-C Dock with Three DisplayPort Ports, Three HDMI Ports, Gigabit Ethernet Port, Four 5Gbps USB Ports, and 10Gbps USB-C 20W Charging Port

Mac® | Windows® | Chromebook™

Compatible with

Apple® M1/M2/M3 Macs and Thunderbolt™ 3 Intel® Macs
Thunderbolt 3/4, USB-C (with Alt Mode DP), and USB4® Windows computers
Thunderbolt 3/4, USB-C (with Alt Mode DP), and USB4 Chromebooks

Buy Now

Triple the External Displays Supported

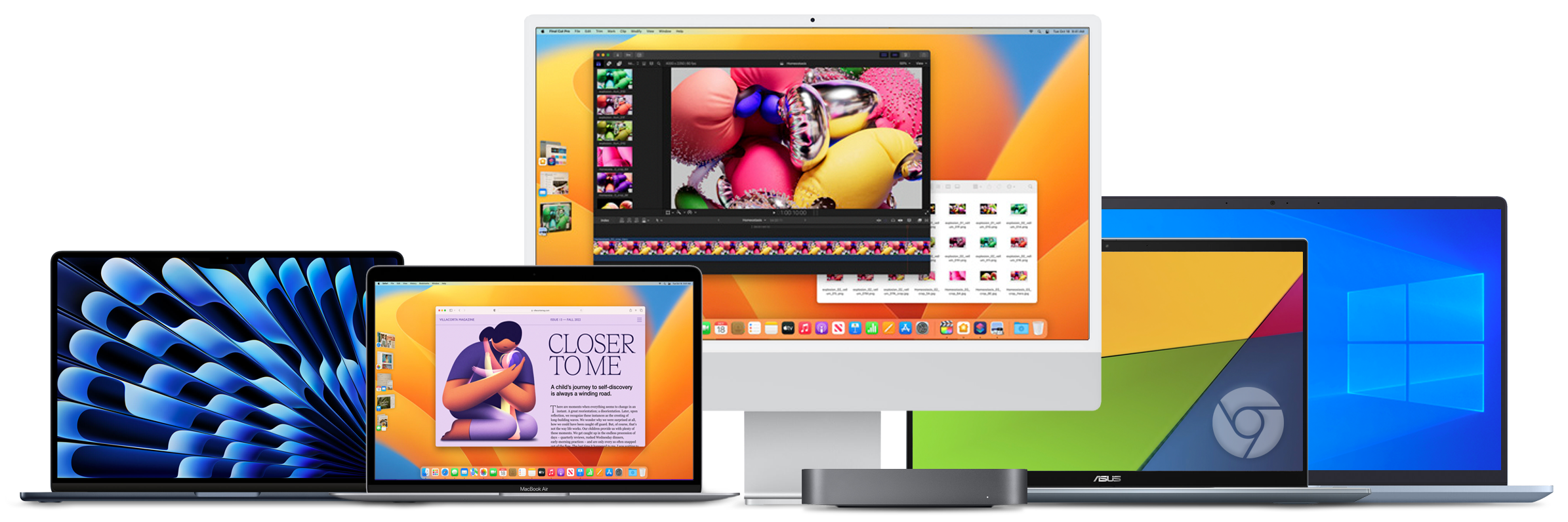

M Series Macs, Chromebook, and Windows Laptop

Apple M1/M2/M3 Mac computers offer outstanding overall performance but have a limit to the number of external displays you can connect to them. If you’re using an M1/M2 MacBook Air®, M1/M2 13-inch MacBook Pro®, or M3 14-inch MacBook Pro that number is one. Featuring DisplayLink™ technology, the Sonnet Echo™ 13 Triple 4K Display Dock beats the limit, enabling you to simultaneously connect three 4K @60Hz DisplayPort or HDMI displays to a single port on your compatible Mac, Windows, and Chromebook computer.

Echo 13 Triple 4K Display Dock Front Panel

Echo 13 Triple 4K Display Dock Back Panel

All the Ports You Need

MacBook Air with Echo 13 Dock and Three 4K Displays

The Triple Advantage

Connect Three 4K Displays Without Compromise

There are several choices in docks that support three displays — don’t choose the wrong one. Some multi-display docks only support slower 30Hz refresh rates, or a 60Hz refresh rate on one display and 30Hz refresh rates on the others. Some offer 4K display support on only one port, while others only offer 1080P (HD) display support. Some include only one type of display connection. Some support only Windows. Echo 13 Triple 4K Display Dock is not some other dock: it simultaneously supports three 4K @60Hz display, HDMI or DisplayPort (DP) or mixed, even when used with an M1 or M2 MacBook Air computer.

Connect via HDMI, DisplayPort, or Mixed

Echo 13 Triple 4K Display Dock to Other Three Display Docks Comparison Chart

Woman Working with Productivity Apps On Three Displays

Efficiency Booster

Expand Your Applications Workspace

Perfect for use with productivity software such as Microsoft® Office, Echo 13 Triple 4K Display Dock enables you to work more efficiently by expanding your workspace. Whether you need to open multiple applications on their own screens, edit code or view multiple spreadsheets in detail on large displays, or track the stock market, Echo 13 makes it possible.

A Display for Every Workspace

Plug In

Your Peripherals and Power Your Computer with One Cable

Connect your monitors, USB peripherals, and Ethernet cable to the dock and then link them all to your computer with a single USB-C cable. Got a laptop computer? Echo 13 Triple 4K Display Dock powers it with up to 100W of charging power. When it’s time to leave, just unplug the USB-C cable, grab your computer, and go.

Up to 100W of Charging Power

iPhone with Fast-charge Icon and M.2 NVMe SSD with Enclosure

Powerful

10Gbps USB-C 20W Charging Port

Echo 13 Triple 4K Display Dock features a USB 3.2 Gen 2 (10Gbps) Type-C port up front to support super-fast USB NVMe SSDs at full speed. An added benefit for the port is its support for the USB Type-C Charging spec, enabling the dock to fast-charge your iPhone® or another device even when the computer is sleeping, shutdown, or disconnected.

Supports USB-C Fast Charging

even when the computer is sleeping, shut down, or disconnected

Echo 13 Triple 4K Display Dock Connection Workflow Diagram

Headphone Jack
Plug in your stereo headphones

Display Connection 1
‍Connect a DP or HDMI 4K @60Hz display; uses computer’s
built-in video

Microphone Jack
‍Plug in your monaural mic

Display Connection 2
‍Connect a second DP or HDMI 4K @60Hz display; uses DisplayLink application or driver installation

Fast UHS-II SD Card Slot
‍Ingest media from SD cards, or microSD cards (with adapter)

Display Connection 3
‍Connect a third DP or HDMI 4K @60Hz display; uses DisplayLink application or driver installation

USB 3.2 Gen 2 Type-C 20W Charging Port
‍Connect and power a fast USB-C SSD, or connect and fast-charge your phone

Gigabit Ethernet Port
Connect to a wired network

Computer/Charging (10Gbps USB-C) Port
‍Connect your computer; can provide 100W of Power Delivery to charge your laptop

Four USB 3.2 Gen 1 Type A Ports
Connect a thumb drive, USB video camera, printer, digital camera

Headphone Jack
Plug in your stereo headphones

Microphone Jack
‍Plug in your monaural mic

Fast UHS-II SD Card Slot
‍Ingest media from SD cards, or microSD cards (with adapter)

USB 3.2 Gen 2 Type-C 20W Charging Port
‍Connect and power a fast USB-C SSD, or connect and fast-charge your phone

Computer/Charging
(10Gbps USB-C) Port
‍Connect your computer; charges a laptop with up to 100W of power

Display Connection 1
‍Connect a DP or HDMI 4K @60Hz display; uses computer’s built-in video

Display Connection 2
‍Connect a second DP or HDMI 4K @60Hz display; uses DisplayLink application or driver installation

Display Connection 3
‍Connect a third DP or HDMI 4K @60Hz display; uses DisplayLink application or driver installation

Gigabit Ethernet Port
Connect to a wired network

Four USB 3.2 Gen 1 Type A Ports
Connect a thumb drive, USB video camera, printer, digital camera

Key Features

One Cable Peripheral Connection

Instant access – plug three displays and other peripherals into the Echo dock and connect your computer to the dock with the included 100W-rated USB-C cable.

Connect Three 4K @60Hz Displays

Supports three DP or HDMI displays (or a mix).

10Gbps USB Type-C 20W Charging Port

Front panel USB 3.2 Gen 2 USB-C port supports the USB Type-C Charging spec and can provide 20W of power, supporting super-fast device charging, bus-powered 10Gbps USB 3 hubs, and Gen 2 USB NVMe SSDs at full speed.

5Gbps USB Type A Ports

Four USB 3.2 Gen 1 USB-A ports support a wide variety of peripherals and can provide 7.5W of power each.

Charge Your Laptop

Can provide 100W of Power Delivery through the included USB-C cable to power and charge your laptop.

Fast UHS-II SD Card Slot

Compatible with SD™, SDHC™, and SDXC™ memory cards; supports 320 MB/s read speeds with UHS-II SDXC cards. Also supports microSD™ cards when used with adapter.

Apple M1/M2/M3 and Intel® Compatible

Supports M1/M2/M3 Macs (excepct Pro/Max/Ultra versions) and Thunderbolt 3 Intel Macs.

Windows Compatible

Supports Windows computers with Thunderbolt, USB-C (with Alt Mode DP), or USB4 ports.

Chromebook Compatible

Supports Chromebook computers with Thunderbolt, USB-C (with Alt Mode DP), or USB4 ports.

Free Lifetime Tech Support

‍Sonnet was established in Irvine, California in 1986. Since then, we’ve pioneered and brought to market many innovative and award-winning products that enhance the performance and connectivity of Mac, Windows, and other industry-standard computers. Many of our employees have been with the company for more than 20 years. We have a wealth of knowledge about our current and past products. Should you ever need technical support on one of our products, contact us; we’ll be around to help you.

Handy

USB-A Peripheral Connections

Echo 13 Triple 4K Display Dock includes four USB-A ports to connect peripherals such as a thumb drive, USB video camera, printer, and digital camera. Unlike some other docks, Echo 13 doesn’t skimp on power either — each USB-A port can provide 7.5W and is designed to ensure that drives with higher peak power requirements mount without fail.

Each Port Can Provide 7.5W

Man Using Notebook with Backpack Next to Him

Charge On

Leave the Charger In Your Bag

Connected to your laptop computer with the included 100W rated USB-C cable, Echo 13 Triple 4K Display Dock can provide 100W of power (Power Delivery) from its rear-mounted Computer/Charging port. It can power and charge your computer while connected, even when not in use, allowing you to leave your computer’s power adapter packed away.

See Tech Specs for footnotes.
Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
