Fusion Dual 2.5-inch SSD RAID
Fusion Dual 2.5-inch SSD RAID
SSDs sold separately

Fusion Dual 2.5-inch SSD RAID

Dual 2.5-inch SSD PCIe 3.0 card with hardware RAID controller,
plus 10Gbps USB-C port • Add your own SSDs

Add up to 8TB of SSD Storage!
Install Two 2.5-inch SATA SSDs into a PCIe Card Slot
If you need faster, high-capacity internal storage for your desktop computer or server, 2.5-inch SATA SSDs are the cost-effective choice. Sonnet’s Fusion™ Dual 2.5-inch SSD RAID PCIe card enables you to upgrade your system in a flash, mounting one or two SSDs (sold separately) with up to 8TB capacity(1) in a single full-length PCIe card slot, with no power or data cables, adapters, or mounting trays required.
Install into a Thunderbolt Expansion System
Thunderbolt Expansion System
Install into the new 2019 Mac Pro
Mac Pro 2019
Install into a Legacy Mac Pro (and move to a 2019 Mac Pro later)
Legacy Mac Pro
Install into a Windows or Linux Computer
Windows or Linux Computer

Great 2-Drive Hardware RAID 0 Performance

Install the Sonnet Fusion card into a PCIe 3.0 slot of a computer or Thunderbolt 3 expansion system and achieve great transfer speeds up to 1000 MB/s!

Performance Graph - Read at 1000 MB/s
Performance Graph - Write at 850 MB/s

Still use a Mac Pro 5,1 tower? Enjoy performance up to 770 MB/s now, and migrate the Sonnet card to the new Mac Pro (2019) to enjoy even better performance.

Performance Graph - Read at 770 MB/s
Performance Graph - Write at 720 MB/s
RAID 0 Diagram

Disk Striping

Increases performance by interleaving data into blocks (stripes) across two or more drives simultaneously to increase speed.

Fast RAID 1 Performance

Looking for the safety of a simultaneous backup? RAID 1 performance of up to 540 MB/s may be obtained with any compatible computer or expansion system.

Performance Graph - Read at 540 MB/s
Performance Graph - Write at 480 MB/s
RAID 1 Diagram

100% Redundancy

If primary drive crashes, the mirrored drive will automatically replace the primary drive.

Compatible with 2019 Mac Pro

Key Features

SSD Icon

Add up to 8TB of SSD Storage

Mounts two cost-effective 2.5-inch SATA SSDs (sold separately) in a full-length PCIe slot.

Performance Icon

Great SSD Performance

Supports data transfers speeds up to 1000 MB/s(2).

RAID Controller Icon

Onboard Hardware RAID Controller

Supports RAID 0, RAID 1, Span, and JBOD configurations in macOS®, Windows, and Linux.

USC Type-C Icon

USB 3.2 Gen 2 USB-C Port

Includes SuperSpeed USB-C 10Gbps port to connect a fast external drive.

USB Performance Icon

Great USB Performance

Supports data transfers speeds up to 1000 MB/s(3).

Power Icon

Power for Peripherals

Supports a USB bus-powered SSD, SSD RAID, or hard drive device with up to 15W power.

Thunderbolt Icon

Optimized for Thunderbolt

Use in Sonnet Thunderbolt expansion systems at full performance!

Mac, Windows & Linux Icon

Mac, Windows & Linux Compatible

Supports Mac, Windows, and Linux computers with PCIe 3.0 slots.

Free Lifetime Tech Support
Hardware RAID Controller Icon

Hardware RAID Controller Onboard

A high performance RAID controller manages the SSDs you install, supporting Fast (RAID 0), Safe (RAID 1), Volume (Span) and, particularly important to pro audio users, JBOD (Just a Bunch of Disks) configurations, so you can choose the mode that best suits your needs:
Fast Icon
Fast

Choose RAID 0 for the best performance.

Safe Icon
Safe

Choose RAID 1 for a mirrored backup of your data.

Volume Icon
Volume

Choose Span to create a single large volume bridging both drives.

JBOD Icon
JBOD

Choose JBOD (Just a Bunch of Disks) to work with twice as many audio tracks.

Regardless the mode you select, changing the configuration is easy – with no software to install or jumper blocks to move around, a turn of a switch and the press of a button is all it takes.
Fusion Dual 2.5-inch SSD RAID Bracket
USB Type-C Icon

Fast USB Speed and Plenty of Power for Bus-powered Devices

Sonnet’s Fusion Dual 2.5-inch SSD RAID card also includes a SuperSpeed USB-C (USB 3.2 Gen 2) port that supports data transfers of up to 1000 MB/s(3), and provides up to 15W of power to support bus-powered devices—you can connect a fast external drive without installing another card.

Thunderbolt Icon

Thunderbolt Port? Connect Two SSDs Through One Cable

Got a Thunderbolt connection, but no PCIe card slot? Fusion Dual 2.5-inch SSD RAID card provides full performance and is ideal for use in a Sonnet Thunderbolt 3 or Thunderbolt 2 edition Echo™ Express III-D, III-R, or xMac™ Thunderbolt to PCIe card expansion system. The combo enables you to add two SSDs plus a USB-C port to any Mac or Linux computer with Thunderbolt 2 or Thunderbolt 3 ports, or Windows PC with Thunderbolt 3 ports.

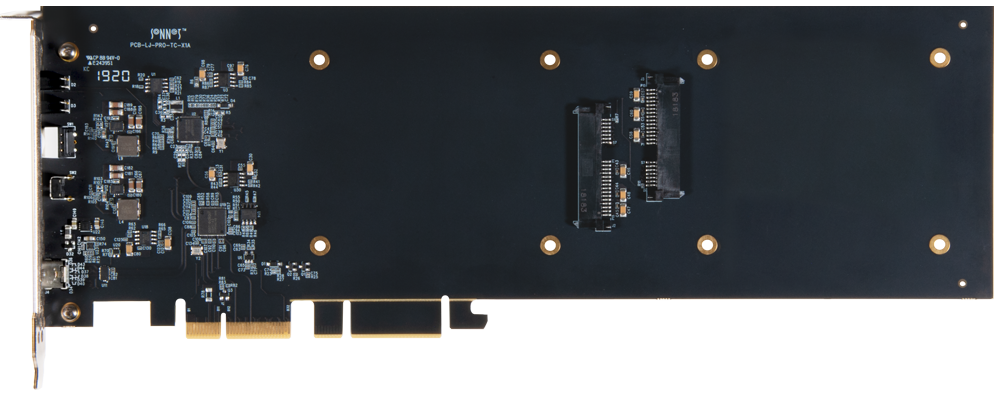

Fusion Dual 2.5-inch SSD RAID without SSDs
Fusion Dual 2.5-inch SSD RAID with SSDs
SSDs sold separately
See Tech Specs for footnotes.
Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
