Fusion Dual U.2 SSD PCIe Card
Add up to 32TB of Enterprise SSD Storage!

Fusion Dual U.2 SSD PCIe Card

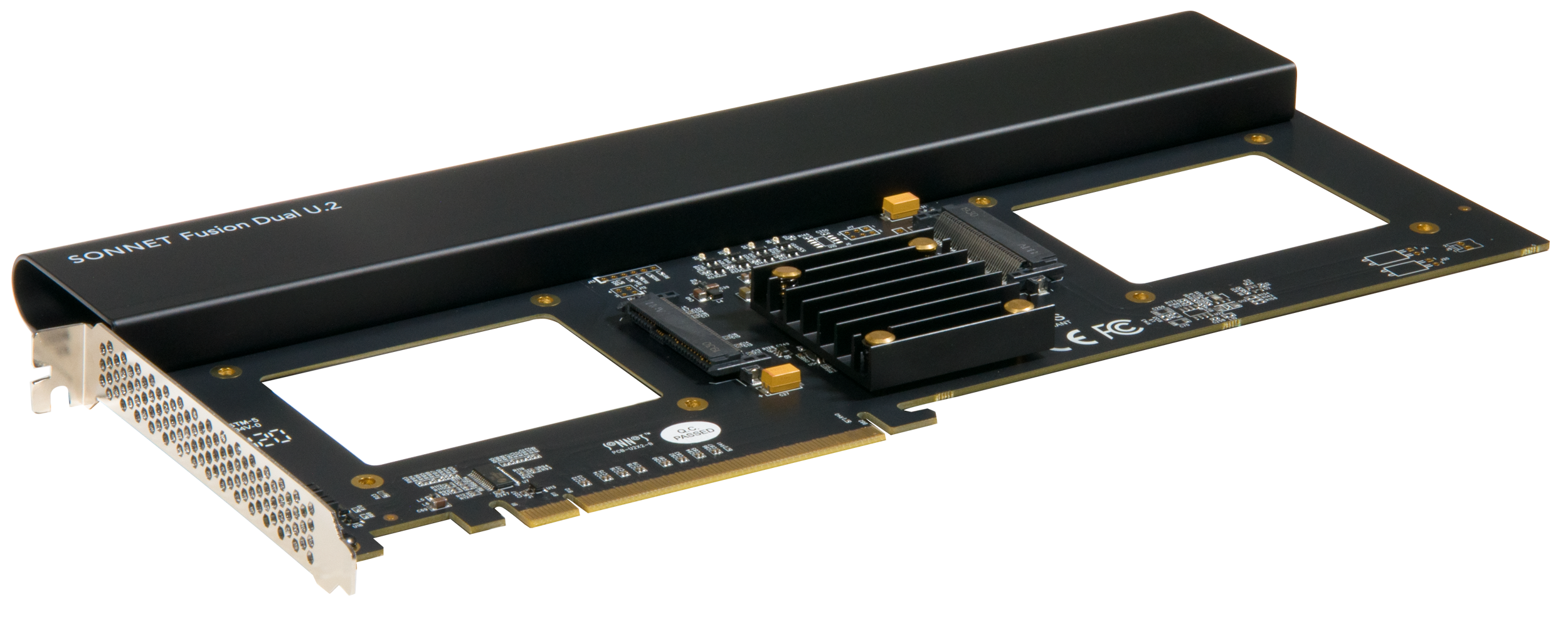

Two U.2 NVMe SSD Connectors on a PCIe 3.0 x16 Card • Add Your Own U.2 SSDs

Buy Now
2019 Mac Pro
2019 Mac Pro®
Classic Mac Pro
Mac Pro 5,1
Windows PC Tower
Windows® or Linux® Computer
Echo Express III-D Thunderbolt 3 Expansion System with MacBook Pro
Thunderbolt™ Expansion System

The Most Economical Way to Add Ultra-fast, Extra-large Capacity SSD Storage

Do you need more storage capacity for your computer? Is super high-speed throughput plus maximum IOPS (Input/Output Operations Per Second) performance critical to your work? U.2 NVMe PCIe SSDs deliver both. Sonnet’s Fusion™ Dual U.2 SSD PCIe Card enables you to upgrade your system in a flash, mounting two enterprise class U.2 SSDs with up to 32TB or greater capacity(1) in a single full-length x16 PCIe card slot, with no separate power or data cables, drive adapters, or mounting trays required.

U.2 NVMe SSDs
Choose Your Own U.2 SSDs
Install into any compatible x16 PCIe slot
Fusion Dual U.2 SSD Straight On View
Enterprise Class Performance & Capacities
Familiar Size and Shape, Different Connector and Interface
SATA & U.2 Connector Types
U.2 SSDs look like 2.5-inch SATA drives — they even share the same general dimensions and mounting screw hole placement, but their connectors are different, and so is their performance. Unlike SATA drives, U.2 NVMe SSDs interface with your computer’s PCIe bus, enabling them to perform seven times as fast.
Striking Performance
How fast? Current PCIe 3.0 U.2 SSDs deliver sustained performance of up to 3500 MB/s read and 3500 MB/s write, or about 7x the performance of the fastest SATA SSDs.
High Capacities
Many U.2 SSDs are now available in capacities up to 16TB — perfect for storing large video projects—with higher capacity models on the horizon. Sonnet’s Fusion Dual U.2 SSD PCIe Card will support bigger SSDs as they become available.

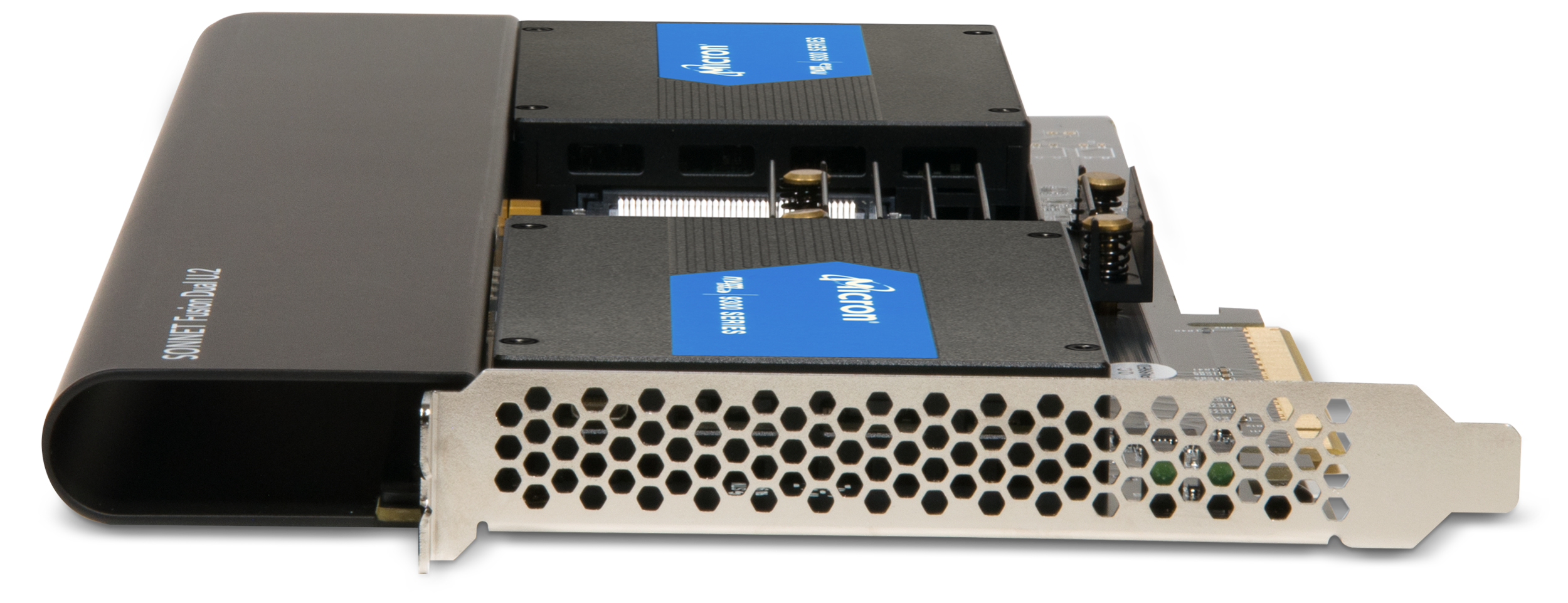

Fusion Dual U.2 SSD Bracket View
Fantastic RAID 0 Performance
Install the Fusion Dual U.2 SSD PCIe Card with your SSDs into your system and configure the SSDs as a RAID 0 set for even greater storage performance.

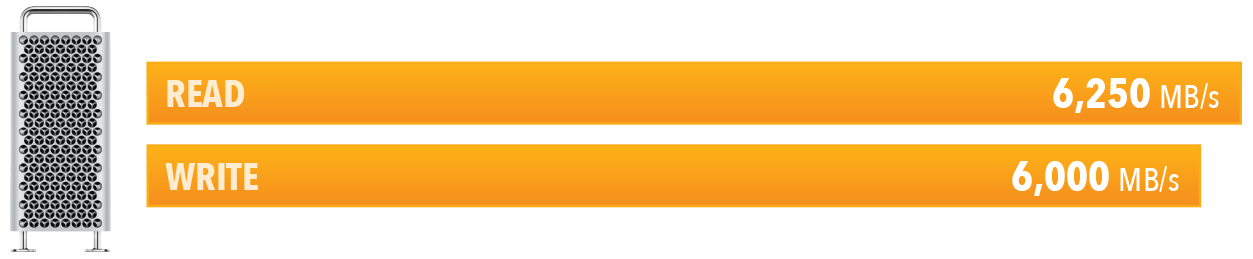

2019 Mac Pro Speed Charts
Performance based on ATTO Disk Benchmark (available on the Apple® App Store) test results with two Micron 9300 7.68TB NMVe drives with 64MB transfer size and macOS 10.15.6 using SoftRAID software. See our Fusion Dual U.2 SSD PCIe Card Performance PDF for additional benchmarks and details.

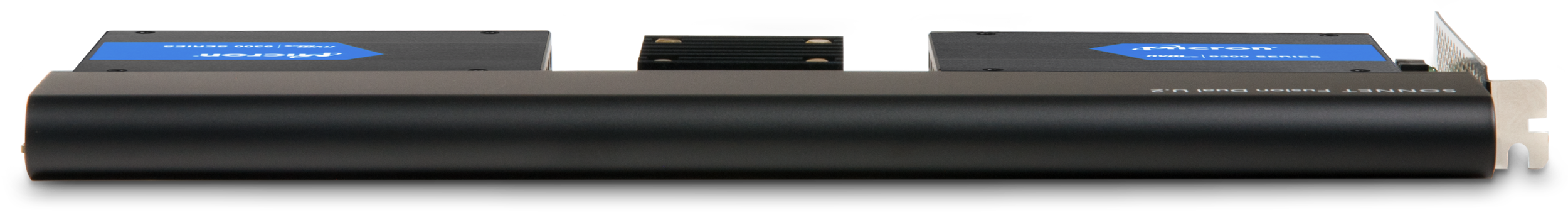

Fusion Dual U.2 SSD Edge View
Sonnet Advantages – Full Performance Design
The Fusion Dual U.2 SSD PCIe Card is a full-height, full-length PCIe 3.0 card with an x16 (x8 electrical) interface, designed to support full performance from two U.2 NVMe PCIe SSDs. The Sonnet card features:
x16 PCIe Bridge Icon
PCIe Bridge

Devotes four lanes of PCIe 3.0 bandwidth to each SSD installed

Self-contained Icon
Self-contained

Doesn’t require a specific motherboard to operate or specific SSDs to support RAID features — No PCIe bifurcation is required

Universal Compatibility Icon
Universal Compatibility

Mac®, Windows, and Linux compatible

U.2 SSD Icons
Mounting Support for Two U.2 SSDs

Connect and mount directly to the card, no power or data cables, adapters, or mounting trays required

Compatible with 2019 Mac Pro

Key Features

32TB Icon

Add up to 32TB(1) Ultra-fast Storage

Mounts two U.2 NVMe SSDs (sold separately) in an x16 PCIe slot.

High-performance PCIe Interface Icon

High-Performance PCIe Interface

PCI Express 3.0 x8 host bus interface is bridged to the SSDs, devoting four lanes of PCIe 3.0 bandwidth to each installed SSD.

Performance Icon

Fantastic Performance

Achieve sustained RAID 0 transfer speeds up to 6,250 MB/s(2).

RAID Support Icon

RAID Support

Supports macOS®, Windows, and Linux RAID 0 and 1 configurations.

macOS Boot Support Icon

macOS Boot Support

Supports booting from a single (non-RAIDed) attached SSD.

Thunderbolt Icon

Optimized for Thunderbolt

Use in Sonnet Thunderbolt 3 expansion systems to connect two enterprise SSDs through one cable with performance up to 2750 MB/s.

NVMe Compliant Icon

NVMe Compliant

No drivers required.

S.M.A.R.T. Operation Icon

S.M.A.R.T. Operation

Supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) data reporting.

Free Lifetime Tech Support
Elegant and Seamless Design
Classic Mac Pro Icon

Mac Pro 5,1 User?

Mac Pro 5,1 users can install macOS on one SSD to create an incredibly fast boot drive and use the other installed SSD as a super-fast media storage or scratch drive. The Fusion Dual U.2 SSD PCIe Card makes it possible.

Silent and Cool Running
Unlike M.2 SSDs, which require heatsinks to be attached to enable stable performance, U.2 SSDs are designed with their cases acting as heatsinks—that means installation is much easier. As a result, the Fusion Dual U.2 SSD PCIe Card doesn’t need a fan to keep the SSDs cool enough to enable them to maintain their high performance at all times.
U.2 SSDs sold separately
Thunderbolt Icon

Connect Two Enterprise SSDs Through One Cable to Your Computer without Slots

Got a Thunderbolt connection, but no PCIe card slot? Sonnet’s Fusion Dual U.2 SSD PCIe Card is ideal for use in one of our Thunderbolt 3 expansion systems that accept full-length PCIe cards. The combo enables you to add two U.2 NVMe SSDs to any Mac computer with Thunderbolt 2 or Thunderbolt 3 ports, or Windows or Linux computer with Thunderbolt 3 ports.

S.M.A.R.T. Icon

Simple and S.M.A.R.T

NVMe compliance ensures that integrating a Fusion Dual U.2 SSD PCIe Card into your system is easy—the necessary drivers are installed automatically. The Fusion card uses your computer’s built-in drive formatting utilities to format the SSDs. SSD health monitoring is supported through S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) data reporting, too.

See Tech Specs for footnotes.
Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
