Dual-port SFP+ 10 Gigabit Ethernet Thunderbolt 3 Adapter

Blazing-fast 10GbE Connectivity Over Thunderbolt 3 for Mac, Windows, and Linux Computers

Are you looking for the most economical dual-port approach to connecting to a high-speed 10 Gigabit Ethernet (10GbE) fiber network using the Thunderbolt 3 port on your computer? You’ll need an adapter. Sonnet’s Twin10G™ SFP+ (Thunderbolt™ 3 Edition) adapter is the powerfully simple solution for adding blazing-fast dual-port 10GbE network connectivity to any Mac®, Windows®, or Linux® computer with Thunderbolt 3 ports.

Twin10G SFP+ (Thunderbolt 3 Edition) with iMac

Flexibility of SFP+ Transceiver Choices

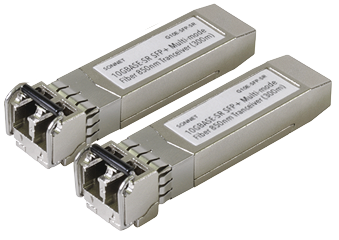

Sonnet offers three SFP+ transceiver options (sold separately)—a short-range multi-mode fiber module (up to 300 meters), part number G10E-SFP-SR; a long-range single-mode fiber module (up to 10 kilometers), part number G10E-SFP-LR; and a 10GBASE-T copper module, part number G10E-SFP-T (CAT 6A cable up to 30 meters). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 10 meters long (sold separately).

More Bandwidth

Equipped with two SFP+ sockets, the Twin10G SFP+ (Thunderbolt 3 Edition) adapter supports ten times the performance of Gigabit Ethernet and more bandwidth over shared networks.

Key Features

10GbE Icon

Adds High-performance 10GbE SFP+ Connectivity

Simply powerful way to add dual 10GbE SFP+ connections to your Mac, Windows, or Linux computer with Thunderbolt 3 ports.

Connection Icon

Connection Flexibility

Your choice of connections (sold separately): short-range or long-range SFP+ transceivers, 10GBASE-T SFP+ transceivers, or SFP+ direct-attach Twinax copper cables.

Setup Icon

Easy Setup

Configure the adapter's settings using operating system tools.

40Gpbs Icon

40Gbps Thunderbolt 3 Interface

Offers 2750 MB/s of PCIe bandwidth, doubling the performance of Thunderbolt 2(1).

Thunderbolt 3 Ports Icon

Two Thunderbolt 3 Ports

One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.

Rugged Icon

Compact. Rugged. Nearly Noiseless.

Adapter is rugged and small enough to sit on most any work surface, and quiet enough for use in noise-sensitive environments.

Transparent Failover Icon

Supports Transparent Failover

Keeps your computer connected in case a single cable is disconnected or one of the ports fails.

Link Aggregation Icon

Supports Link Aggregation (Teaming)

Increases throughput beyond what a single connection can sustain in some applications(2).

Power Icon

Power for Peripherals

Provides up to 15W of power to connected peripherals.

Free Lifetime Tech Support

Free Lifetime Tech Support

Sonnet was established in Irvine, California in 1986. Since then, we’ve pioneered and brought to market many innovative and award-winning products that enhance the performance and connectivity of Mac, Windows, and other industry-standard computers. Many of our employees (including engineers) have been with the company for more than 20 years (some have been here since the beginning). We have a wealth of knowledge about our current and past products. Should you ever need technical support on one of our products, contact us; we’ll be around to help you.

Twin10G (Thunderbolt 3) Icon

Compact and Nearly Noiseless

Small enough to easily fit in most workspaces, the Twin10G SFP+ (Thunderbolt 3 Edition) adapter is still large enough to support proper airflow inside the case—its design enables the adapter’s temperature-controlled, variable-speed fan to keep the adapter running cool and whisper-quiet at all times, making it suitable for use in noise-sensitive environments. Constructed of rugged and lightweight aluminum, the adapter’s outer shell securely protects the inner circuitry.

Easy to Set Up

Simply connect the Twin10G SFP+ (Thunderbolt 3 Edition) adapter to your computer via the included Thunderbolt 3 (40Gbps) cable, download and install a driver, install SFP+ module(s) (sold separately), connect the adapter to the network switch or directly to 10GbE-enabled storage, and configure the adapter’s settings through the macOS® Network control panel, Windows Device Manager, or Linux command line (or graphical utility).

Setup Icons

Intelligent Operation

The Twin10G SFP+ adapter’s high throughput performance and low host-CPU utilization are attained through functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading. These operations enable your computer to perform better while large files transfers or high I/O operations take place. This Sonnet adapter’s dual 10GbE connections support transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails, and also support link aggregation (teaming)(2) for increased throughput!

Intelligent Operation Icon
Thunderbolt Logo

Thunderbolt 3
The USB-C That Does It All

Thunderbolt  3 ports; the first connects the adapter to your computer, while the second supports daisy-chaining of up to five additional Thunderbolt peripheral devices(3) to a single port on your computer. The Sonnet adapter includes 10Gbps USB  3.1 Gen  2 support, meaning you can connect a USB device(4) to the second port using the proper cable or adapter. The Twin 10G also provides full support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz(5). For connected devices requiring extra power, 15 watts is provided to connected bus-powered devices.

Thunderbolt 3 Cable with ThunderLok 3

Included at No Extra Charge

Thunderbolt 3 Cable. ThunderLok 3.

Sonnet includes a 0.7-meter Thunderbolt 3 (40Gbps) cable and a Sonnet ThunderLok 3 Thunderbolt connector retainer clip(6) to avoid accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.

ThunderLok 3 Connection

Why Choose Sonnet for 10Gb Ethernet Networking?

10 Gigabit Ethernet Family Banner
  • One Provider – Every 10GbE Option
  • Single- and Dual-port 10GbE Adapters
  • SFP+ (Optical) Adapters
  • Thunderbolt and PCIe Card Adapter Options
  • Adapters for both Thunderbolt 2 and Thunderbolt 3 Computers
  • We are 10Gb Ethernet Experts

10GbE Ethernet Networking Products Comparison Chart

Thunderbolt 3 and Thunderbolt 2 Adapters • PCIe Cards
Solo10G PCIe Card

Solo10G PCIe Card

Learn More

Interface(s)

  • RJ45 port

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Aquantia AQC107S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10, 8, 7
  • Server 2016, 2012

Linux, FreeBSD, VMware

  • Linux
Solo10G SFP+ PCIe Card

Solo10G SFP+ PCIe Card

Learn More

Interface(s)

  • SFP+ Socket

10G Support

  • SFP+ SR Module Included

5G/2.5G Support

-

Controller

  • Aquantia AQC100S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10, 8, 7
  • Server 2016, 2012

Linux, FreeBSD, VMware

  • Linux
Presto 10GbE PCIe Card

Presto 10GbE PCIe Card

Learn More

Interface(s)

  • 2 x RJ45 port

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Intel x550

macOS §

  • macOS 10.8.5+

Windows

  • Windows 10, 8, 7
  • Server 2016, 2012, 2008 R2

Linux, FreeBSD, VMware

  • Linux
  • FreeBSD
  • VMware
Presto 10GbE SFP+ PCIe Card

Presto 10GbE SFP+ PCIe Card

Learn More

Interface(s)

  • 2x SFP+ Sockets

10G Support

  • SFP+ Module*

5G/2.5G Support

-

Controller

  • Intel 82599

macOS §

  • macOS 10.8.5+

Windows

  • Windows 10, 8, 7
  • Server 2016, 2012, 2008 R2

Linux, FreeBSD, VMware

  • Linux
  • FreeBSD
  • VMware
Solo10G (Thunderbolt 2 Edition)

Solo10G (Thunderbolt 2 Edition)

Learn More

Interface(s)

  • RJ45 port

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Aquantia AQC107S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+
Twin10G (Thunderbolt 2 Edition)

Twin10G (Thunderbolt 2 Edition)

Learn More

Interface(s)

  • 2 x RJ45 ports

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Intel x550

macOS §

  • macOS 10.8.5+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+
  • VMware
Twin10G SFP+ (Thunderbolt 2 Edition)

Twin10G SFP+ (Thunderbolt 2 Edition)

Learn More

Interface(s)

  • 2x SFP+ Sockets

10G Support

  • SFP+ module*

5G/2.5G Support

-

Controller

  • Intel 82599

macOS §

  • macOS 10.8.5+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+
  • VMware
Solo10G (Thunderbolt 3 Edition)

Solo10G (Thunderbolt 3 Edition)

Learn More

Interface(s)

  • RJ45 port

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Aquantia AQC107S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+
Solo10G SFP+ (Thunderbolt 3 Edition)

Solo10G SFP+ (Thunderbolt 3 Edition)

Learn More

Interface(s)

  • SFP+ Socket

10G Support

  • SFP+ SR Module Included

5G/2.5G Support

-

Controller

  • Aquantia AQC100S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+
Twin10G (Thunderbolt 3 Edition)

Twin10G (Thunderbolt 3 Edition)

Learn More

Interface(s)

  • 2x RJ45 ports

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Intel x550

macOS §

  • macOS 10.12.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD

  • Linux Kernel 5.0+
Twin10G SFP+ (Thunderbolt 3 Edition)

Twin10G SFP+ (Thunderbolt 3 Edition)

Learn More

Interface(s)

  • 2x SFP+ slots

10G Support

  • SFP+ Module*

5G/2.5G Support

-

Controller

  • Intel 82599

macOS  §

  • macOS 10.12.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD

  • Linux Kernel 5.0+
* 10GBASE-SR, 10GBASE-LR or 10GBASE-T SFP+ transceiver(s), or SFP+ cable(s) required, sold separately.
† 5Gb/s and 2.5Gb/s speeds supported when used with NBASE-T compatible (multi-Gigabit) switches.
‡ Intel X550 supports NBASE-T only under Windows and Linux. A firmware update may be required.
§ All products listed here are macOS Mojave compatible. Sonnet recommends macOS 10.13.6+ when connecting via SMB protocol.
‖ VMWare supported in conjunction with Mac Pro 5,1.
See Tech Specs for footnotes.
Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
