What is DuoModo?
The choice is yours. Mix and match enclosures with modules to create your own custom Thunderbolt expansion system.

Modular Design

Whether you need to connect PCIe cards or want to mount a Mac mini® in a desktop or rackmount enclosure with port and storage expansion, Sonnet DuoModo™ Thunderbolt™ Expansion Systems enable you to pick and choose your enclosures and modules to create a custom Thunderbolt expansion system setup.

Flexible Configurations

Configuration is simple – pick an enclosure, and then choose the modules that best suit your workflow needs.
Why Thunderbolt 3 Instead of Thunderbolt 4?
DuoModo Modules rely on Thunderbolt 3 technology for maximum performance.
VIdeo Play Icon

Product Specfications

DuoModo Enclosures

1

Start with an Enclosure

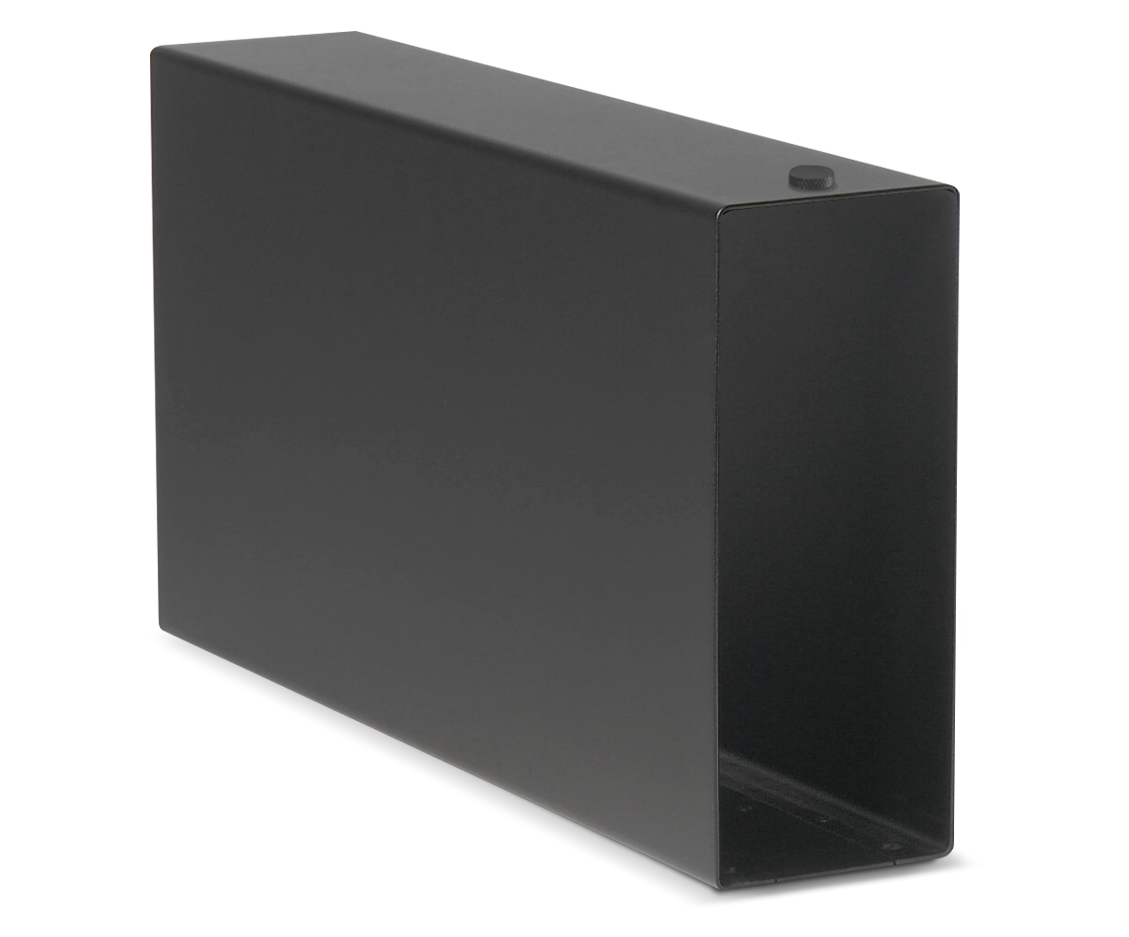

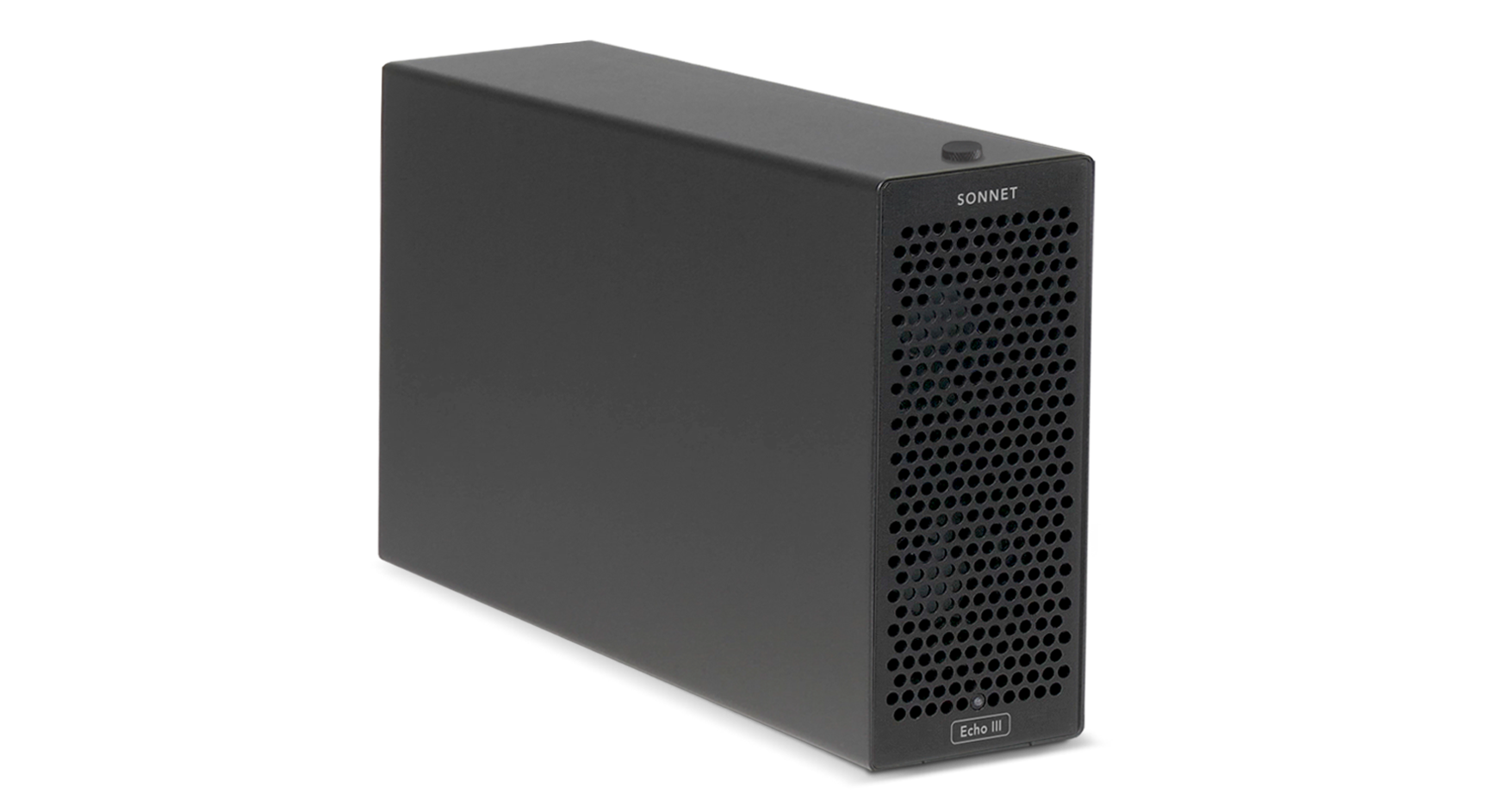

Single-Module Desktop Enclosure

DuoModo Single-Module Desktop Enclosure
Features
  • Single-module enclosure
  • Rugged aluminum housing
  • Same enclosure used in Echo III Desktop
  • 3.5 inches wide x 16.7 inches deep x 9 inches high
part number DM-ENC-1M-D
Buy Now

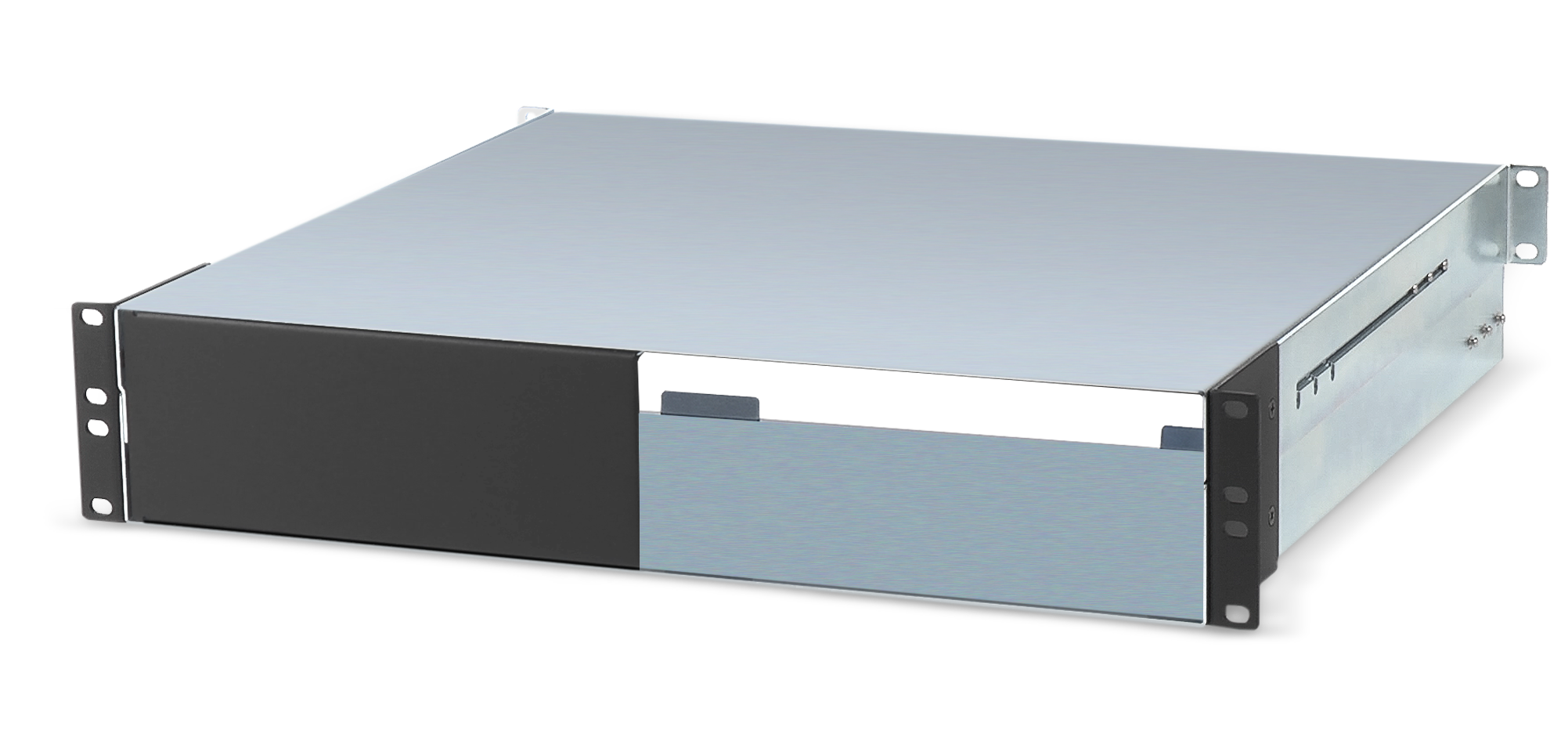

Dual-Module Rackmount Enclosure

DuoModo Single-Module Desktop Enclosure
Features
  • Dual-module 2U rackmount enclosure
  • Rugged steel construction
  • Blank plate included for single module applications
  • Same enclosure used in Echo III Rackmount
  • 19 inches wide x 16.5 inches deep x 3.5 inches high
  • Included rack rails support installation in racks 16-24" deep
part number DM-ENC-2M-R
Buy Now

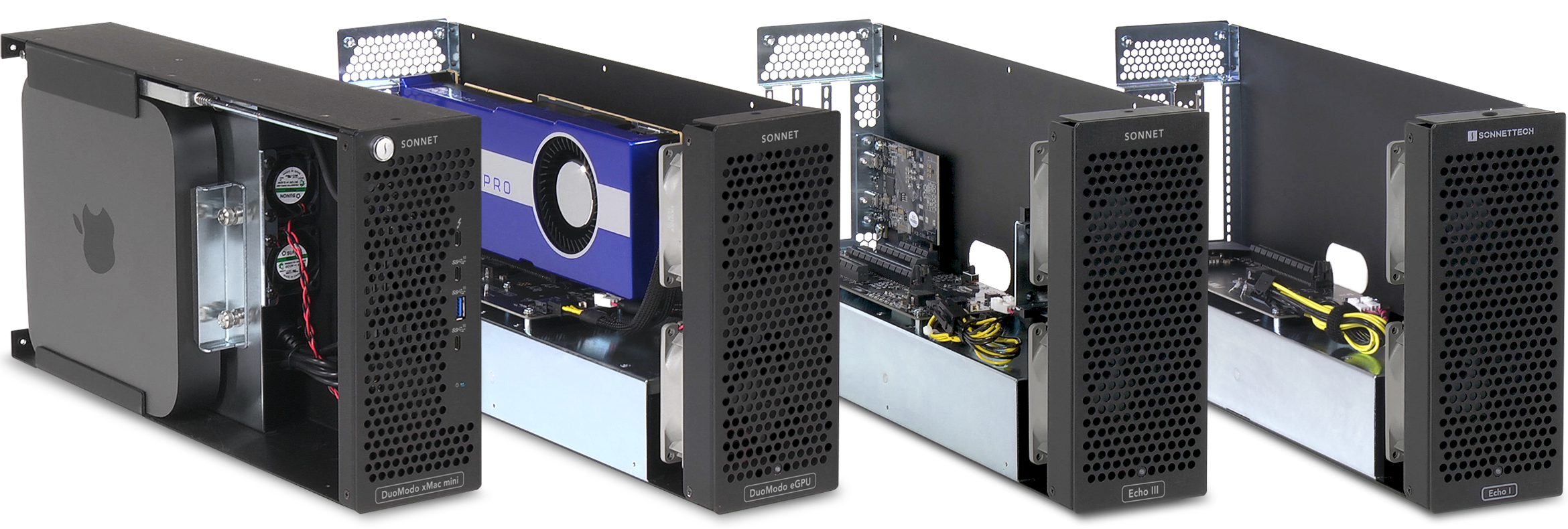

DuoModo Modules

2

Then add a Module

Echo II DV Module

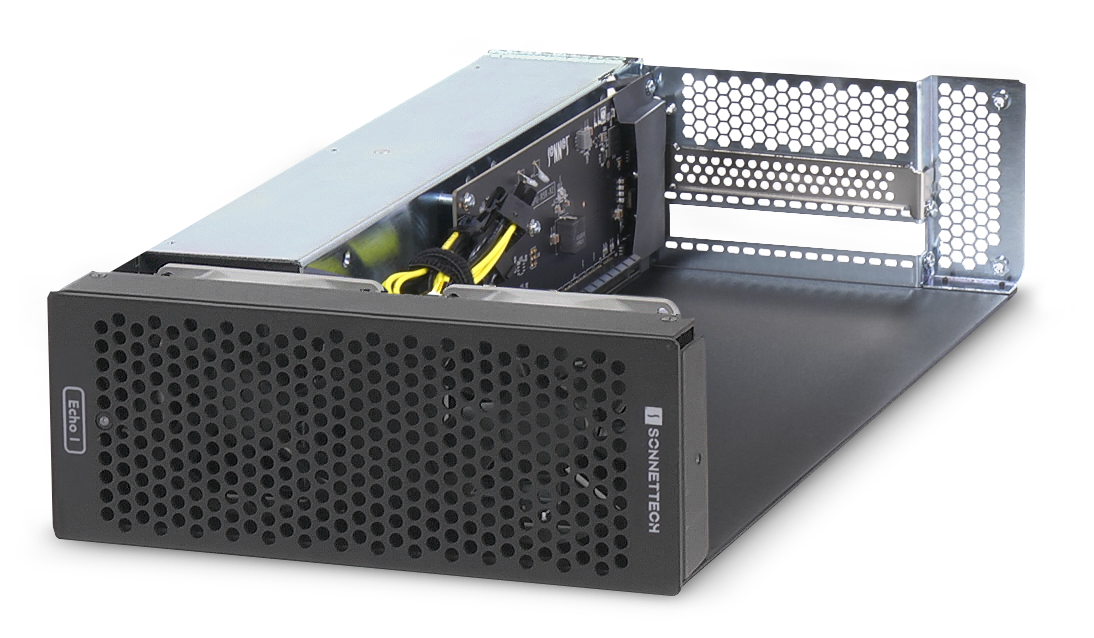

DuoModo Echo I Module
Three PCIe Slots Icon
Three Versatile PCIe Slots
  • 3-slot Thunderbolt to PCIe Card Expansion Module
  • Supports three full-height, full-length PCIe cards
  • One x16 plus two x8 PCIe 3.1 slots
  • Supports every Thunderbolt-compatible non-GPU card
  • AVID QUALIFIED – Supports up to three Avid Pro Tools | HDX PCIe cards
  • View PDF of supported PCIe cards
Quiet Fans
  • Dual Noctua fans rated a 17 dbA offer ultra-quiet operation
400W of Power
  • Built-in 400W power supply with 75W auxiliary power connector
  • Supports power-hungry, non-GPU cards including AVID HDX
40Gbs Thunderbolt Interface
  • Two 40Gbs Thunderbolt ports
  • 40Gbps Thunderbolt interface offers 2800 MB/s of PCIe bandwidth to the installed PCIe cards
part number DM-ENC-1M-D
Buy Now

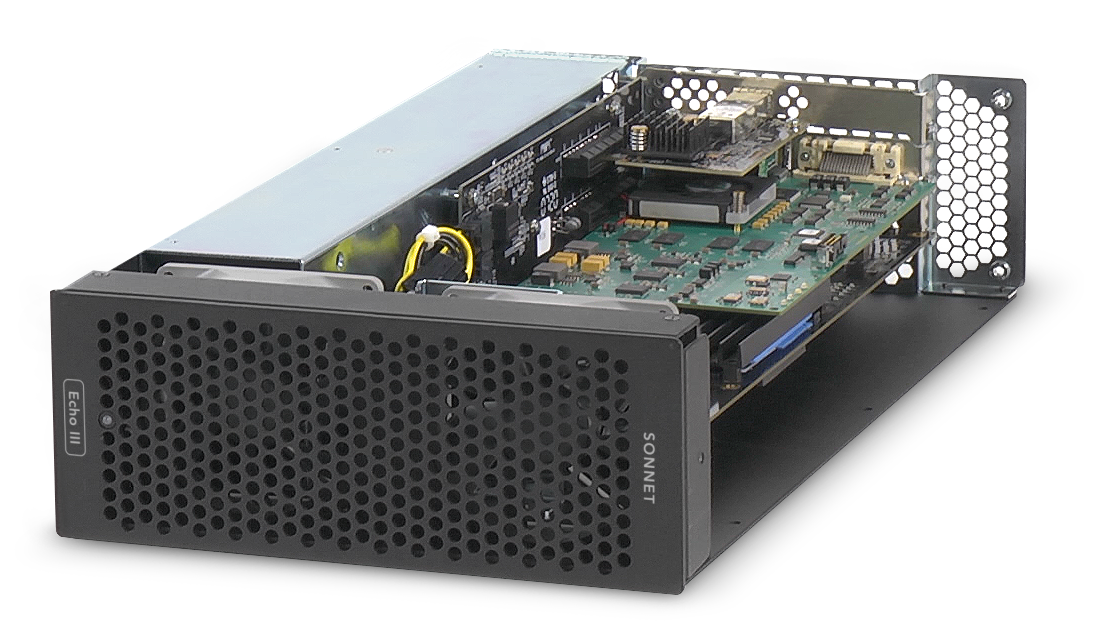

Echo III Module

DuoModo Echo I Module
Three PCIe Slots Icon
Three Versatile PCIe Slots
  • 3-slot Thunderbolt to PCIe Card Expansion Module
  • Supports three full-height, full-length PCIe cards
  • One x16 plus two x8 PCIe 3.1 slots
  • Supports every Thunderbolt-compatible non-GPU card
  • AVID QUALIFIED – Supports up to three Avid Pro Tools | HDX PCIe cards
  • View PDF of supported PCIe cards
Quiet Fans
  • Dual Noctua fans rated a 17 dbA offer ultra-quiet operation
400W of Power
  • Built-in 400W power supply with 75W auxiliary power connector
  • Supports power-hungry, non-GPU cards including AVID HDX
40Gbs Thunderbolt Interface
  • Two 40Gbs Thunderbolt ports
  • 40Gbps Thunderbolt interface offers 2800 MB/s of PCIe bandwidth to the installed PCIe cards
part number DM-MOD-E3
Buy Now

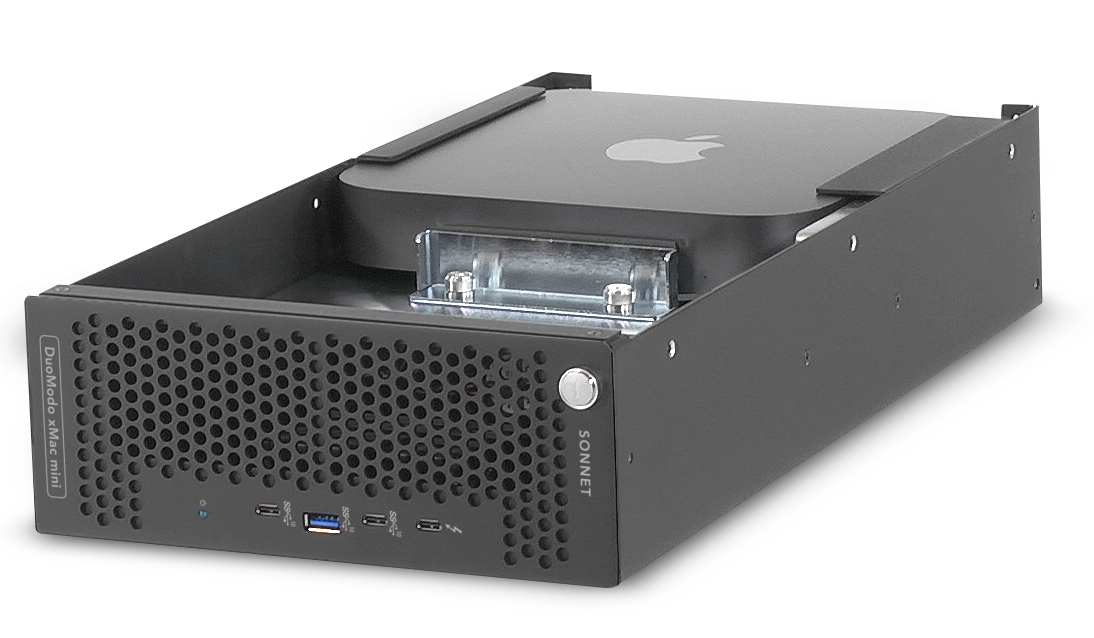

xMac mini Module
Mac mini Mounting Module + Thunderbolt SSD Storage Dock
part number DM-MOD-ZM
Buy Now
Mac mini Icon
Add a Mac mini
  • Securely holds an Intel or M1/M2 series Mac mini in horizontal or vertical orientation
  • Open access to the computer’s ports in back
  • Rugged steel frame protects installed Mac mini
  • Thunderbolt cable included
Built-in Thunderbolt 3 Dock Icon
Built-in Thunderbolt Dock with SSD Sockets and Front Panel Ports
DuoModo xMac mini Module Front Panel Ports Icons
Four Front Panel Ports
  • One 40Gbps Thunderbolt port
  • Two USB 3.2 (10Gbps) Type-C ports
  • One USB 3.2 (10Gbps) Type A port
Internal Connections
  • Two M.2 NVMe SSD sockets – add up to 16TB (SSDs sold separately)
  • One internal USB 3.2 (10Gbps) Type A port
  • Internal 40Gbps Thunderbolt port connects dock to the Mac mini
Internal USB Type A Port Icon
Internal USB Type A Port
  • Internal USB Type A port included for securely connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive
Quiet Fan Icon
Quiet Fan
  • Temperature-controlled, variable-speed fan offers quiet operation
xMac mini Module Interior Illustration
  1. M.2 SSD Sockets – Supports one or two M.2 2280 NVMe PCIe SSDs (with or without heat sink) with "M" key connectors
  2. Internal USB-A Connector – Connect an iLok USB-A, thumb drive, or bus-powered USB storage drive
  3. 40Gbps Thunderbolt Dock Interface Connector – Connect the included 40Gbps Thunderbolt cable between this connector and the Thunderbolt connector on the installed Mac mini
  4. Temperature-controlled Fan – Provides cooling for the Thunderbolt dock, installed SSDs (sold separately), and the module's supporting Thunderbolt and power circuitry
  5. Computer Housing and Bracket Location – Padded bracket secures Mac mini in place

Workflow Ideas

Pro Tools Workstation
Audio Engineer with Pro Tools DuoModo Desktop System

Integrate a complete 3-card Pro Tools | HDX system and a Mac mini on your desktop or in just 2U of rack space.

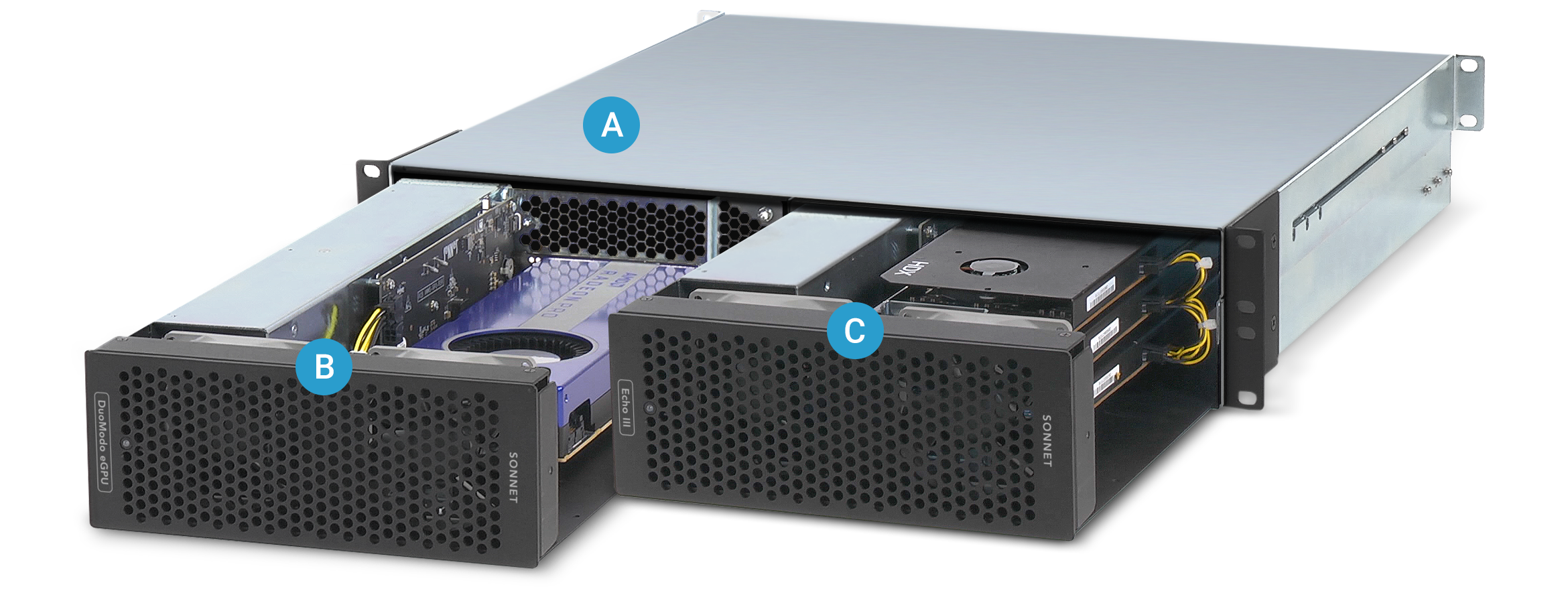

(A) Dual-Module Rackmount Enclosure
(B) xMac™ mini Module
(C) Echo™ III Module
DuoModo xMac mini+Echo III Rackmount System
Mac mini and HDX PCIe cards not included
xMac mini Module

Add Up to 16TB SSD Storage

Install two M.2 PCIe SSDs (sold separately) and store your libraries or save your projects and have instant access to them
DuoModo xMac mini Module Internal M.2 PCIe SSD Slots
Integrated Thunderbolt dock supports two M.2 PCIe SSDs

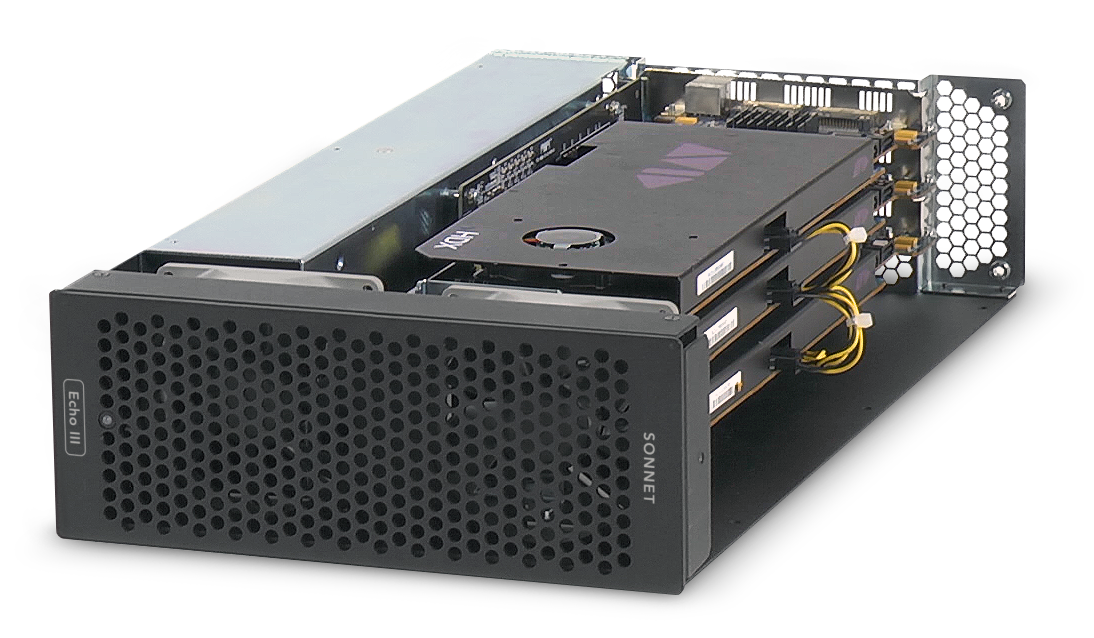

Echo III Module

Install Up to Three HDX Cards

In a 2U rack space

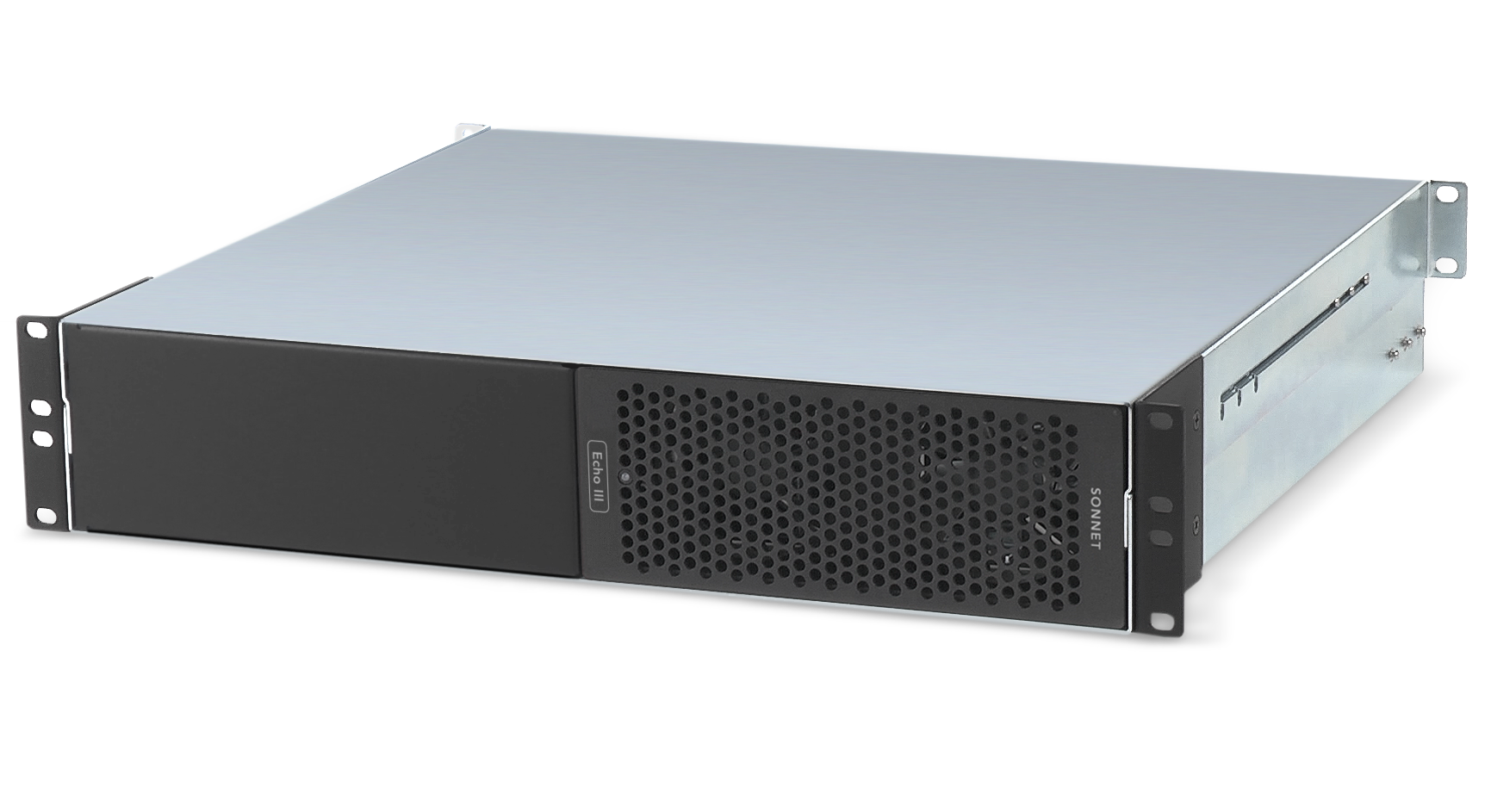

DuoModo Echo III Rackmount System
Internal USB Type A Port

Secure Internal Connection

Connect an iLok USB-A (or other) license dongle, thumb drive, or bus-powered storage drive inside the xMac mini Module
DuoModo xMac mini Module Internal USB Type A Port
AVID QUALIFIED

A Perfect Rack Companion

Compliments Avid’s MTRX Studio in rack configurations
DuoModo Echo III Rackmount System with RackMac mini and Pro Tools | MTRX Studio Installed In Rack Case
Backstage Maestro
DuoModo Echo III+Echo III Rackmount System with RackMac mini Installed In Rack Rails

One or two Mac mini computers plus six PCIe cards in 3U rack space!


Install Mac mini computers in a RackMac mini and configure a DuoModo Rackmount Enclosure with two Echo III Modules with up to six PCIe cards
(A) RackMac mini
(B) Dual-Module Rackmount Enclosure
(C) Echo III Module
(D) Echo III Module
See Tech Specs for footnotes.
Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
