Compatibility

Mac Compatibility

• macOS 15+
• macOS Tahoe compatible

Windows Compatibility

• Windows 11 (24H2, or newer, with latest update)

• Intel CPU Generation Support(2)

• 11th Gen (Not Compatible)
• 12th Gen (Compatible)
• 13th Gen (Compatible)
• 14th Gen (Compatible)
• Core Ultra 1 (Compatible)
• Core Ultra 2 (Compatible)

• AMD Support

• AMD computer with USB4 port should be compatible
• Typically supports one display (but may be none or two)

Chromebook Compatibility

• Chromebook with Thunderbolt 5 or 4 ports
• Chromebook with USB4 ports
• Current ChromeOS

iPad Pro Compatibility

• M series iPad Pro
• M1/M2 iPad Pro supports one mirrored monitor
• M4/M5 iPad Pro supports one extended or mirrored monitor
• Current iPadOS

Displays Compatibility

For computers and displays compatibility information, see the following PDF

HDR Compatibility

• See Apple Support Note for Mac HDR information
• If your Windows computer supports HDR, see this Microsoft Support Note for Windows HDR information

Hardware

Part Number

• ECHO-DK20-T5

Warranty

• 2-year

Form Factor

• Thunderbolt dock

Connectors

• Three Thunderbolt 5 ports
• RJ45 10 Gigabit Ethernet port
• Video Output (HDMI) port
• Video Output (DP) port
• One 15W USB 3.2 Gen2 (10 Gbps) Type-C charging port
• Four 7.5W USB 3.2 Gen2 (10 Gbps) Type-C charging ports
• Four USB 3.2 Gen 2 (10 Gbps) Type A ports
• Two (right and left channels) line out RCA jacks
• 3.5mm combination headphone/microphone jack
• 3.5mm microphone jack
• UHS-II SD card slot
• UHS-II microSD card slot
• Power connector

Thunderbolt 5 Computer Port

• Power Delivery

• Provides laptop charging up to 140W(3)

• Cables Supported

• Any Thunderbolt 5 cable (0.8-meter included)

Thunderbolt 5 Peripherals Ports

Note that the downstream ports are not necessarily Thunderbolt 5 ports; they are the same as the host ports (Thunderbolt 5, Thunderbolt 4, or USB4).

• Connectivity

• With USB-C connector

• Peripherals Supported

• Thunderbolt 5 devices
• Thunderbolt 4 devices
• Thunderbolt 3 devices
• USB4 v2 devices
• USB4 devices
• USB hubs
• Thunderbolt 5, 4, 3, and USB-C monitors
• DisplayPort and HDMI monitors(4)

Video Output (HDMI) Port

• Windows

• HDMI 2.1 up to 8K 60Hz

• macOS

• HDMI 2.0b up to 4K 60Hz

Video Output (DP) Port

• DP 2.0 up to 4K 144Hz

USB 3.2 Gen 2 Type A Ports

• Connectivity

• With USB Type A connector

• Peripherals Supported

• USB 3, 2.0 and 1.1 devices

• Data Transfer Rate

• USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10 Gbps

USB 3.2 Gen 2 Type-C Ports

• Connectivity

• With USB Type-C connector

• Peripherals Supported

• USB 3, 2.0 and 1.1 devices

• Data Transfer Rate

• USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10 Gbps

• Charging

• 1.5A per port advertised using USB Type-C Charging; 3A for front panel port marked with 15W
• 7.5W per port for operation or charging; 15W for front panel port marked with 15W
• Supports simultaneous charging and syncing

RJ45 (Ethernet) Port

• Network Support

• 10GBASE-T (100 meters using Cat 6A cabling; 55 meters using Cat 6 cabling)
• 5GBASE-T(5), 2.5GBASE-T(5), 1000BASE-T, 100BASE-TX (100 meters using Cat 5e [or better] cabling)

• Standard

• Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 Specifications

• Packets

• Maximum packet size: 16352 bytes (jumbo frames); 9000 bytes under macOS

• Data Rates Supported(5)

• 10 Gbps, 5 GBps, 2.5 Gbps, 1 Gbps, 100 Mbps

• AVB (Audio/Video Bridging) Support

• macOS only

• Chip

• Marvell AQC113C

• Advanced Features

• Flow control support
• MSI (Message Signaled Interrupts)
• RSS (Receive-Side Scaling)
• Interrupt coalescing
• Multicast filtering
• Energy-Efficient Ethernet (IEEE 802.3az)
• 64-bit address support for systems using more than 4GB of physical memory

• Stateless Offloads

• TCP, UDP and IPv4 checksum offloading
• TSO (TCP Segmentation Offload, AKA Large Send Offload)
• LRO (Large Receive Offload)
• RSS (Receiver Side Scaling)

SD Card Slot

• Fast UHS-II SD Card Reader

• Cards Supported

• SD, SDHC, SDXC

microSD Card Slot

• Fast UHS-II SD microSD Card Reader

• Cards Supported

• microSD, microSDHC, and microSDXC cards

Audio Line Out

• Connectivity

• RCA R+L connectors

Power Delivery

• Provides laptop charging up to 140W(3)

Kensington Security Slot

• Supports Standard, MicroSaver, and MicroSaver 2 Locks

Power Adapter

• Universal 240W, 100-240V AC, 50-60 Hz

Operating Temperatures

• 0˚C to 35˚C (32˚F to 95˚F)

Dimensions (WxDxH)

• Dock: 9.6 x 4.2 x 1.3 in. (24.3 x 10.6 x 3.3 cm)
• Power Adapter: 2.9 x 6.1 x 1 in. (7.5 x 15.5 x 2.5 cm)

Weight

• Dock and Power Adapter: 2.9 lbs (1.3 kg)
• Complete Package: 4.1 lbs (1.9 kg)

Compliance

• RoHS 3 (Directive 2015/863)
• IEC62368-1 and IEC62368-2 Safety
• VCCI-B certified
• FCC Part 15, Subpart B
• CISPR 32/EN 55032
• Power Supply (PSE certified; UL certified)

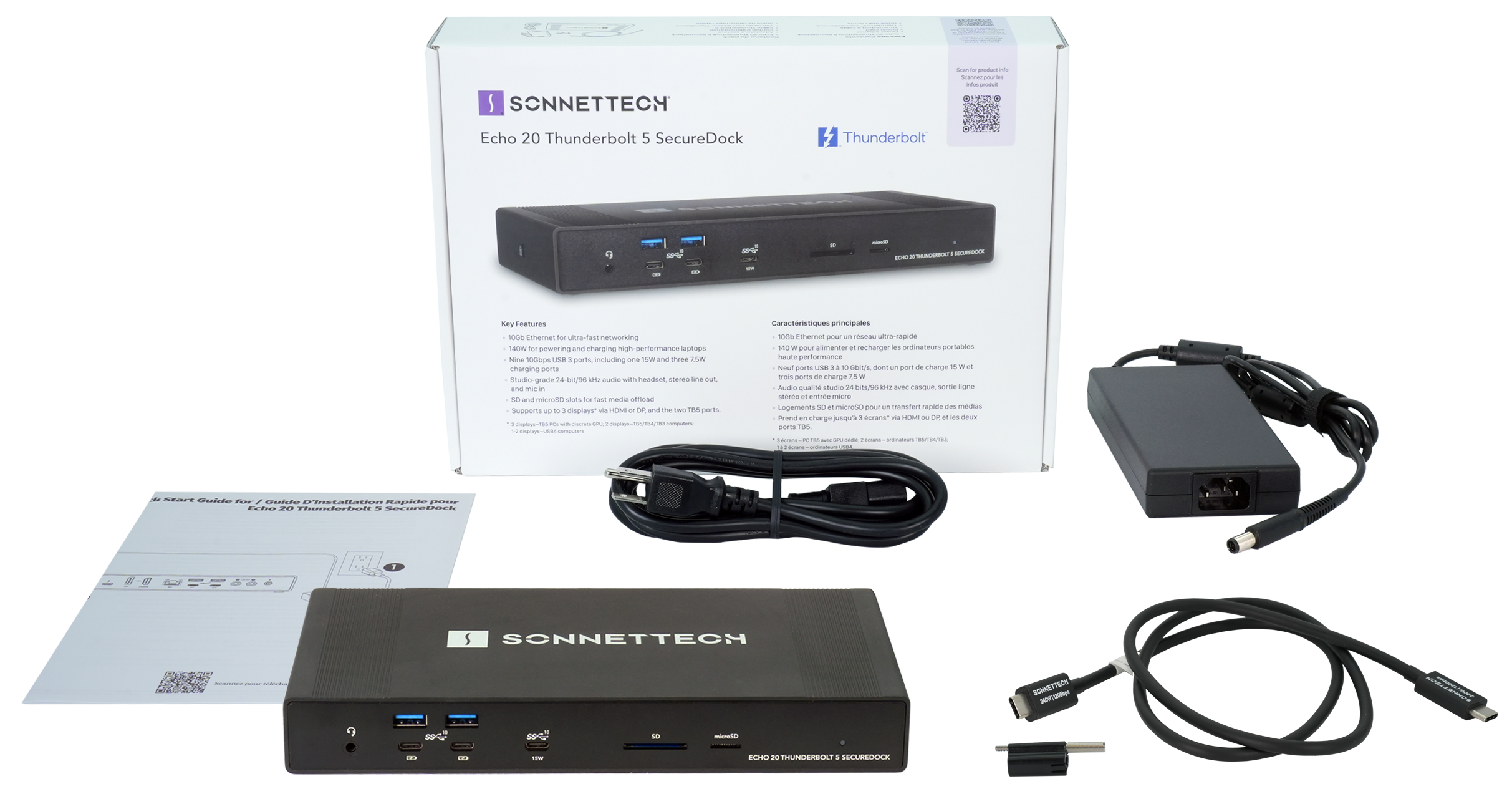

Package Contents

• Echo 20 Thunderbolt 5 SecureDock
• Power adaper
• Region-specific power cord
• 0.8-meter Thunderbolt 5 cable
• ThunderLok-A connector lock
• Documentation
