*See Tech Specs for details

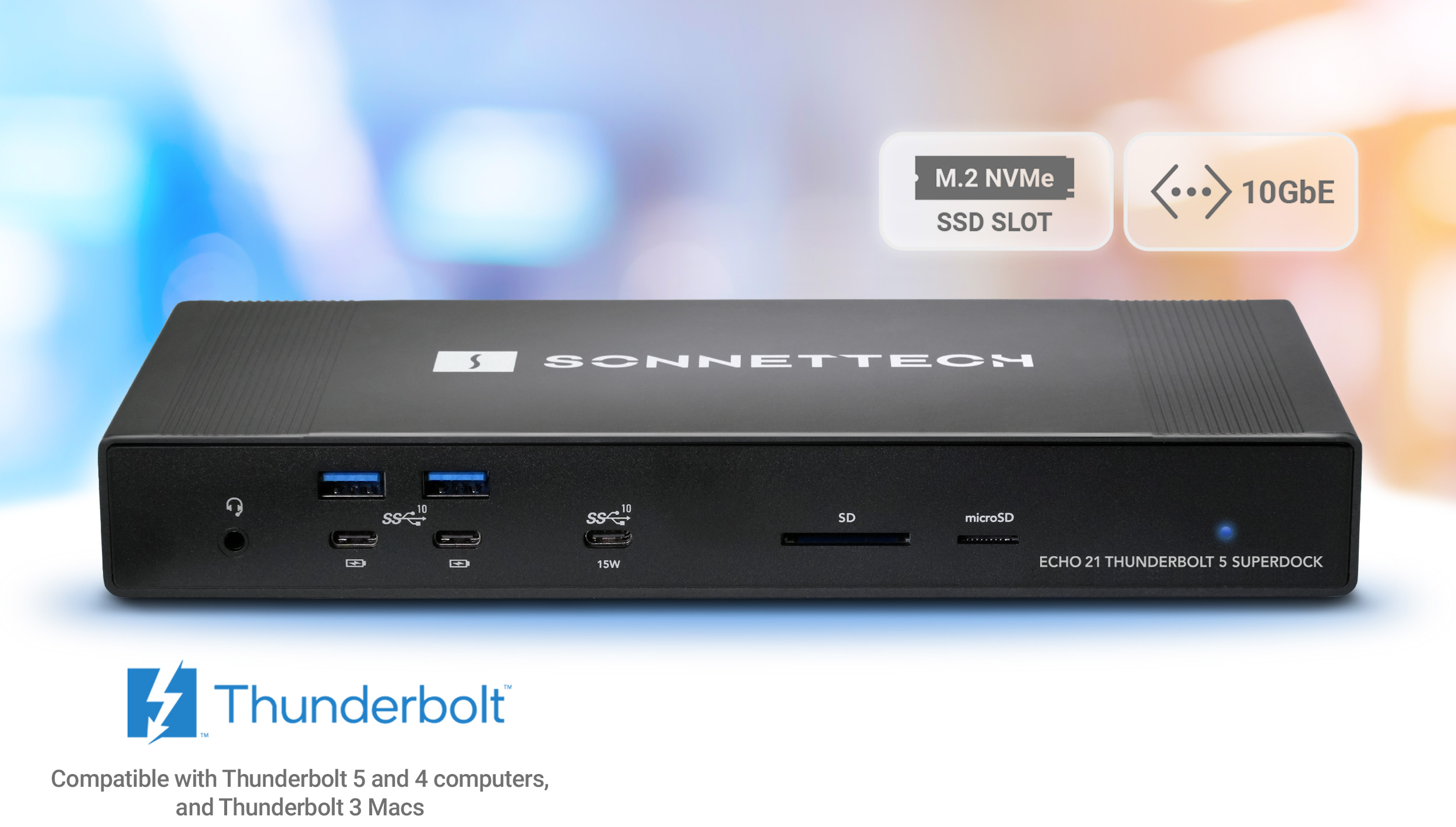

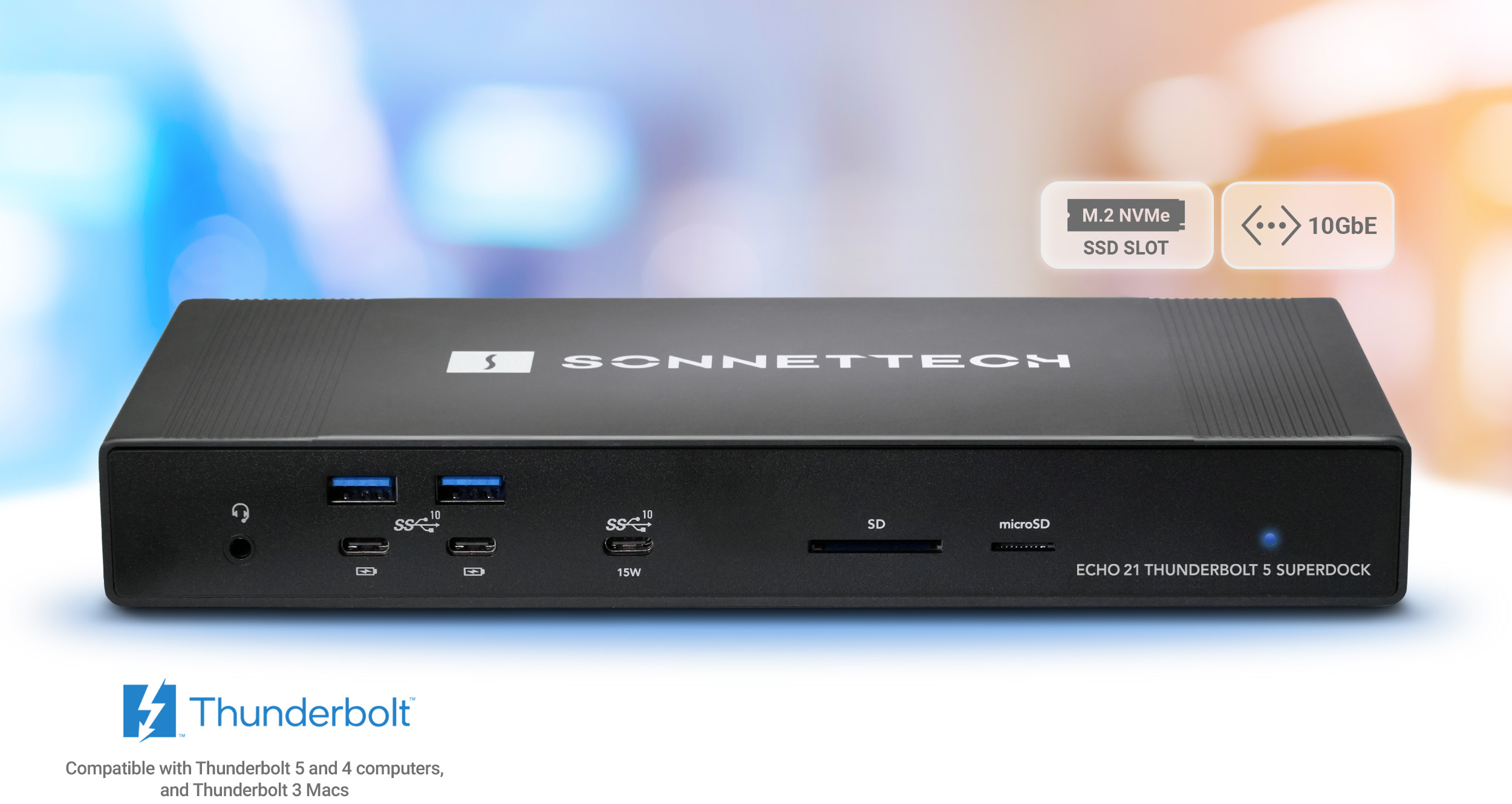

Echo 21 Thunderbolt 5 SuperDock links connected Thunderbolt devices, monitor(s), USB peripherals, powered speakers, and Ethernet cable to your computer with a single Thunderbolt 5 cable. Got a laptop? Keep its power adapter in your bag — the SuperDock will power it with 140W of charging power. When it’s time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

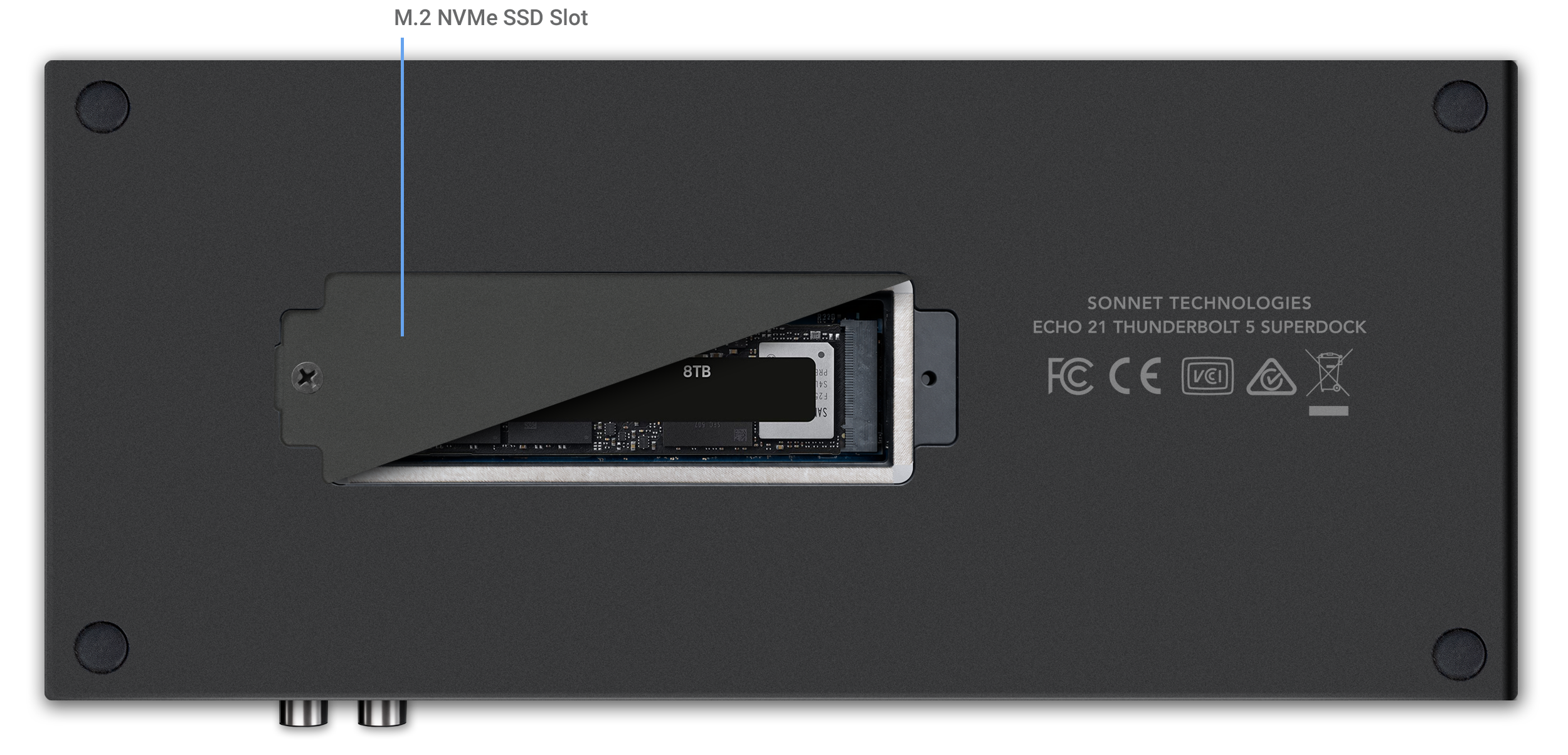

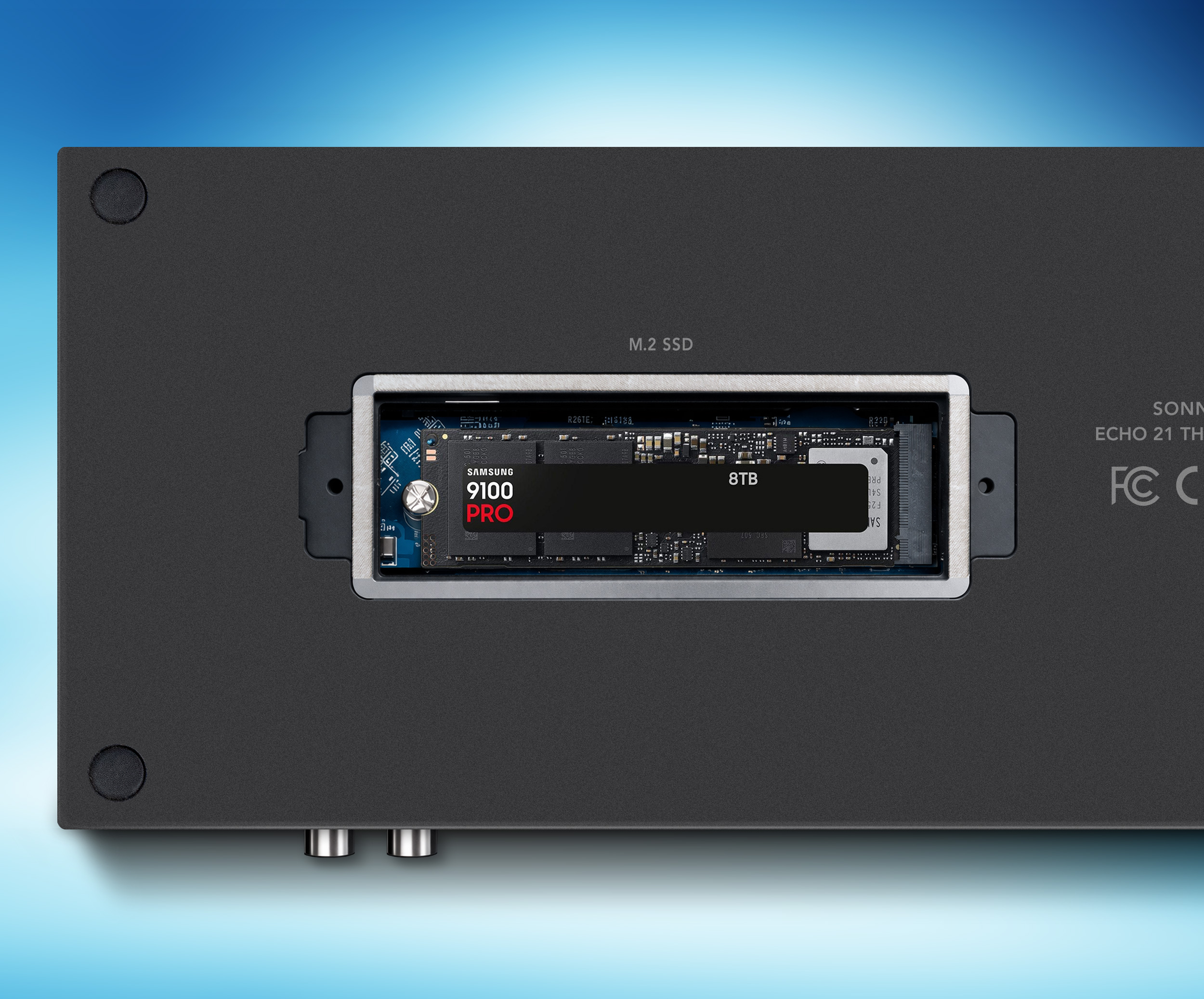

Add up to 8TB of high-speed SSD storage (SSD sold separately) directly inside the dock —no external storage device required. Installation is simple: remove the bottom panel, insert the SSD, and secure the cover. Once installed, access and transfer data at up to 3300 MB/s. Ideal for pro content creation, application storage, large media libraries, and Time Machine backups.
Don’t Need Storage?
Work in a Storage-Restricted Environment?
Get the Echo 20 Thunderbolt 5 SecureDock — same performance and connectivity, no SSD slot, lower price.

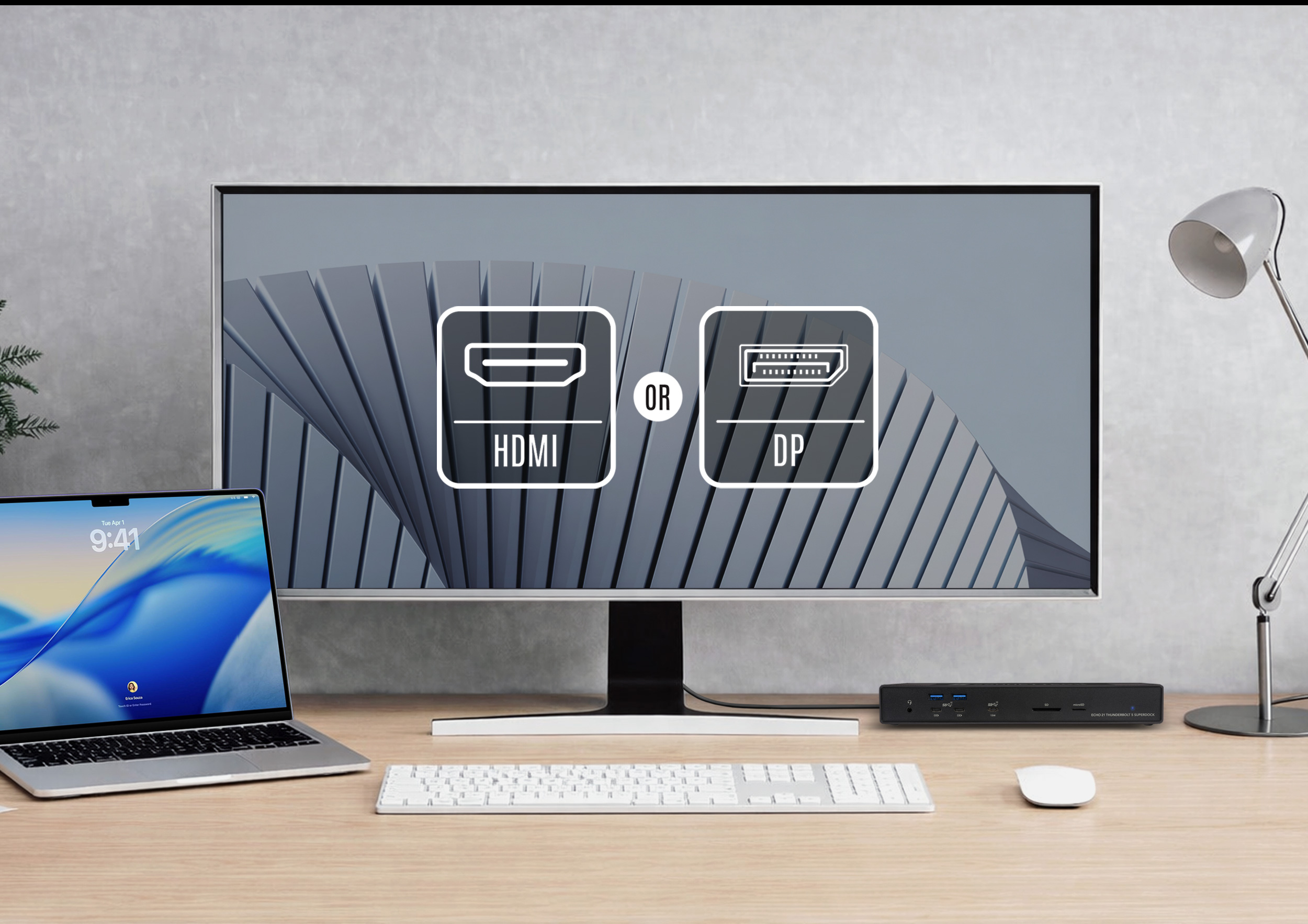

Echo 21 Thunderbolt 5 SuperDock features video output ports for HDMI and DisplayPort displays, enabling you to connect either an up to 8K* @60Hz HDMI monitor or a 4K @144Hz DisplayPort monitor.
*See Tech Specs for details

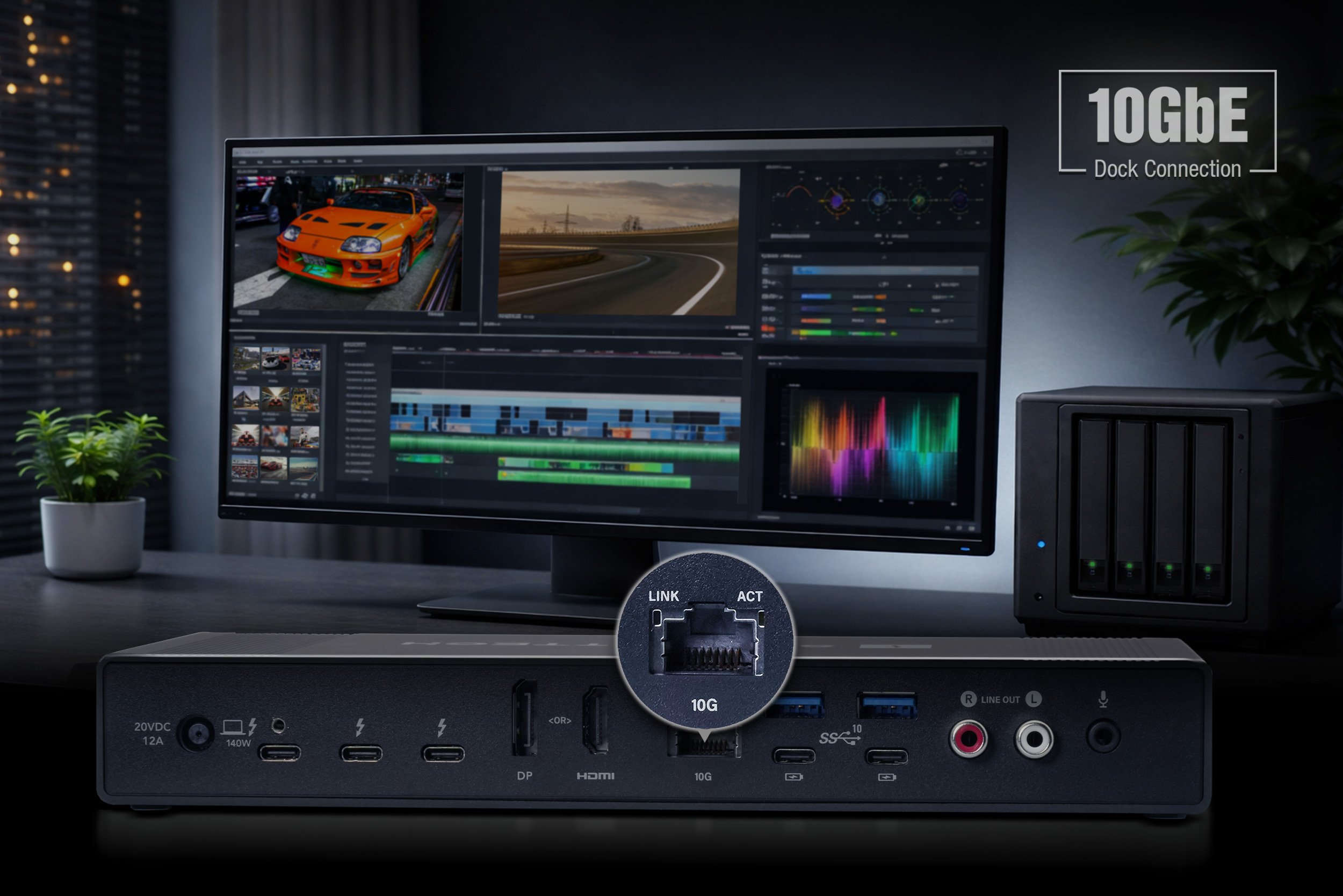

Echo 21 Thunderbolt 5 SuperDock supports demanding workflows with built-in 10 Gigabit Ethernet, enabling connection to 10GbE infrastructure using cost-effective Cat 6 or Cat 6A copper cabling (up to 55 or 100 meters, respectively) — eliminating the need for a separate adapter.
Delivering up to 10x the performance of Gigabit Ethernet, the dock also supports 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds when connected to switches or NAS devices without 10GbE support, using standard Cat 5e (or better) cabling.
AVB Support: Audio Video Bridging (IEEE 802.1Qav, AVB) support for macOS makes this dock ideal for use in pro audio and video applications where synchronization of data streams is critical.
Echo 21 Thunderbolt 5 SuperDock features a hi-res Audio Codec (coder-decoder) that supports the dock’s audio I/O jacks with high quality, lossless audio.

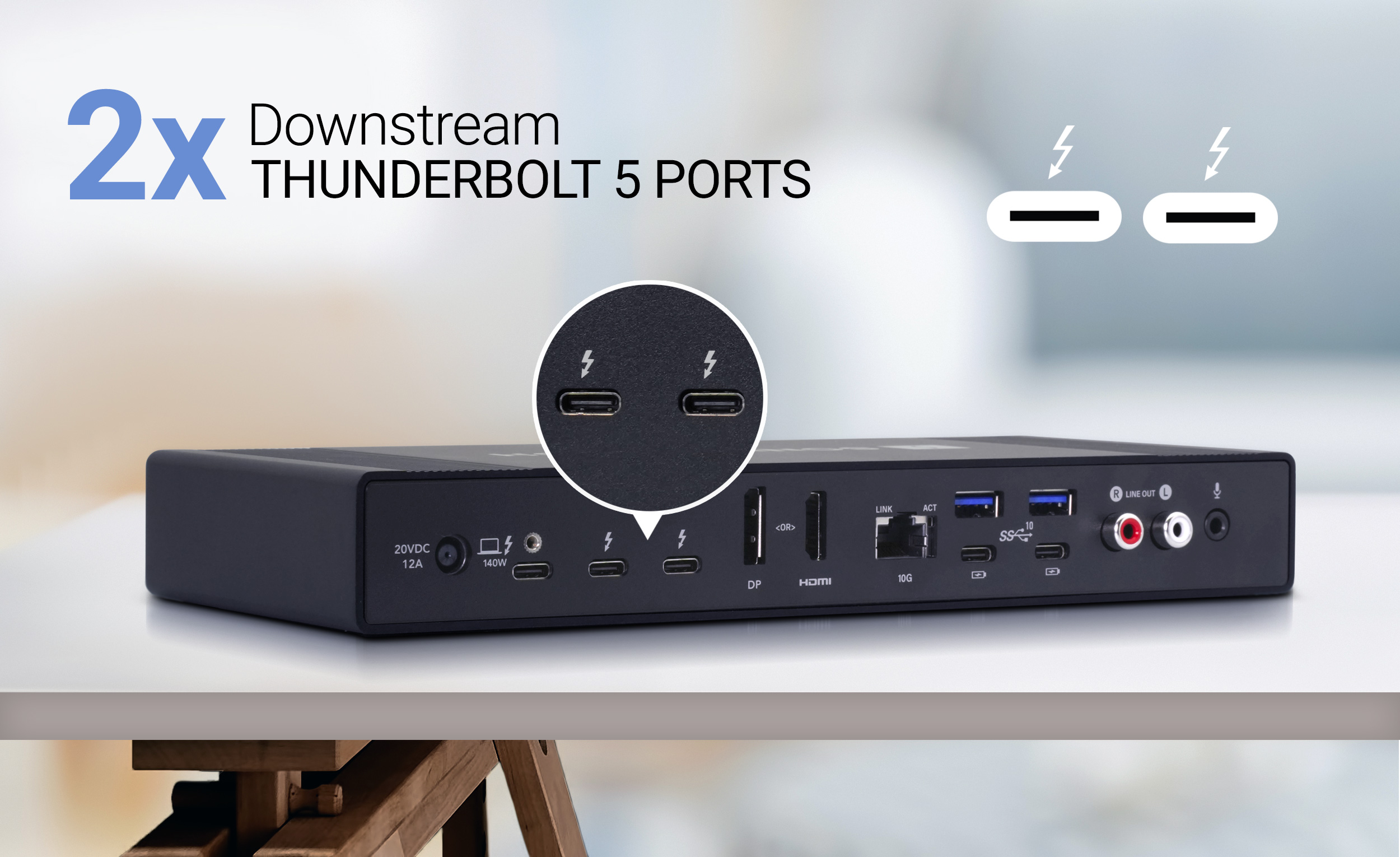

Echo 21 Thunderbolt 5 SuperDock incorporates three Thunderbolt 5 ports. One connects to and powers your computer — ideal for laptops with only one or two Thunderbolt ports, since it handles charging and data through a single connection. The other two support Thunderbolt 5, 4, and 3 devices — as well as USB4 and USB 3 peripherals — and each provides 15W for demanding bus-powered devices. If supported by your computer, you can also connect one, two, or even three additional displays.
*See Tech Specs for details

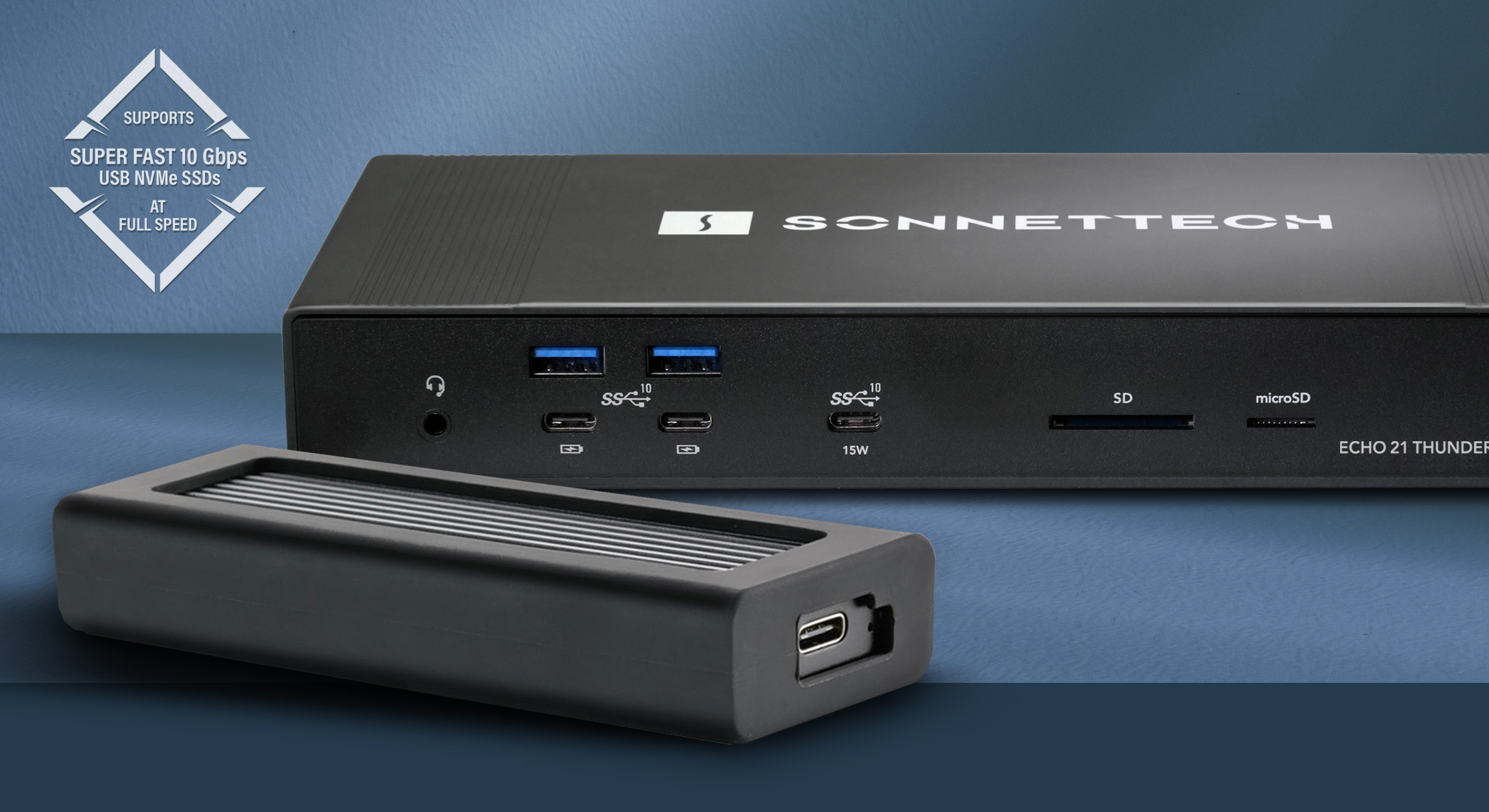

Echo 21 Thunderbolt 5 SuperDock delivers powerful USB 3 connectivity with four 10 Gbps USB-A ports, and five 10 Gbps USB-C charging ports — including two on the front, two on the back, and a front 15W USB-C charging port. All ports support super-fast 10 Gbps USB NVMe SSDs at full speed.
Echo 21 doesn’t skimp on power either — each port provides 7.5W (or 15W) to ensure that drives with higher peak power requirements mount and operate reliably. An added benefit of the USB-C ports is they support device charging even when the computer is off, asleep, or disconnected.
15W and 7.5W charging powered ports deliver high-speed data and power, letting connected devices operate or charge without needing a separate power adapter
Instant access – plug all your peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 5 cable.

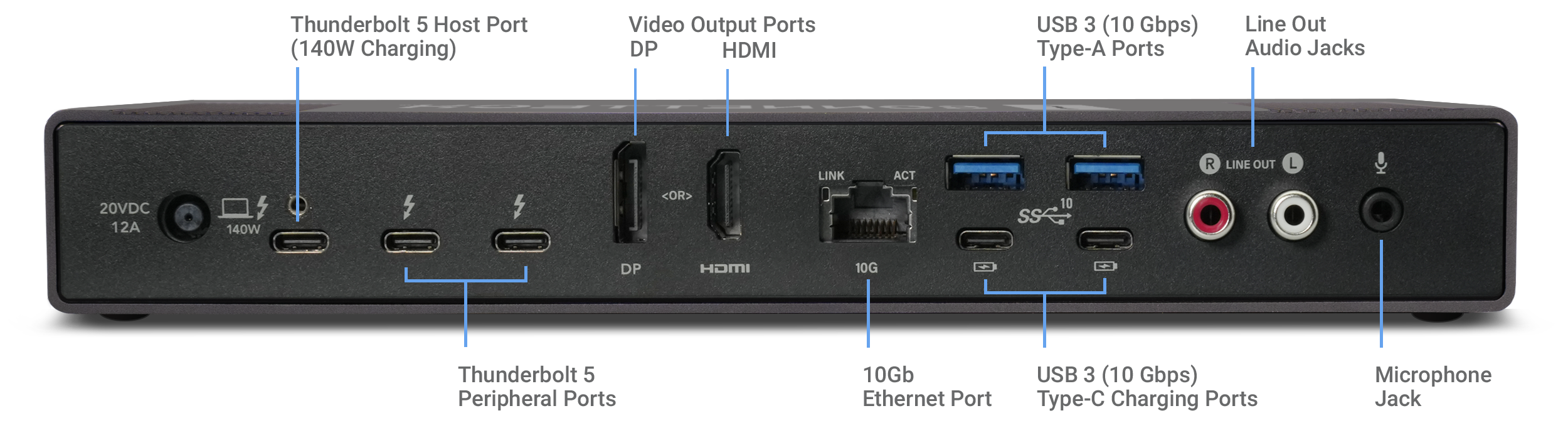

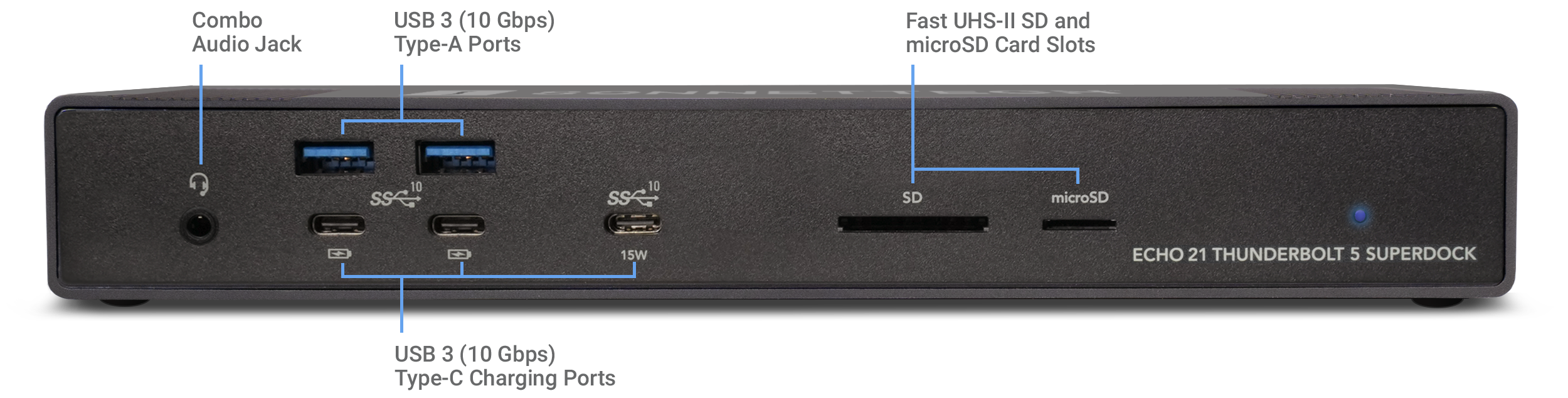

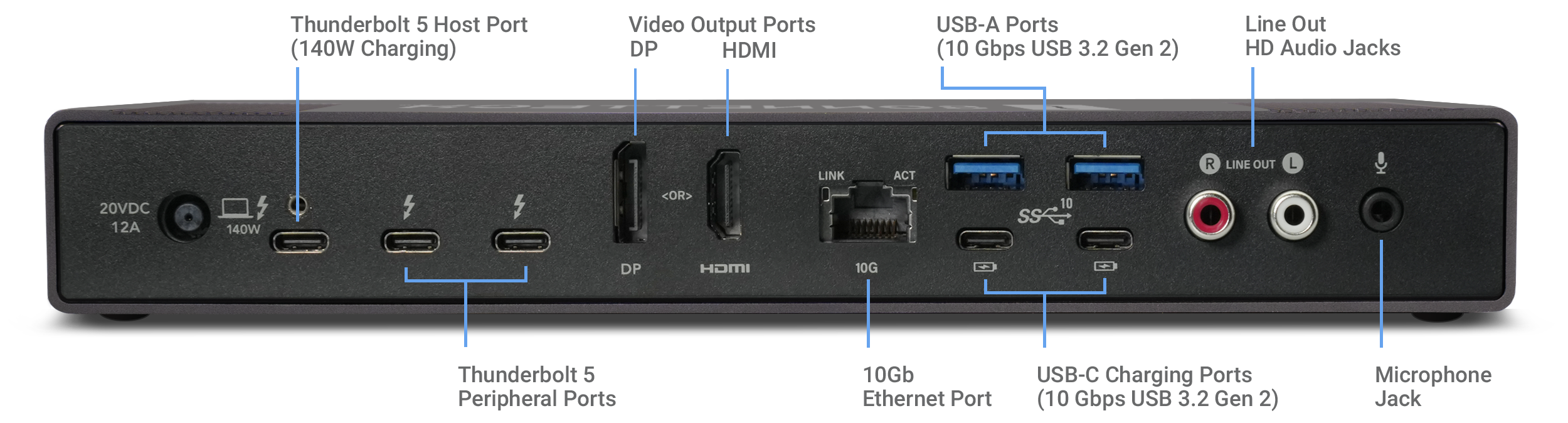

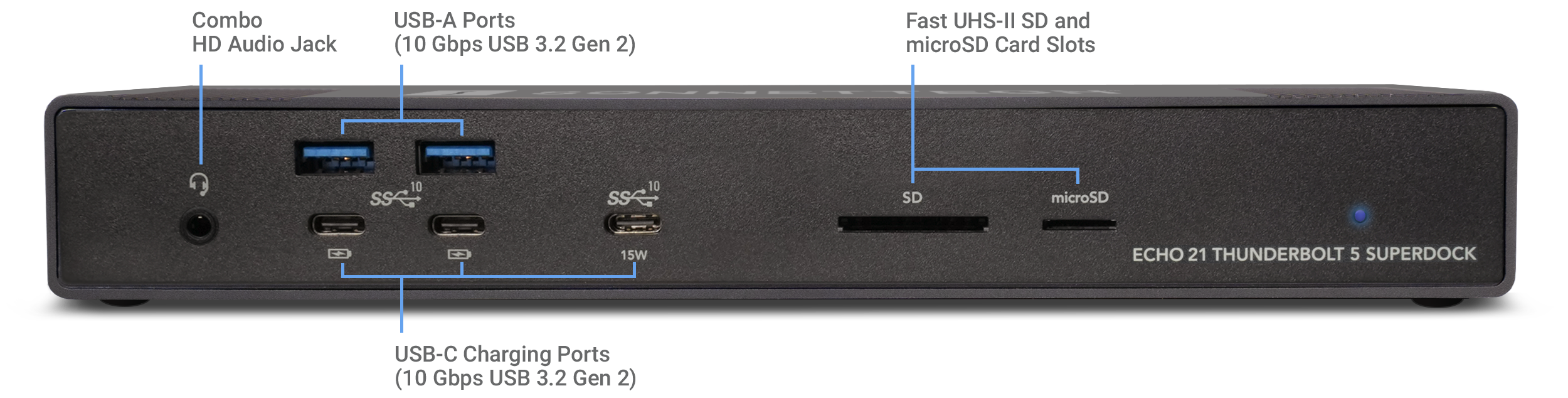

SuperDock includes three Thunderbolt 5; four 10 Gbps USB Type A, and five 10 Gbps USB Type-C charging ports; video output ports for HDMI and DP displays; RJ45 10 Gigabit Ethernet; 3.5 mm combo audio; 3.5 mm microphone; line-level R+L RCA audio out; fast UHS-II SD and microSD card slots; and an M.2 SSD slot.
Connect two Thunderbolt peripherals (with support for daisy chaining additional peripherals). Also support USB4 and USB 3 devices, plus displays.
Add up to 8TB of internal storage (SSD sold separately) with up to 3300 MB/s performance — perfect for content creation, media libraries, and backups.
Link to an Ethernet network or NAS at 10 Gigabit speed! Also supports 5Gb, 2.5Gb, and 1Gb Ethernet link speeds.
USB-C port provides 15W of power for operation or charging. Port supports super-fast 10 Gbps USB NVMe SSDs at full speed.
Four USB-C ports provide 7.5W of power each for operation or charging. Ports support 10 Gbps USB NVMe SSDs at full speed.
Four USB-A ports provide 7.5W of power each and support 10 Gbps USB NVMe SSDs at full speed.
Connect a 1080p, 1440p, 4K, 5K, 6K, or 8K HDMI display directly, no adapter required.
Connect a 1080p, 1440p, or 4K display directly, no adapter required.
Depending on your computer, connect one or two Thunderbolt or USB-C displays directly, and daisy chain a third (see Tech Specs for details). Supports HDMI and DP displays with Thunderbolt-compatible adapters (sold separately).
Depending on your computer, supports up to two 8K displays, or three or four 4K, 5K, or 6K displays (see Tech Specs for details).
Provides 140W through the included Thunderbolt 5 cable to power and charge your laptop.
3.5 mm stereo headset jack on the front panel. Separate left/right channel RCA line out jacks that deliver a clean signal to powered speakers or an amplifier, plus a 3.5 mm microphone jack populate the back panel.
Compatible with SD, SDHC, SDXC; and microSD, microSDHC, and microSDXC memory cards; supports 320 MB/s read speeds with UHS-II cards.
Supports all M series Macs, and Intel Macs with Thunderbolt 3 ports.
Supports Windows computers with Thunderbolt 5 or 4, or USB4 ports.
Supports Chrombeook computers with Thunderbolt 5 or 4, or USB4 ports.
Supports M series iPad Pro tablets.
Founded in 1986 in Orange County, Southern California — long recognized as a vibrant hub of technology and engineering — Sonnet has been at the forefront of innovation for nearly four decades. We’ve introduced award-winning products that expand performance and connectivity for Mac, Windows, and other industry-standard computers. Many of our team members have been with us for more than 20 years, bringing unmatched expertise across both current and legacy products. Should you ever need technical support, you can count on our knowledgeable staff to provide the help you need.
Depending on your computer’s graphics capability and whether a DisplayPort or HDMI monitor is connected to one of the dock’s built-in display outputs, the Echo dock’s Thunderbolt ports can support as many as three displays — at 4K, 5K, or 6K resolution, and up to 8K*.
Connect Thunderbolt 5, 4, 3, or USB-C monitors directly, or use a Thunderbolt-compatible adapter (sold separately) to connect HDMI, DisplayPort, and other display types.
View how many displays you can use with your computer
*See Tech Specs for details

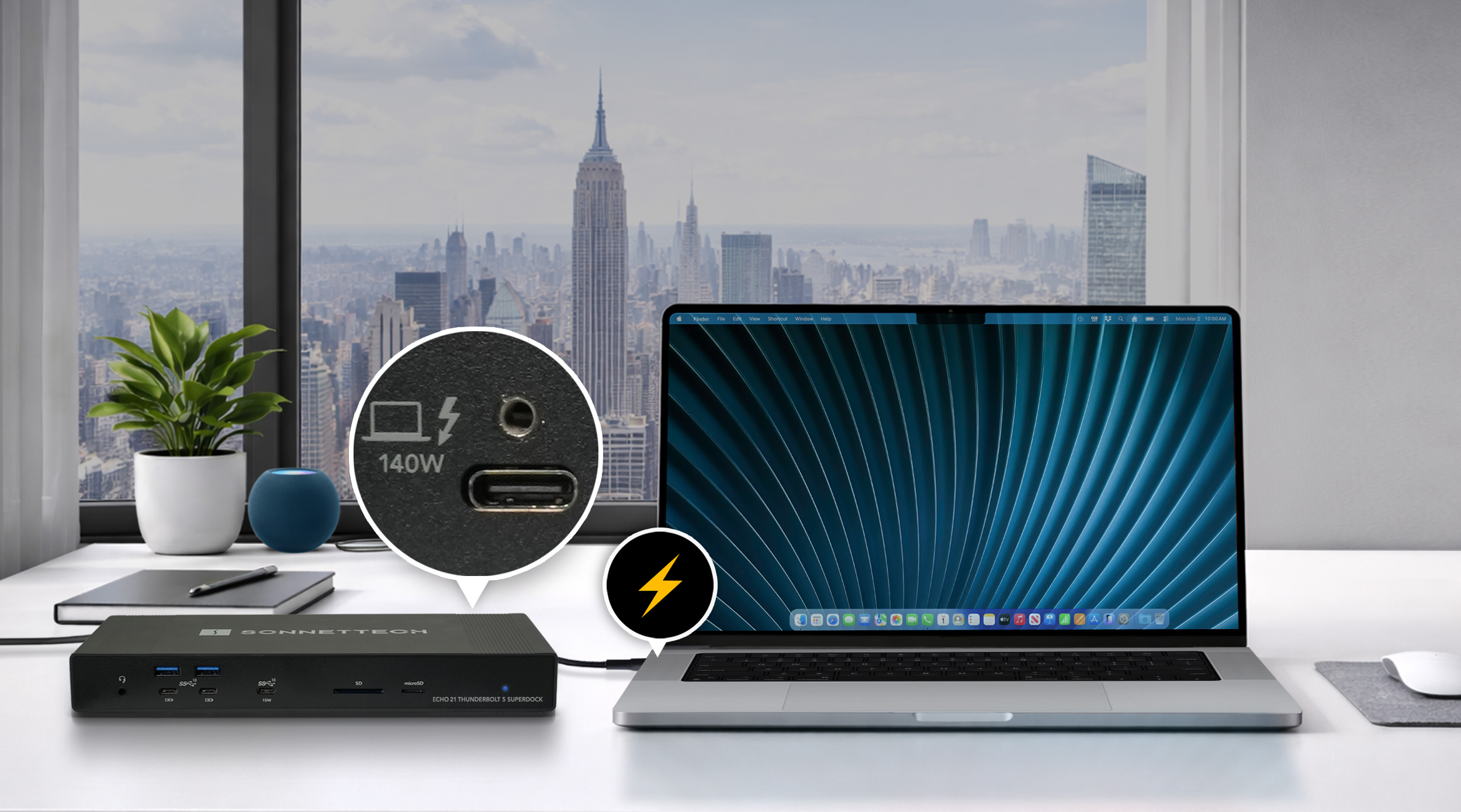

Connected to your laptop computer with the included Thunderbolt 5 cable, Echo 21 Thunderbolt 5 SuperDock provides up to 140W of power (Power Delivery), enabling it to power and charge your computer while connected, even when not in use, allowing you to leave your computer’s charger packed away.

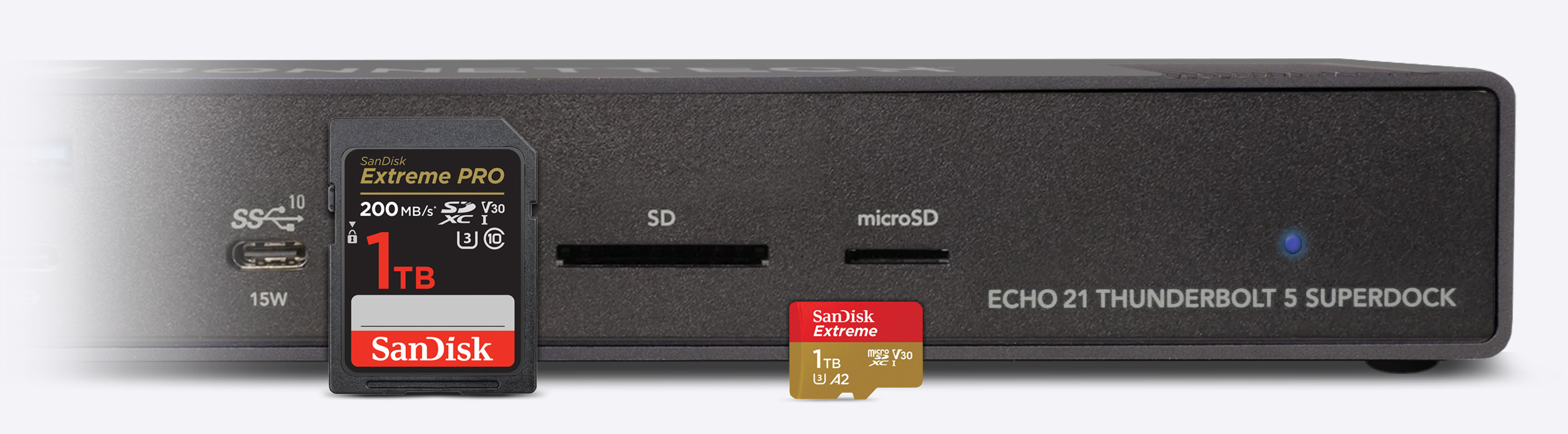

The included SD and microSD card slots are compatible with SD, SDHC, and SDXC; and microSD, microSDHC, and microSDXC memory cards, respectively, and support 320 MB/s read speeds with UHS-II SDXC and microSDXC cards to quickly offload images and video files.

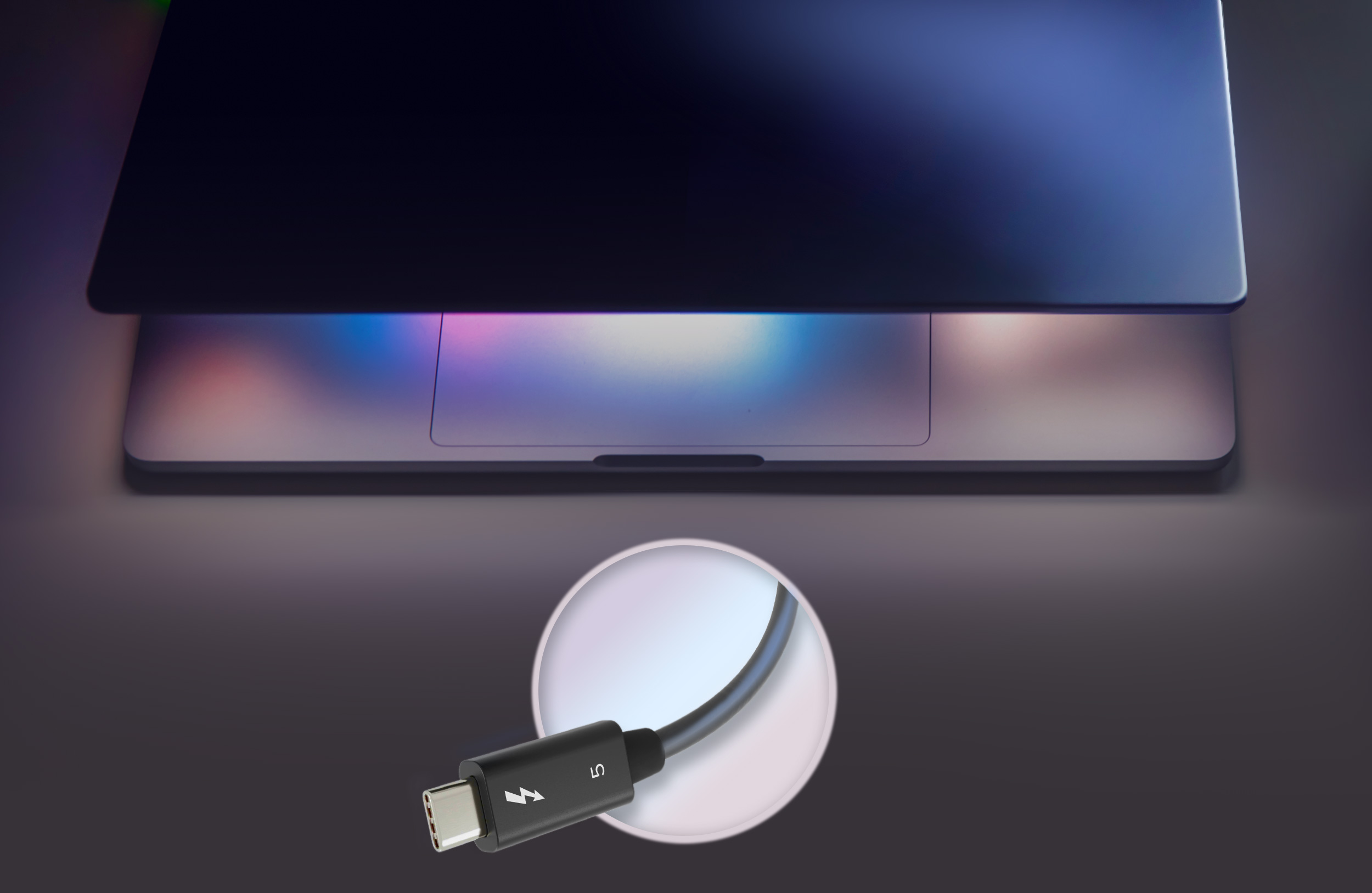

The included Thunderbolt cable delivers Thunderbolt 5’s full bandwidth and power delivery performance, and is compatible with Thunderbolt 5, 4, and 3, and USB4 computers. A provided ThunderLok connector lock helps prevent accidental disconnections from the SuperDock.

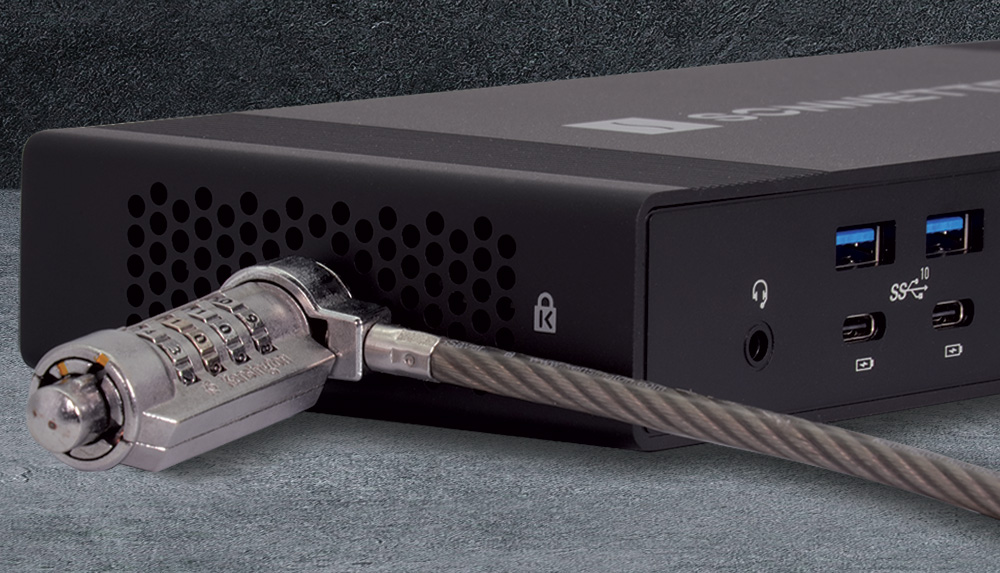

With up to 8TB of valuable data inside, you can secure the Echo dock with a Kensington Lock (sold separately). The dock is compatible with Standard, MicroSaver, and MicroSaver 2 locks.
