Twin10G SFP+ (Thunderbolt 2 Edition)
Twin10G SFP+

Twin10G SFP+ (Thunderbolt 2 Edition)

Dual-port SFP+ 10 Gigabit Ethernet Thunderbolt 2 Adapter

Lightninig-fast 10GbE Connectivity Over Thunderbolt 2 for Mac, Windows, and Linux Computers

Do you need a simple and cost-effective way to connect your computer to a high-speed 10 Gigabit Ethernet (10GbE) network? By offering ten times the performance of Gigabit Ethernet and more bandwidth over shared networks, and by supporting specialized applications such as using high-performance shared storage systems for editing HD video, it’s no wonder that 10 Gigabit Ethernet use has skyrocketed—the problem is that the vast majority of computers don’t include a native connection. Sonnet’s Twin10G SFP+ 10GbE adapter is the powerfully simple solution for you to add lightning fast 10 Gigabit Ethernet network connectivity to any Mac® with Thunderbolt 2 or Thunderbolt ports, or any Windows® PC or Linux® computer with a Thunderbolt 2 port.

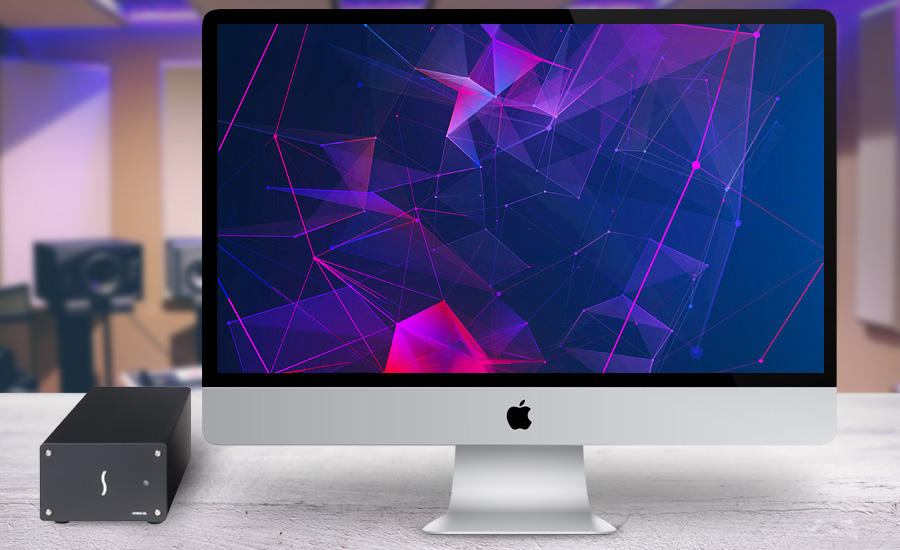

Twin10G SFP+ with iMac

Flexibility of SFP+ Transceiver Choices

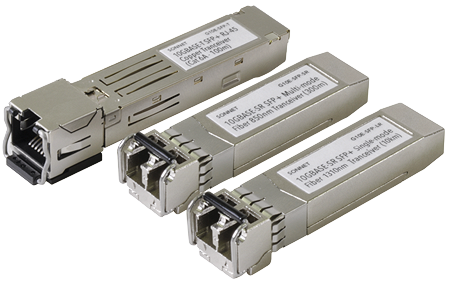

Sonnet offers three SFP+ transceiver options (sold separately)—a short-range multi-mode fiber module (up to 300 meters), part number G10E-SFP-SR; a long-range single-mode fiber module (up to 10 kilometers), part number G10E-SFP-LR; and a 10GBASE-T copper module, part number G10E-SFP-T (Cat 6A cable up to 30 meters). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 10 meters long (sold separately).

More Bandwidth

Equipped with two SFP+ sockets, the Twin10G SFP+ (Thunderbolt 2 Edition) adapter supports ten times the performance of Gigabit Ethernet and more bandwidth over shared networks.

Key Features

10GbE Icon

Adds High-performance 10GbE SFP+ Connectivity

Simply powerful way to add dual SFP+ connections to your computer with Thunderbolt 2 ports.

Connection Icon

Connection Flexibility

Your choice of connections (sold separately): short-range or long-range SFP+ transceivers, 10GBASE-T SFP+ transceivers, or SFP+ direct-attach Twinax copper cables.

Tools Icon

Easy Setup

Configure the adapter's settings using operating system tools.

20Gpbs Icon

20Gbps Thunderbolt 2 Interface

Full Thunderbolt 2 performance; backward compatible with 10Gbps Thunderbolt.

Thunderbolt 2 Ports Icon

Two Thunderbolt 2 Ports

One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.

Rugged Icon

Small. Rugged. Quiet.

Rugged aluminum enclosure is compact enough to sit on most any work surface, and quiet enough for use in noise-sensitive environments.

Transparent Failover Icon

Supports Transparent Failover

Keeps your computer connected in case a single cable is disconnected or one of the ports fails.

Link Aggregation Icon

Supports Link Aggregation (Teaming)

Increases throughput beyond what a single connection can sustain.(1)

Power Icon

Power for Peripherals

Provides up to 10W of power to connected peripherals.

Free Lifetime Tech Support

Free Lifetime Tech Support

Sonnet was established in Irvine, California in 1986. Since then, we’ve pioneered and brought to market many innovative and award-winning products that enhance the performance and connectivity of Mac, Windows, and other industry-standard computers. Many of our employees (including engineers) have been with the company for more than 20 years (some have been here since the beginning). We have a wealth of knowledge about our current and past products. Should you ever need technical support on one of our products, contact us; we’ll be around to help you.

Twin10G (Thunderbolt 3) Icon

Small and Quiet

Measuring just 4 inches wide, by 8.25 inches long, x 2.75 inches high, the Twin10G SFP+ is small enough to easily fit in most workspaces. To ensure its operation doesn’t get in the way, the adapter’s temperature-controlled, variable-speed fan keeps the device running cool and whisper-quiet at all times, making it suitable for use in noise-sensitive environments.

Simple Setup

Simply connect the Twin10G SFP+ (Thunderbolt 2 Edition) adapter to your computer via the included Thunderbolt 2 cable, download and install a driver, install SFP+ module(s) (sold separately), connect the adapter to the network switch or to 10GbE-enabled storage, and configure the adapter’s settings through the macOS® Network control panel, Windows Device Manager, or Linux command line (or graphical utility).

Setup Icons

Smart Performance

This Sonnet adapter’s increased throughput performance and low host-CPU utilization are achieved with functions such as flow control support, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading, enabling your computer to perform better while large files transfers or high I/O operations take place. With its dual ports, the Sonnet adapter supports transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails, and it also supports link aggregation (teaming)(1) for increased throughput!

Smart Performance Icon
Thunderbolt 2 Port

20Gbps Thunderbolt 2 Interface

The Twin10G SFP+ features a dual-port 20Gbps Thunderbolt 2 interface that offers ample bandwidth to support the adapter’s high performance, supports daisy-chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer, and includes support for connecting a 4K video monitor. The Twin10G is also compatible with older Mac computers with 10Gbps Thunderbolt.

Thunderbolt 2 Cable with ThunderLok

Included at No Extra Charge

Thunderbolt 2 Cable. ThunderLok.

Sonnet includes a 1-meter Thunderbolt 2 cable and a Sonnet ThunderLok Thunderbolt connector retainer clip(2) to prevent accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.

ThunderLok Connection

Why Choose Sonnet for 10Gb Ethernet Networking?

10 Gigabit Ethernet Family Banner
  • One Provider – Every 10GbE Option
  • Single- and Dual-port 10GbE Adapters
  • SFP+ (Optical) Adapters
  • Thunderbolt and PCIe Card Adapter Options
  • Adapters for both Thunderbolt 2 and Thunderbolt 3 Computers
  • We are 10Gb Ethernet Experts

10GbE Ethernet Networking Products Comparison Chart

Thunderbolt 3 and Thunderbolt 2 Adapters • PCIe Cards

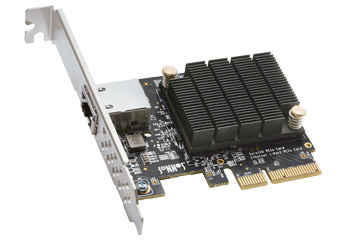

Solo10G PCIe Card

Solo10G PCIe Card

Learn More

Interface(s)

  • RJ45 port

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Aquantia AQC107S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10, 8, 7
  • Server 2016, 2012

Linux, FreeBSD, VMware

  • Linux
Solo10G SFP+ PCIe Card

Solo10G SFP+ PCIe Card

Learn More

Interface(s)

  • SFP+ Socket

10G Support

  • SFP+ SR Module Included

5G/2.5G Support

-

Controller

  • Aquantia AQC100S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10, 8, 7
  • Server 2016, 2012

Linux, FreeBSD, VMware

  • Linux
Presto 10GbE PCIe Card

Presto 10GbE PCIe Card

Learn More

Interface(s)

  • 2 x RJ45 port

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Intel x550

macOS §

  • macOS 10.8.5+

Windows

  • Windows 10, 8, 7
  • Server 2016, 2012, 2008 R2

Linux, FreeBSD, VMware

  • Linux
  • FreeBSD
  • VMware
Presto 10GbE SFP+ PCIe Card

Presto 10GbE SFP+ PCIe Card

Learn More

Interface(s)

  • 2x SFP+ Sockets

10G Support

  • SFP+ Module*

5G/2.5G Support

-

Controller

  • Intel 82599

macOS §

  • macOS 10.8.5+

Windows

  • Windows 10, 8, 7
  • Server 2016, 2012, 2008 R2

Linux, FreeBSD, VMware

  • Linux
  • FreeBSD
  • VMware
Solo10G (Thunderbolt 2 Edition)

Solo10G (Thunderbolt 2 Edition)

Learn More

Interface(s)

  • RJ45 port

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Aquantia AQC107S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+

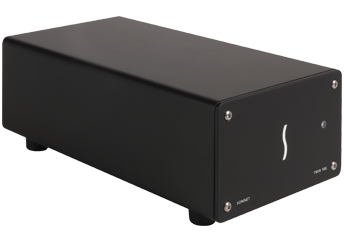

Twin10G (Thunderbolt 2 Edition)

Twin10G (Thunderbolt 2 Edition)

Learn More

Interface(s)

  • 2 x RJ45 ports

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Intel x550

macOS §

  • macOS 10.8.5+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+
  • VMware

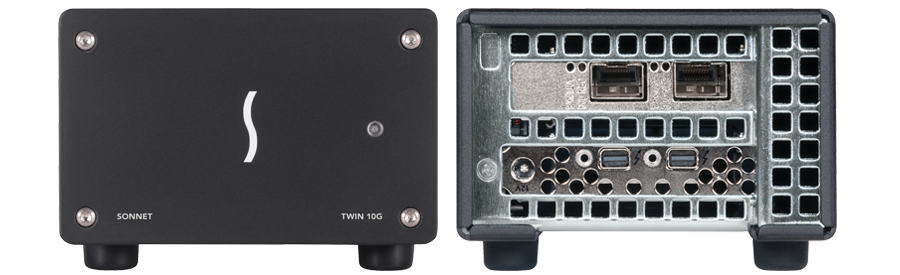

Twin10G SFP+ (Thunderbolt 2 Edition)

Twin10G SFP+ (Thunderbolt 2 Edition)

Learn More

Interface(s)

  • 2x SFP+ Sockets

10G Support

  • SFP+ module*

5G/2.5G Support

-

Controller

  • Intel 82599

macOS §

  • macOS 10.8.5+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+
  • VMware
Solo10G (Thunderbolt 3 Edition)

Solo10G (Thunderbolt 3 Edition)

Learn More

Interface(s)

  • RJ45 port

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Aquantia AQC107S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+
Solo10G SFP+ (Thunderbolt 3 Edition)

Solo10G SFP+ (Thunderbolt 3 Edition)

Learn More

Interface(s)

  • SFP+ Socket

10G Support

  • SFP+ SR Module Included

5G/2.5G Support

-

Controller

  • Aquantia AQC100S

macOS §

  • macOS 10.13.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD, VMware

  • Linux Kernel 5.0+
Twin10G (Thunderbolt 3 Edition)

Twin10G (Thunderbolt 3 Edition)

Learn More

Interface(s)

  • 2x RJ45 ports

10G Support

  • Cat 6A (100m)
  • Cat 6 (55m)

5G/2.5G Support

  • Cat 5e (100m)

Controller

  • Intel x550

macOS §

  • macOS 10.12.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD

  • Linux Kernel 5.0+
Twin10G SFP+ (Thunderbolt 3 Edition)

Twin10G SFP+ (Thunderbolt 3 Edition)

Learn More

Interface(s)

  • 2x SFP+ slots

10G Support

  • SFP+ Module*

5G/2.5G Support

-

Controller

  • Intel 82599

macOS  §

  • macOS 10.12.6+

Windows

  • Windows 10 (64-bit edition)

Linux, FreeBSD

  • Linux Kernel 5.0+
* 10GBASE-SR, 10GBASE-LR or 10GBASE-T SFP+ transceiver(s), or SFP+ cable(s) required, sold separately.
† 5Gb/s and 2.5Gb/s speeds supported when used with NBASE-T compatible (multi-Gigabit) switches.
‡ Intel X550 supports NBASE-T only under Windows and Linux. A firmware update may be required.
§ All products listed here are macOS Mojave compatible. Sonnet recommends macOS 10.13.6+ when connecting via SMB protocol.
‖ VMWare supported in conjunction with Mac Pro 5,1.
See Tech Specs for footnotes.
Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
